Copper Refnet Joints Branch Piping Kits for Midea VRF

Price:

USD 5.30-30.50 / Set

Min.Order Quantity:

500 Set/Sets

Supply Ability:

50 Metric per Ton/Metric

Port:

Shanghai or Ningbo

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: Inner plastic bags then in carton to pallet or as per customers' requirements
Delivery Detail: --

Specifications

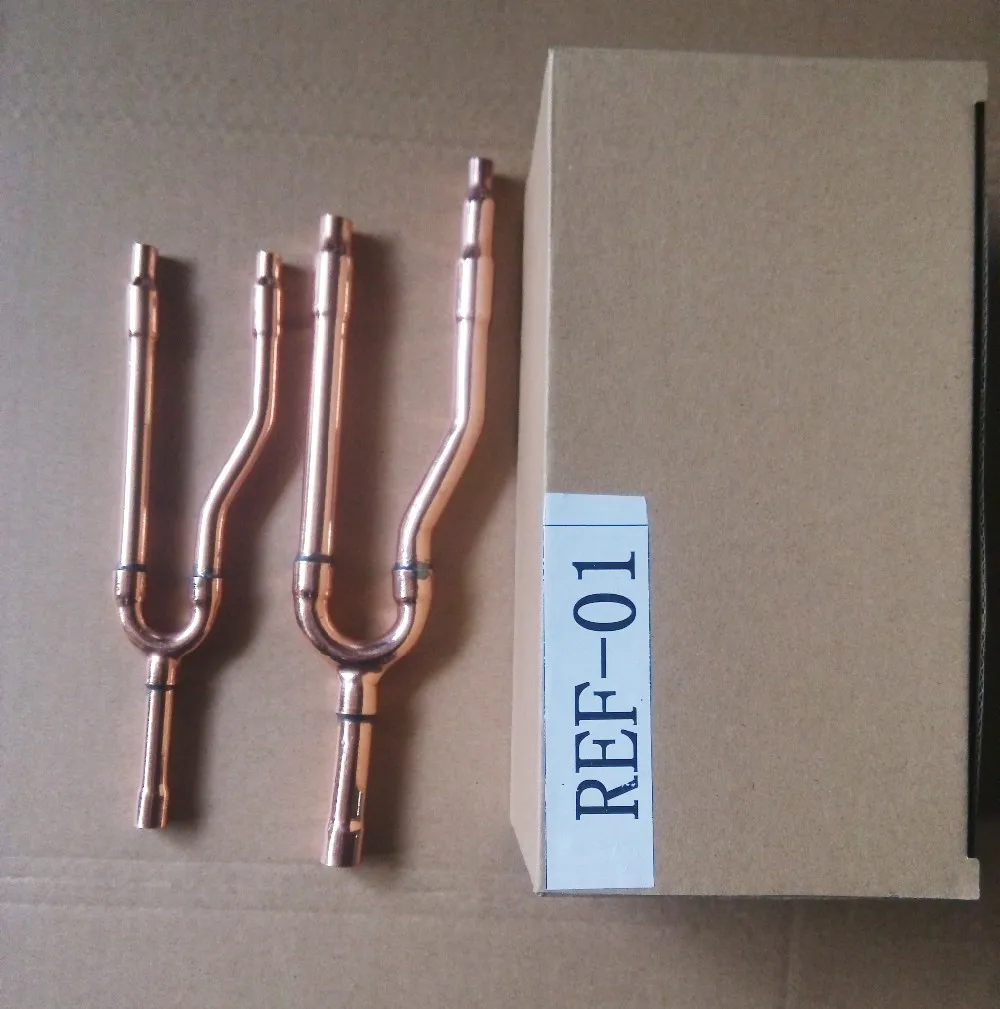

Copper Refnet Joints Branch Piping Kits for Midea VRF

Copper Pipe Joint Kit for VRF Air Conditioning Systems

Copper Branch Pipe/ Y Joint/ Refnet Pipe for Midea VRF System

Types for DAKIN, HITACHI, TOSHIBA, MIDEA, FUJITSU, MITSUBISHI, GREE, YORK, MCQVAY etc. are available, designed and manufactured according to diameter of original pipes, but distributing coupling were optimized, especially the Tee Parts, which have highly guaranteed smoothness of refrigerant flows....

Features of Shield Brand Refnet Joints Copper Pipes:

1, Raw materials: Copper pipe for R410A with high density& pressure and advanced workmanship;

2, Silver brazing with special designed soldering material & Aided welding for inner space, which have guaranteed disperse pipe with durability and no leakage;

3, Shape dimension has optimized from old ones: especially for TEE parts which has assured the influency of refrigerant; Besides, the improvement of pipe has greatly inreased cost performance;

4, Scrupulous quality control, inspection of raw material, semi-finished products & finished products each pipe has to proceed 6.5MPa pressure test before package. Surface treatment is among No. 1s in domestic

Diameters of Shield Brand Refnet Joints for Midea VRF:

Type		A	B	C
MD-BY51	*Gas pipe*	15.9/19.1/22.3	19.1/15.9/12.7/9.6	19.1/15.9/12.7/9.6
MD-BY51	*Liquid pipe*	9.52/12.7/15.9	12.7/9.6/6.4	12.7/9.6/6.4
MD-BY101	*Gas pipe*	25.4/28.7/31.8	28.7/25.4/19.1/15.9	25.4/19.1/15.9/12.7/9.6
MD-BY101	*Liquid pipe*	9.6/12.7/15.9	12.7/9.6/6.4	12.7/9.6/6.4
MD-BY201	*Gas pipe*	31.8/38.1	38.1	31.8/25.4/19.1/15.9/12.7
MD-BY201	*Liquid pipe*	15.9/19.1	19.1/15.9/12.7/9.6	15.9/12.7/9.6/6.4
MD-BY102	*Gas pipe*	38.1	38.1/28.7/19.1	38.1/28.7/19.1
MD-BY102	*Liquid pipe*	19.1	19.1/12.7/9.6	19.1/12.7/9.6
MD-BY103	*Gas pipe*	44.5	44.5/38.1/28.7/19.1	44.5/38.1/28.7/19.1
MD-BY103	*Liquid pipe*	22.3	22.3/19.1/12.7/9.6	22.3/19.1/12.7/9.6
MD-BY104	*Gas pipe*	54	38.1/28.6/19.1	38.1/28.6/19.1
MD-BY104	*Liquid pipe*	25.4	19.1/12.7/9.6	19.1/12.7/9.6
FQZHN-01	*Gas pipe*	12.7/15.9/19.1	12.7/15.9	12.7/15.9
FQZHN-01	*Liquid pipe*	9.6/12.7	6.35/9.6	6.35/9.6
FQZHN-02	*Gas pipe*	22.3/19.1	15.9/19.1	12.7/15.9
FQZHN-02	*Liquid pipe*	9.6/12.7	6.35/9.6	6.35/9.6
FQZHN-03	*Gas pipe*	22.3/25.4/28.6/32	15.9/19.1/25.4	12.7/15.9/19.1
FQZHN-03	*Liquid pipe*	12.7/15.9	9.6/12.7	6.35/9.6/12.7
FQZHN-04	*Gas pipe*	28.6/31.8/38.1	25.4/28.6/31.8	15.9/19.1/25.4
FQZHN-04	*Liquid pipe*	15.9/19.1	12.7/15.9/19.1	9.6/12.7/15.9
FQZHN-05	*Gas pipe*	44.5/54	38.6/42	35/38.6/42
	*Liquid pipe*	25.4	19.1	19.1
	*Fittings*	*Two fittings for chosing*

Workshop of Shield Brand Refnet Joints for Midea VRF:

Zhuji Shentong Machinery & Electric Industrial Co., Ltd was established in 1995, it has been devoting to design, research and manufacture of pipe fittings applied to HAVC & R equipment and building engineering ever since, like Vibration Absorbers, Refnet Joints, Copper & Brass Fittings and Vibration Isolation products.
Shentong has advanced laboratories and professional R&D team, it provides customers with excellent quality products as well as best solutions.

Range of Products:
Standard Vibration Absorber; Vibration Absorber for Auto Air Conditioner, Locomotive Air Conditioner, Precision Air Conditioning and Transport Refrigerator etc.; Supercritical Carbon Dioxide CO2 Vibration Absorber.
Vibration Absorbers are designed to be installed in the suction and discharge lines of air conditioning and refrigeration systems to reduce vibration in the transmission of compressor-induced vibration through tubing.
Flexible Stainless Steel pipes of ordinary, high and extra high pressure are applied to refrigeration inspection equipment, refrigerant charging devices, special air conditioning, special vehicle, ship, aviation, petrochemical engineering, pump and etc.
They can be applied to all kinds of refrigerant, oil, gas and water. Customized items are available in terms of length, diameter, materials and connections.

Refnet Joint Kits for VRF VRV Air Conditioning System: most models of joints are available, PE insulation is provided if needed.
Other Refrigeration Fittings like Brass Distributor, Sight Glass, Check Valve, Filter Drier, Co2 Filter and etc.
Copper and Brass Fittings like Elbow, Coupling, U Bend, Reducer, Tee and etc. Their sizes are available both in metric and inches.
Vibration Isolation Products like Spring Hangers, Housed Spring Damper, Rubber Fix-It Foot and etc.

Shentong has big market shares for vibration absorbers in domestic. Vibration absorbers and other items are also export to almost of countries and regions worldwide.
