9.52mm Fin Die: 9.52mmX12Rx1P, 25.4mmx22mm

9.52mm Fin Die: 9.52mmX12Rx1P, 25.4mmx22mm

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set

Supply Ability:

10 Set per Month

Port:

Shanghai

Place of Origin:

China

Payment Terms:

L/C, T/T

Brand:

Toneast

Products Model:

FDTC-952

Products Details
Company Profile

Quick Details

Brand Name: Toneast

Model Number: FDTC-952

Place of Origin: China

Packaging & Delivery

Packaging Details: Plywood package for sea delivery
Delivery Detail: 45 days

Specifications

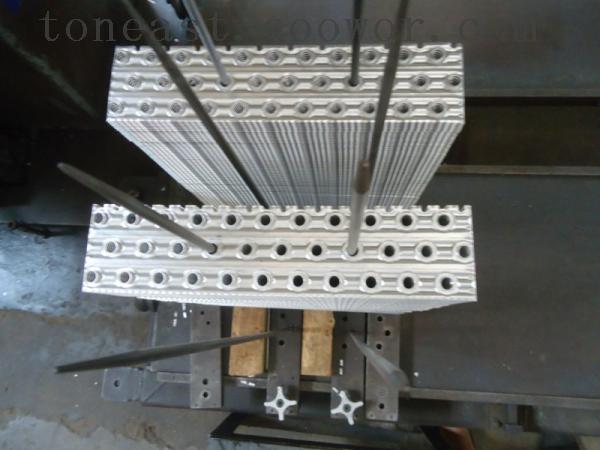

For heat exchangers, 9.52mm (3/8″) is quite common as ODU, and typical pattern would be louver, sinewave or V waffle. It’s a balance between heat exchance efficiency and cost of material. Depending on the application, the collar height FPI can vary from 3 to 14. We are shipping globally for this tool as we can provide service coverage too.

Our team can take care of the fin die request from designing, building, trying to commissioning around the globe. Please feel free to send inquiry to gorden@toneast.com.

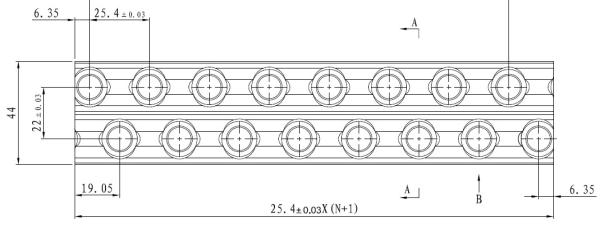

The most common spec would be: 9.52mmX12Rx1P, 25.4mmx22mm

Main Features:

Hole diameter: 9.85mm
Row Number: 12
Progression: 1
Hole pitch in same row: 25.4mm
Hole pitch between two rows: 22mm
Hole layout pattern: Staggered
Fin material: Aluminum H22 or O temper
Material thickness: ALU 0.105mm~0.24mm
Material width: 275mm
Collar height (FPI): ALU T=0.115mm, H=4~12FPI
Row cutter: plain
Collar base: yes

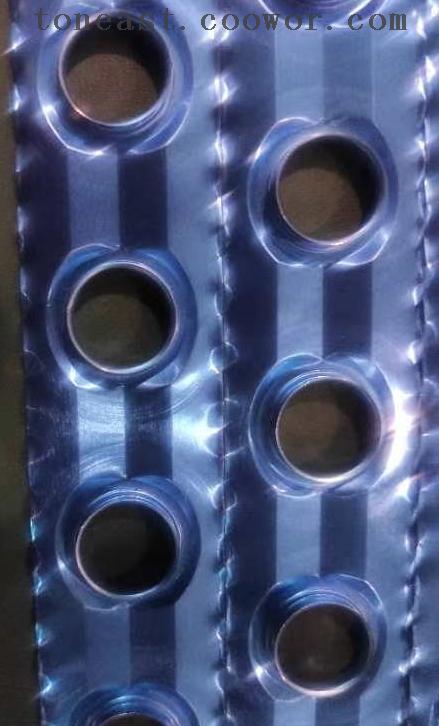

Fin surface: V waffle
Side trimming: Plain

Toneast LLC is based in Wuxi, a city ranking among top 10 of the Most GDP Cities in China, and the famous tooling hub with profound precision machining capabilities. Bullet-train CRH railway is connecting us to every city of China, and Huning Express way is among the busiest expressway in China.

Typical export port would be either Shanghai or Ningbo as we are only 2 hours to Shanghai by road and 3 hours to Ningbo. We also have an International Airport here: Wuxi Sunan Shuofang Airport (WUX). The airport has routine flight to Japan, Thailand, Korea, Vietnam, etc. Depending on customer’s choice, we can comply for choosing suitable port for shipment.

It is a long experience for us to supply different kinds of machines and tools for the industries, especially for the manufacturers of HVAC industry. Whenever the heat exchanger manufacturers need a new fin production line, we would be ready to fit in.

To add modern featurs to cold chain manufacturers for different applications, we also developed a new solution for Cold Chain Monitoring, using the IoT technology to monitor the temperature change all through the time and process. It would be perfect for logistics industry and pharmarcy manufactures, to name some.
