Swimming Pool Constant Temperature Heating with Capillary Tube Mats

FOB Price:

Get Latest Price

Min.Order Quantity:

10 Square Meter

Supply Ability:

100000 Square Meter per Day

Port:

Tianjin Seaport

Place of Origin:

China

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, Credit Card, PayPal

Brand:

Products Model:

20mm

Products Details
Company Profile

Quick Details

Brand Name: SL

Model Number: 20mm

Place of Origin: China

Packaging & Delivery

Packaging Details: carton box
Delivery Detail: 5 days for ready goods

Specifications

Swimming Pool Constant Temperature Heating Capillary Tube Mats

General Introduction:

The Sinolanc capillary mats system for heating and cooling was invented in Germany and it has been successfully used for more than 25 years in Western European countries and all over the world. The capillary tube mats have received widespread recognition as an energy-efficient system which ensures lower operational costs and a higher level of comfort, compared to traditional heating and cooling systems.

To heat or cool rooms, hot or cold water runs through the sinolanc capillary tube mats system to exchange heat with the space air by radiation. They ensure a quick dissipation of the cooling load or a quick supply of the heat requirement. Due to the large exchange surfaces, large energy quantities can be transmitted with low temperature differences between the active room surface and the room air.

The advantages of capillary tube mats heating system compared with traditional heating system:

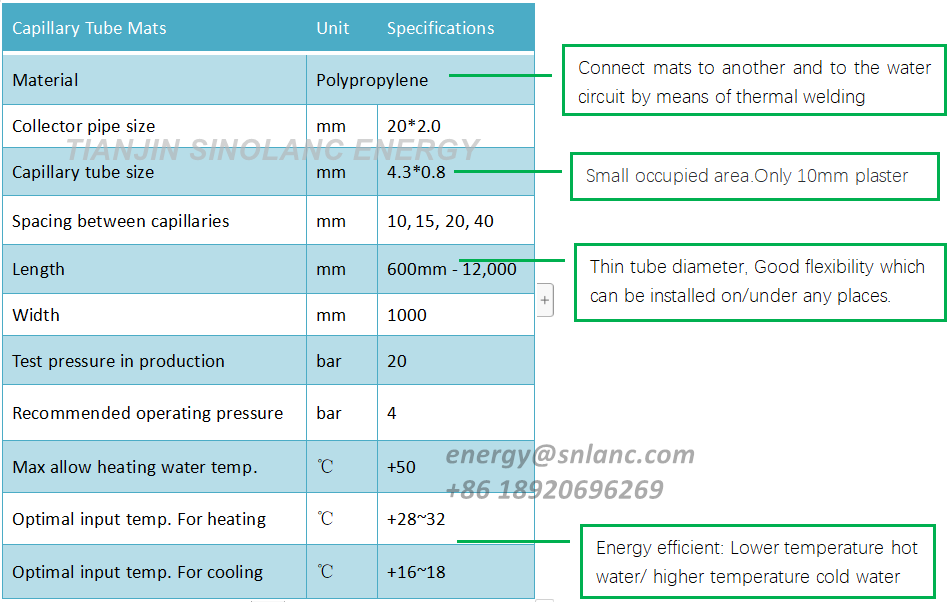

Capillary Tube Mats Technical Specifications:

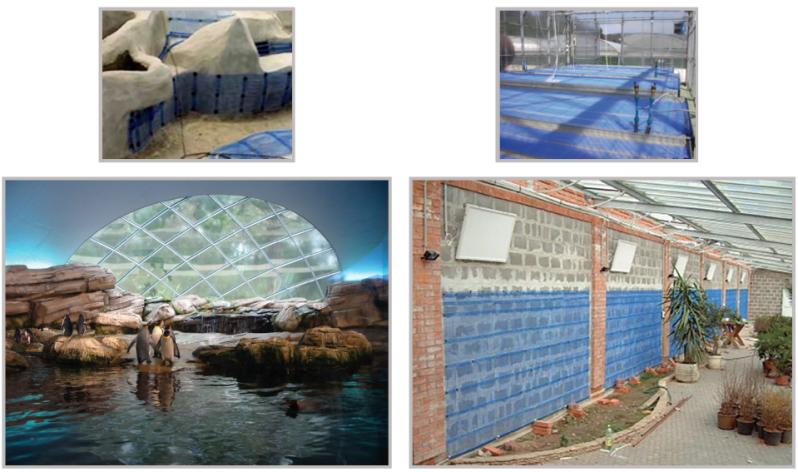

Application of Capillary Tube Mats

Ceiling with plaster – heating/cooling;
Metal ceiling panels – heating/cooling;
Ceilings with plasterboard finish – heating/cooling;
Incorporation of water capillary mats in concrete and reinforced concrete ceiling panels – heating/cooling;
Walls with plaster or plasterboard finish –heating/cooling;
Floor heating;
Groundwater geothermal collectors;
Non-standard use (use in greenhouses, swimming pools, various surface heating/cooling)

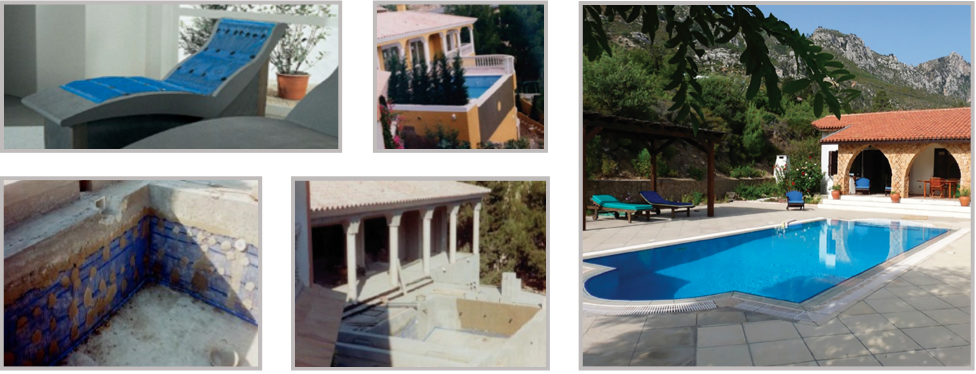

Capillary tube mats used for constant heating in swimming pools (installation into walls and the floors) and in relaxation chairs.

Packaging & Shipping

Our Services& Contact

We can provide you with below services for freely! Welcome to contact me!

1. Product quotation(sample order is acceptable);
2. Model selection and economic solution suggestion;
3. Technical or installation consulting;
4. Transportation proposals and freight quotation;
5. Any other professional advice and help;
6. 24hours on whatsapp for quick reply. +86 18920696269

If you would like a free no-obligation quotation on any future projects you have in mind then

please do not hesitate to get in touch with our sales team using the contact information below.

Capillary Tube Mats Advantages on Heating and Cooling System

Energy-saving:

For heating in winter, the input water temperature is around 28-32℃. Compared with the
45-60℃of common floor heating pipes and 70-80℃of the traditional heating radiator, the capillary tube mat system can save 20-40% energy. For cooling in summer, the input water temperature is around 16-18℃, which is much higher
than the 5-7℃of the common air conditioning system, which can help save 60-70% energy.

Space-saving:
The thickness of capillary tube mat installation is about 10mm; water filling weight is about 750g/m2.For example: For a 20-floor building with traditional central air conditioning, using capillary tube mat can save 2 floors space, which can form great economical benefits.

Energy Selection:
Capillary tube mat can work together with air source heat pump, water source heat pump,ground source heat pump, solar energy, etc.

Healthy & Comfortable:
Capillary tube mat realizes the heat exchange in a form of radiation. With great heat exchange surface area, capillary tube mat system has the features of no noise, no air flow, no bacterial overgrowth.

Easy Installation
The diameter of capillary tube mat is only 4.3mm. It can be hidden installed in-wall, groundand ceiling. It doesn’t take up space in the room, has little influence on house decoration andcan be easily installed.

Safe and Reliable
Each piece of capillary tube mat must pass the pressure test of 20 bar before delivery.With high quality, the using life of capillary tube mat is around 50 years. And the whole system can run steadily without maintenance with professional design and installation.

Extensive Application
Capillary tube mat not only can be used as the air conditioning terminal product and also can be used as energy collection terminal.
