About Capillary Tube Mats:

Capillary tube mat can be used for heating/cooling in the building to replace the conventional radiator heating and air conditioning systems. With the advantages of large exchange surface, uniform and constant heating, It also can be used in agricultural greenhouse. In addition, it can be embedded in the soil or installed in the tunnel as the energy collection device.

To heat or cool rooms, hot or cold water runs through the capillary tube mats system to exchange heat with the space air by radiation. They ensure a quick dissipation of the cooling load or a quick supply of the heat requirement. Due to the large exchange surfaces, large energy quantities can be transmitted with low temperature differences between the active room surface and the room air.

Capillary Mats Parameters

Application

 Ceiling with plaster – heating/cooling;

Metal ceiling panels – heating/cooling;

Ceilings with plasterboard finish – heating/cooling;

Incorporation of water capillary mats in concrete and reinforced concrete ceiling panels – heating/cooling;

Walls with plaster or plasterboard finish –heating/cooling;

Floor heating;

Groundwater geothermal collectors;

Non-standard use (use in greenhouses, swimming pools, various surface heating/cooling)

Raw material:

The capillary tube mats are made of original Borealis's pure and highly recyclable polypropylene granulate which is free from hazardous substances. Neither exhaust air nor waste water is produced, production residues are 100% recycled.

Workshop Production

Introduction of Germany the most advanced production line equipment. The exquisite welding technology ensures a very high quality standard and allow a long-term guarantee.

The further developed production equipment and strict quality control avoid the errors and achieve the high capacity of ten thousand sq.meters per day. The high production of the equipment ensures the timeliness of the mass order.

Every single product is subjected to an intensive quality control before it leaves the company.

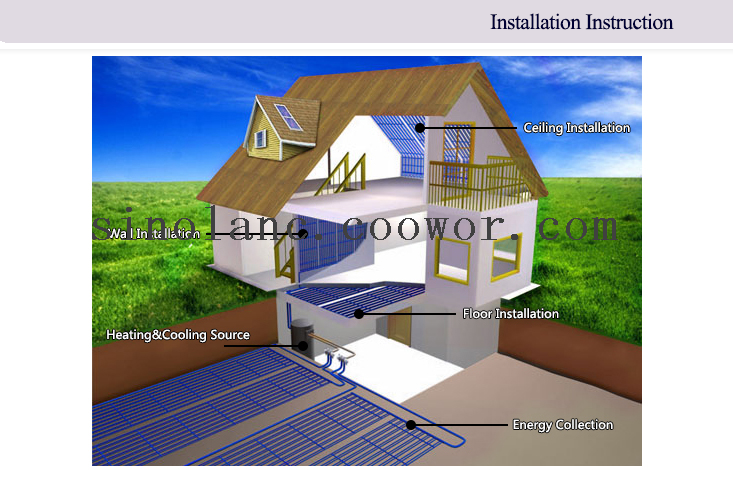

 Heating&Cooling System Installation

With the advantage of good flexibility,the capillary tube mats can be installed on roof, wall, floor, under the surface decorative materials. They used in new buildings and refurbishment of various types of buildings.

For cooling purposes, capillary tube mats are preferentially installed either in or on the ceilings.

They can be integrated into walls of various designs and used as wall heating and wall cooling.

Underfloor heating systems with capillary tube mats can be used for temperature control in all buildings. They are either integrated into an existing screed or laid directly on an existing floor as a thin-layer underfloor heating system and enable gentle temperature control of floor surfaces.
