Lined Ceramic Wear-Resistant Pipe

The lined ceramic wear-resistant pipe is a new type of wear-resistant pipe that uses a special process to firmly combine the ceramic and the metal pipe, and uses the high strength and high hardness of the wear-resistant ceramic to increase the wear resistance. It can greatly improve the service life of the pipeline.

• The coal will bring great impact to the equipment during transportation in the coal handing system of power station, so the alumina ceramic tiles s not available and they will fall of by large area.

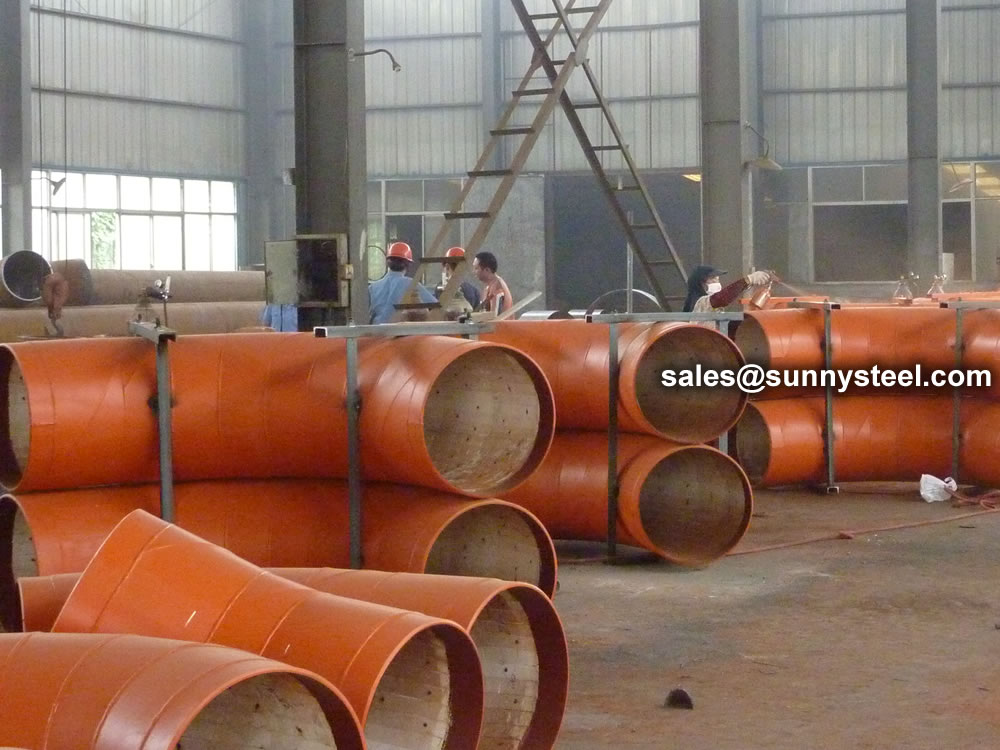

• The valve in the desulfurization system can change the follow during the switching process, sot he slurry with grain at high speed will wear out the pipe at the ends of valves. The liquid in the tube contains much sulfite which is very corrosive, so usually nonmetallic pipes like rubber tubes and PVC pipes are used to avoid corrosion, but the wear resistance of these tubes are poor that the straight pipe at the ends of valves always worn out. The alumina ceramic lined tube/elbow is one piece, the slurry couldn’t permeate through it, moreover, the alumina tube/elbow has high hardness and the process by isostatic pressing dry power is favorable to the uniformity of ceramic crystal structure, so its wear resistance is better than ceramic tiles with the same materials.
• The weakest place is the gap between each sticked tiles during material handing. The material grains not only wear the pipe but also have impact on it. This is why the pipelines lined by tiles are easily worn out and fallen off.
• The experiment shows that the service life of ceramic tube/elbow is at least 5 times longer than ceramic tiles of the same thickness.

The high alumina ceramics are installed onto the internal surface of the pipe properly by welding, pasting or inter-locking system. With the brilliant properties of resistance to wear, corrosion and heat, the pipe is widely used in materials handing of coal industry, electric power, metallurgy, mining and chemical industry and it is one ideal wear resistant pipe.

The most common applications of ceramic sleeve lined pipes

The combination of high rigidity of ceramic and high elasticity of steel gives the pipe unmatchable features as an abrasion resistant, heat resistant and corrosion resistant material for use in the fields of power generation, metallurgy, mining, and chemical industry etc. It has many advantages over steel pipes, cast stone pipes, and steel-plastic compound pipes.

For different production environments, our company has developed a wear-resistant pipe for a variety of media, based on the temperature, wear and corrosion requirements of the field media, and for the initial application of the scene, our company to provide wear-resistant ceramic ring for the Lined composite straight pipe design to meet the on-site wear resistance, heat resistance and corrosion resistance requirements, in view of this program for the new design (formerly ceramic chip technology, there are many gaps, easy to wear).

How long is your delivery time?

The delivery time of customized products is generally 25 35 days, and non customized products are generally shipped within 24 hours after payment.

What are your payment terms?

T/T 30% as the deposit,The balance payment is paid in full before shipment

What is your minimum order quantity?

There is no minimum order quantity requirement. Customized products are tailor made according to the drawings provided by the customer.

Do you provide samples? Is it free?

If the value of the sample is low, we will provide it for free, but the freight needs to be paid by the customer. But for some high value samples, we need to charge a fee.

What is the packaging and transportation form?

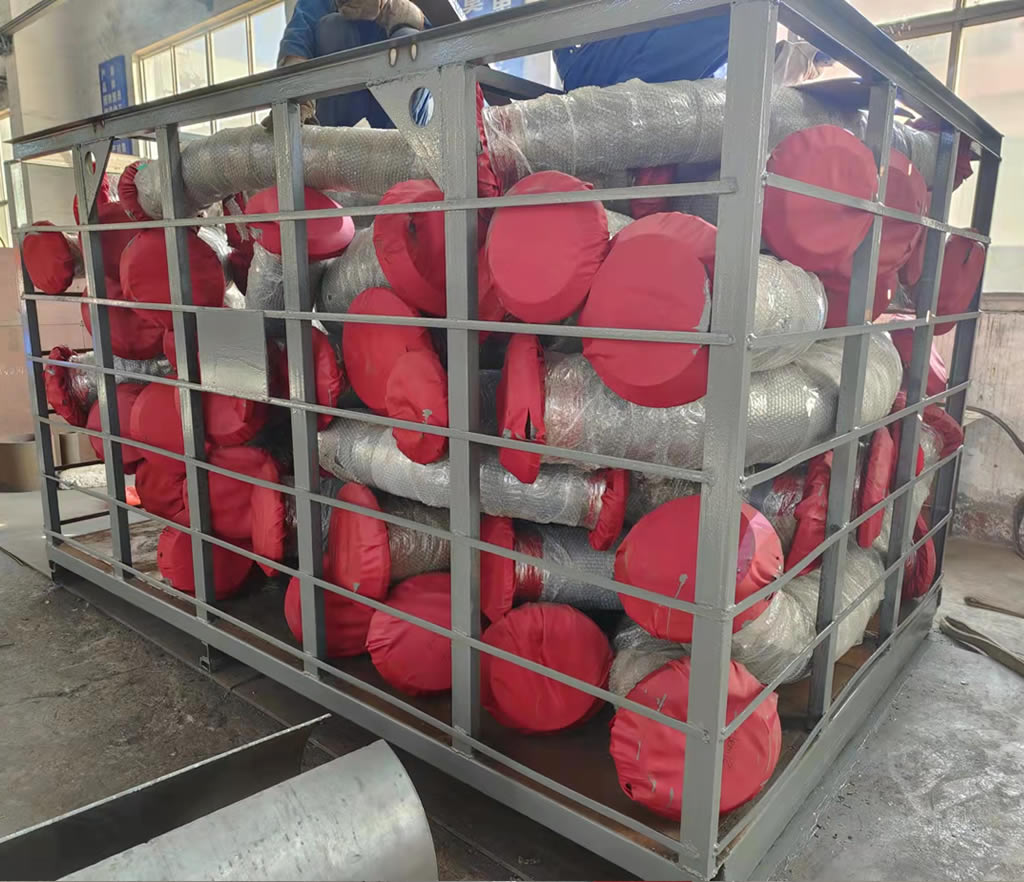

Non steaming wooden box and iron frame packaging. Special packaging is available according to customer needs. The transportation is mainly by sea.

Inspections

As part of our quality regimen, 100% of incoming raw materials, semi-finished products, as well as finished products are thoroughly inspected prior to being entered into our inventory. We have established multiple hold points throughout fabrication as well as a comprehensive final inspection for all products.
