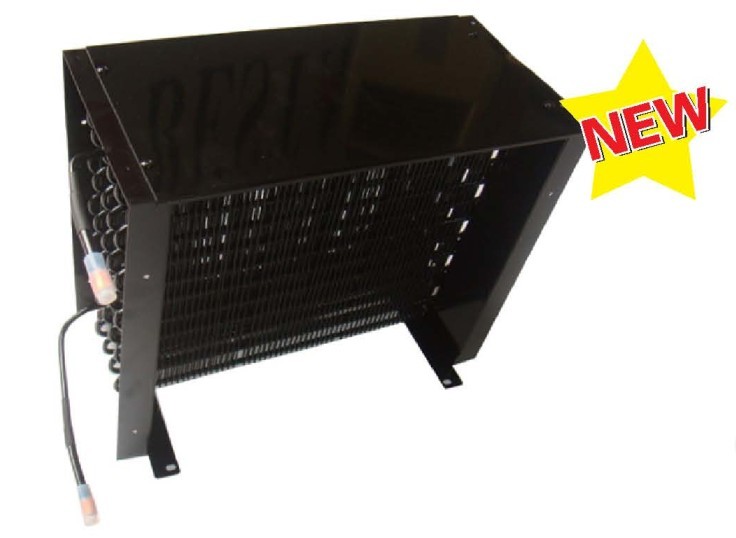

Professional Manufacturing Exquisite Workmanship Refrigerator Parts Bundy Tube Wire Condenser

Refrigerator Parts Bundy Tube Wire Condenser

Main Material:

1.Bundy Tube:φ4.76,φ6,φ6.35,φ8,φ9.52,Wall thickness 0.7mm

2.Low Carbon Steel Wire:φ1.0-1.6

3.Bracket:Steel Plate(SPCC),Thickness:0.6-1.5mm

Structure:

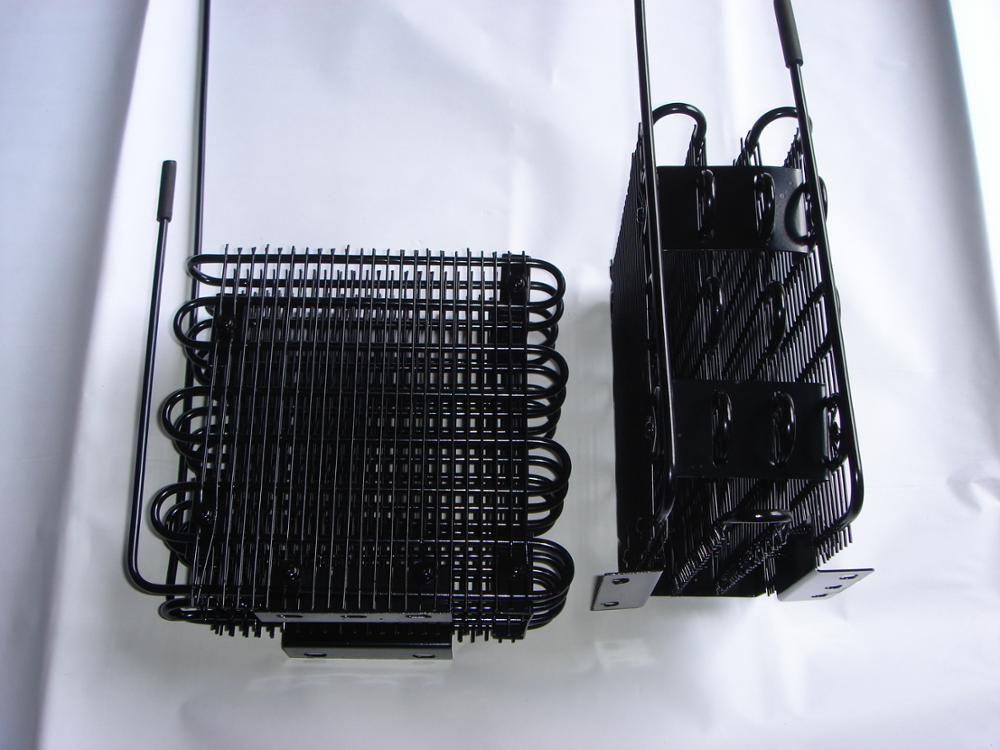

A.Flat type of wire on tube condenser used at the back

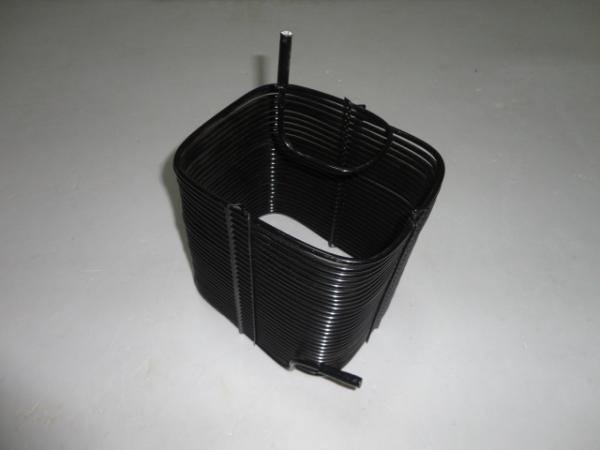

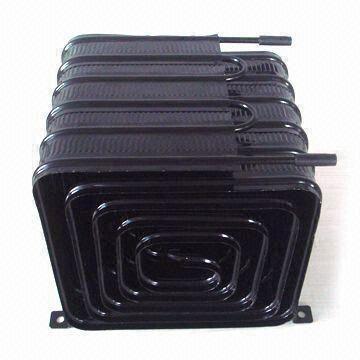

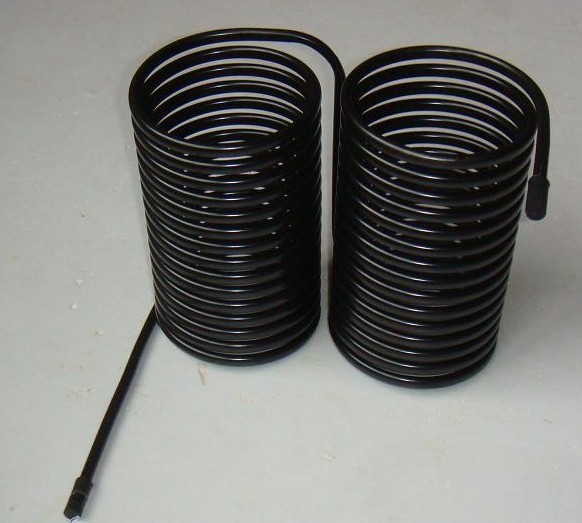

B.Bended or spiral type of wire on tube condenser used at the bottom
C.Wrapped type of tube condenser embed on plate

Main Production Process:Tube Bending,Welding,Fix the Bracket,Weld the suction tube,Leakage Test,Coating,Folding or bending shaping,Inspection,Package

Technical Ability:Wire Pitch≥5mm

We can produce according to the drawing or sample supplied by clients,also can help the clents design and produce different condensers

Specification of R134A Refrigerant

Residual moisture ≤18mg/m2

Residual impurity ≤28mg/m2

Residual mineral oil ≤7mg/m2

Residual chlorine ≤0.3mg/m2

Residual paraffin ≤0.2 mg/m2

Specification Of Coating

Coating thickness:    (1) thickness of zinc and varnish coating≥12 um

                                 (2) thickness of cathodic exectrophoresis coating ≥12 um

                                 (3)thickness of flat plate or tube power painting:30-100um

                                 (4)thickness of wire tube evaporator power painting:60-200um

Hardness of coating ≥2H

Impact of coating:50cm.kg/cm.no carck

Adhesion of coating: one grade

Flexibility of coating:Around R=3D Benden 180,no crack or no fall off

Color Tolerance of power coating:E ≤1.5

Corrosion resistant:     1. Cathodic electrophoresis coating≥96H

                                      2.. Cathodic electrophoresis coating ADD Power painting ≥240H

JINAN RETEK INDUSTRIES INC is a China manufacturer of refrigeration condenser , evaporator ,heat exchanger and copper driers in China .
We are cooperating with many refrigerator & freezer & heater factories . From year 2018 , we begin to develop 5G Base Station Radiator . Now we are supplying 5G station radiator to one famous mobile company . If you have any interest in our products , pls just send an email to us or call us .

we are supplie to Norway, Russia, Ukraine, Korea, Japan, Pakistan, India, Malaysia, Indonesia, Sri Lanka, Bangladesh, Saudi arabia, Lebanon, Syria, Turkey, Italy, Britain, Spain, Portugal, USA, Chile, Peru, Argentina, Brazil, Russia, Ukraine....for many years.

Please send me enquiry, I will send our competitive prices for your reference.

We can supply desgin and OEM  Service,  we have a professioan exporting and importing experience.
We can give you a full set of solution for importing and exportings.

Main Professional Exhibition :

We attend many many professional Fairs , such as Canton Fair , CRH , ARH (USA),CHILLVENTA(GREMANY) , MCE(ITALY) , FEBRAVA(BRAZIL)
