RC-4 can connect to PC easy operation data logger

FOB Price:

US 5-25 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Set/Sets per Month

Port:

NINGBO,SHANGHAI,etc

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,PAYPAL

Brand:

data logger ICEAGE

Products Model:

data logger RC-4

Products Details
Company Profile

Quick Details

Brand Name: data logger ICEAGE

Model Number: data logger RC-4

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: data logger packed in blister card
Delivery Detail: 7-35 days

Specifications

Company Information

ICEAGE was established in 2000 to supply equipments and spare parts for HVAC/R industry.

Over the past years, ICEAGE has earned its reputation as the leading supplier among customers

due to its experience, professionalism and integrity.

Certifications

Certificate we have

ISO 9001-2008
ISO 14001-2004
GB/T28001-2001
TS16949

Certificate in production

CE
RoHS
REACH declarition

Product Description

Application

RC-4 is temperature data logger and RC-4HA is temperature and humidity data logger.

External sensor optional and once connected to data logger, it could automatically switch to the

measuring of external sensor. When data logger is connected to PC, the software could automatically

upload data.

Main features

1. Auto detect temperature/humidity type of the products, auto upload data, easy operation.

2. Auto generate report, which could print directly or be sent by mail.

3. External sensor optional

Once connected

Auto switch to external sensor

Wider measuring range: -40 °C ~+85 °C .

4. Visualized upper computer software, easy operation.

5. LCD display, convenient for customers to view the data and working status on the site.

6. With the functions of start-up time delay

Temperature calibration

Serial number editable and °C and F switch.

Technology

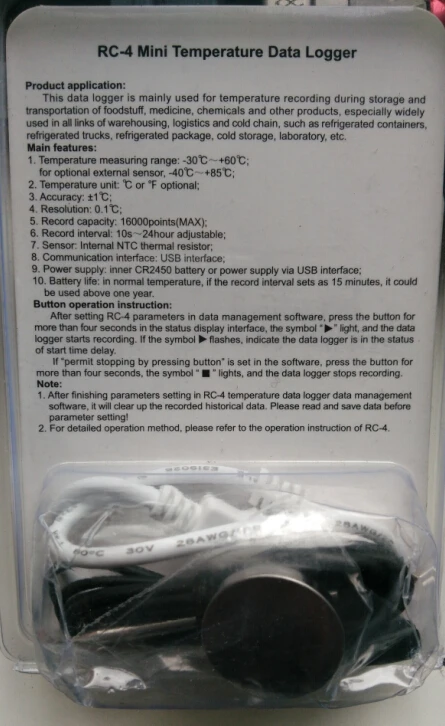

Technical parameters - RC 4 Data logger

Temperature measuring range	-40°C~+85°C
Storage environmental temperature	-40°C~+70°C
Accuracy	±0.6°C(-20~50°C )	±1.2°C(-40~-20°C ,51~-85°C )
Temperature Resolution	0.1°C
Humidity resolution	0.1%RH
Humidity accuracy	±3%RH(25 °C ,20~90%, others, ±5%)
Temperature Record capacity	RC-4 16000points(MAX)	RC-4HA 8000points(MAX)
Humidity Record capacity	RC-4HA 8000points(MAX)
Record interval	10s~24hour adjustable
Sensor	Internal NTC thermal resistor
Communication interface	USB interface
Power supply	inner CR2450 battery or power supplier via USB interface
Battery life	in normal temperature,if the record interval sets as 15 minutes
