Thermostatic Expansion Valve For Condensing Unit,Refrigeration Unit,Cooling Unit,Air Dryer

FOB Price:

US 13-14 / Set

Min.Order Quantity:

100 Set/Sets

Supply Ability:

10000 Set/Sets per Month

Port:

NINGBO

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

SANHENG

Products Model:

SRTX2

Products Details
Company Profile

Quick Details

Brand Name: SANHENG

Model Number: SRTX2

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Each products packed in one strong box, then packed in one master carton.then pallet packing.
Delivery Detail: WITHIN 3 WEEKS

Specifications

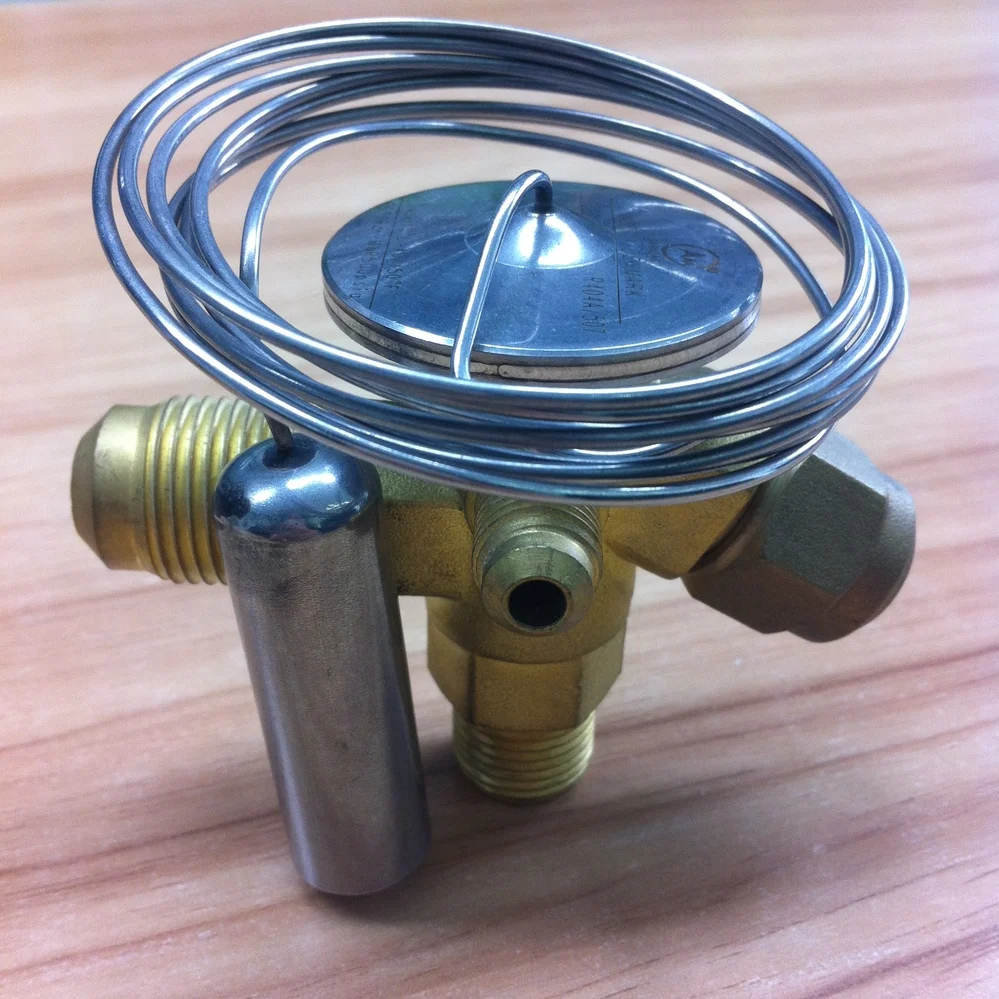

Thermostatic Expansion Valve For Condensing Unit

1.Interchangeable Orifice is easy to store and maintain

2.Wide range of evaporating Temperature

Product Introduction

Thermostatic expansion valve regulate the flow rate of refrigerant into evaporators according to its degree of superheat.

Both the internal equalizer and external equalizer systems are furnished, especially, the external equalizer type efficiently eliminates the influence resulted from the loss evaporator pressure.

Specification

Model	Equalization	Connection Type	Connection Inlet ×Outlet		Equalization connection	Capillary Length(m)
			inch	mm
SRT2	Internal	SAE Flare	3/8”×1/2”	10×12	1/4”(6mm)	1
SRTE2	External
SRHT2	Internal	ODF Solder
SRHTE2	External

Ordering Code ( A wide range of refrigerant for selection !!! )

Connection Type	Equalization	R12	R134A	R22	R404A/R507	R407C
SAE Flare	Internal	SRTF2	SRTN2	SRTX2	SRTS2	SRTZ2
SAE Flare	External	SRTEF2	SRTEN2	SRTEX2	SRTES2	SRTEZ2
ODF Solder	Internal	SRHTF2	SRHTN2	SRHTX2	SRHTS2	SRHTZ2
ODF Solder	External	SRHTEF2	SRHTEN2	SRHTEX2	SRHTES2	SRHTEZ2

Nominal Refrigerating Capacity (-40°C~+10°C)

Orifice Size	R22		R407C		R134a		R404A/R507
Orifice Size	TR	KW	TR	KW	TR	KW	TR	KW
0X	0.15	0.5	0.16	0.5	0.11	0.4	0.11	0.38
00	0.3	1.0	0.3	1.1	0.25	0.9	0.21	0.7
01	0.7	2.5	0.8	2.7	0.5	1.8	0.45	1.6
02	1.0	3.5	1.1	3.8	0.8	2.6	0.6	2.1
03	1.5	5.2	1.6	5.6	1.3	4.6	1.2	4.2
04	2.3	8.0	2.5	8.6	1.9	6.7	1.7	6.0
05	3.0	10.5	3.2	11.3	2.5	8.6	2.2	7.7
06	4.5	15.5	4.9	16.7	3.0	10.5	2.6	9.1

Remark: Nominal refrigerating capacity is based on the condensing temperature 32°C, evaporating temperature 5°C.

v Pay by T/T, LC

v Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse

paypal fee when you choose it

v Loading Port: ShangHai or NingBo, China

v Samples are available within 7-10 working days.

v Mass Production Delivery: 20 -50days after sample confirmation

Ningbo Sanheng Refrigeration Control Co., Ltd. is located in Ningbo City,China,after decades of development, has formed a set of automatic control components of refrigeration independent research and development, production, sales and import and export trade in the integrated company.
Our aim is to supply the most suitable refrigeration unit parts for refrigeration unit manufacturers and distributors.
We will continue to the purpose quality forever, service forever,credit standing forever, and work hard to become first-class automation components of refrigeration manufacturer.
