plasma cutter

FOB Price:

US 7,000-8,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1 Set/Sets per Month

Port:

shanghai,China

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union,MoneyGram

Brand:

SBKJ

Products Model:

SBPC-1250*3200

Products Details
Company Profile

Quick Details

Brand Name: SBKJ

Model Number: SBPC-1250*3200

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: plywood box
Delivery Detail: 30 working days

Specifications

Our Services

If you have any questiones, please feel free to contact me

Youtube: https://www.youtube.com/channel/UCu_31d7ID6hi9DOJ0n3BQwA

Packaging & Shipping

FAQ

Company Information

SBKJ SPIRAL TUBEFORMER is based in the Yangtze River Delta, nearby Shanghai,China. Our company is a national new high-tech enterprise which is specialized in the development and manufacture of machines,such as tube forming machines, plasma cutting machines, for the production of round ducting and fittings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2000 and ce. Our customers from more than 60 countries in the world.

SBKJ’s research and development is the cornerstone for our automatic tubeformers that produce a higher quality duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.

Our highly trained technicians will install and set up each SBKJ machine and train your personnel on all facets of the machine’s operation and maintenance.

We sincerely welcome both domestic and international friends to cooperate with us.

Product Description

Technical data:

Type	SBPC-1250×3100	SBPC-1250×5100	SBPC-1500×3100	SBPC-1500×5100
range	1250×3100	1250×5100	1550×3100	1550×5100
thickness(mm)	0.4-6mm	0.4-6mm	0.4-6mm	0.4-4mm
power	12Kw	12 Kw	12 Kw	12 Kw
weight(kg)	1200Kg	2000Kg	1500Kg	2300Kg
dimension	3800×1500×1200	5800×1500×1200	3800×1800×1200	5800×1800×1200

The frame is of a steel welded construction, with a vibration treated coil to reduce internal stress , thus the frame is of good quality. X axis adopts high precision line cycle guide ,Y axis adopts high precision line guide which reduces moving resistance ,X and Y axis have been installed with high precision equipment ,in order to guarantee two guide line tolerance of X axis less than 0.05mm and vertical tolerance of X and Y axis less than 0.05mm .The industrial operation system works in DOS either in English or Chinese ,,which can be changed easily .The maximum work-speed of X axis and Y axis is 8m/min.The industrial computer uses standard CNC language and can be programmed.

The plasma system is of two types :SBPC-2000 and SBPC-3100 .SBPC-5000 is fitted with a MITSUBISHI servomotor and SBPC-2000 adopts walking motor of good quality and reliability.

SBKJ- plasma cutting machine has a machinery height adjustment device ,The torch gun has a float device which can adjust the height of the gun according to the sheet’s level thus keeping the distance between the sheet and the gun constant.

Utilizing a stable gas valve for sheet discharge and gun floating to make the movement more stable and reliable.

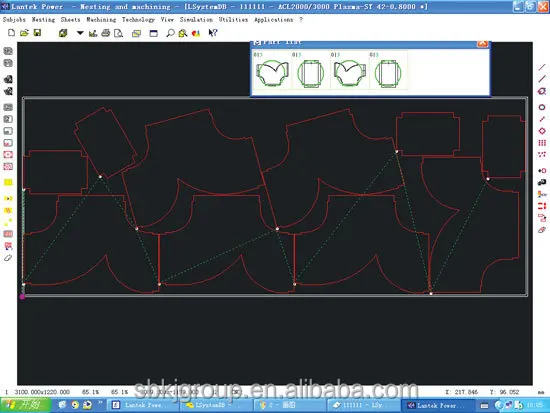

SBKJ plasma cutting machine system includes a upper main computer and a high efficient industrial computer control system .Upper main computer uses a DELL LCD and CPU utilizing lntel Petium (1GHz); The industrial computer control system utilizes a MISUBISHI servomotor system with industrial control software and a high clarity LCD .To connect them , a advanced communication system and composing software are used.

SBPC-2000 uses the Japanese PANASONIC plasma system,

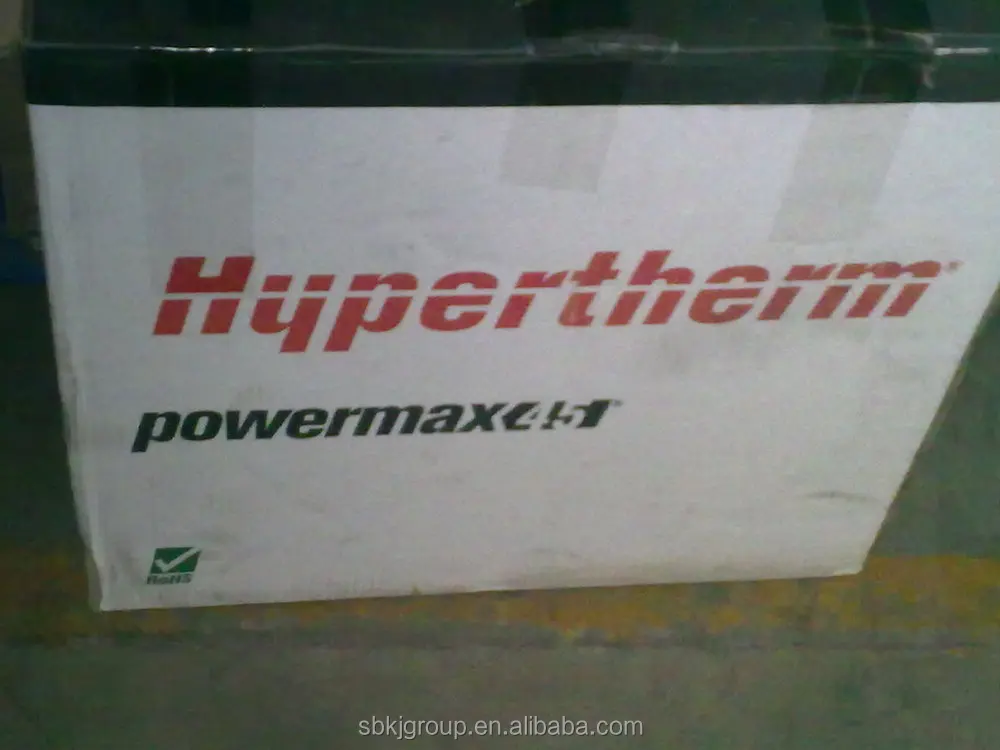

SBPC-3100 has American HUPERTHERM plasma unit.

SBKJ INC.is based in the Yangtze River Delta, nearby Shanghai,China. Our company is a national new high-tech enterprise which is specialized in the development and manufacture of machines,such as tube forming machines, plasma cutting machines, for the production of round ducting and fittings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2008 and ce. Our customers from more than 60 countries in the world.
SBKJ's research and development is the cornerstone for our automatic tubeformers that produce a higher quality duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.
Our highly trained technicians will install and set up each SBKJ machine and train your personnel on all facets of the machine's operation and maintenance.
We sincerely welcome both domestic and international friends to cooperate with us.

Basic Information

Business Type: Manufacturer
Main Products: spiral tubeformer;duct forming machine;elbow making machine; welding machine;ovalizer;aluminum duct forming machine;plasma sutter;flange forming machine;seam closing machine;automatic line;rectangular smart line;lockformer;folding machine;shearing machine;grooving machine;corner binding machine;run-out table;duct zipper;forming head;power slitting and beeling machine etc.
Location: Jiangsu, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU
Accepted Payment Currency: USD,RMB
Accepted Payment Type: L/C,T/T,Western Union,Cash
Nearest Port: shanghai port,lianyungang port,ningbo port
