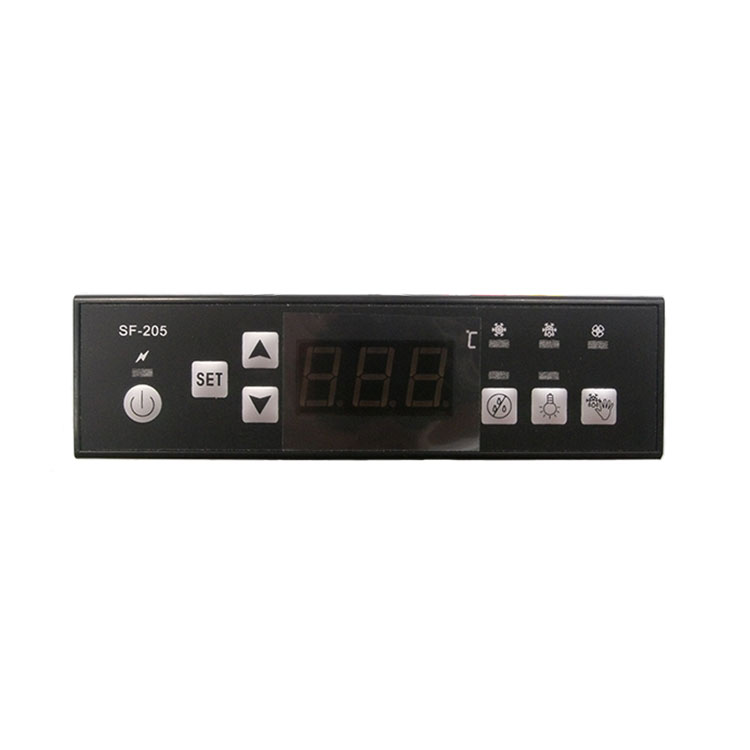

Cold Storage Freezer Temperature Controller with NTC Sensor Temperature Regulator SF-205

Cold Storage Freezer Temperature Controller with NTC Sensor Temperature Regulator SF-205

FOB Price:

Open price

Min.Order Quantity:

50 Twenty-Foot Container

Supply Ability:

200000 Twenty-Foot Container per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T

Brand:

Shangfang

Products Model:

SF-205

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: SF-205

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/standard export carton, carton size:48x28x39cm
Delivery Detail: 15 business days

Specifications

Model:SF-205 Temperature controller (CQC, RoHS approved)

Features of function:

It is an intelligent controller and applicable to the compressor of one HP.
Temperature display.
Temperature control.
Waterproof & hermetic.
Automatic defrost by electric heater or hot gas.
Time/temp. Setting to end defrosting.
Alarm for high / low temperature overrun.
Parameter locking.
Defogging control / Light control.

Technical data:

Temperature range:- 45 to 99^oC
Accuracy: ±1^oC
Sensor: NTC, 1pc
Power supply: 230VAC or 120VAC, 50 / 60Hz
Compressor: 30A / 250VAC
Light: 5A / 250VAC
Defogging: 10A / 250VAC
Evaporator fan: 5A / 250VAC
Heater: 10A / 250VAC
Dimension:142(L)×38(W)×35(D)mm
Mounting hole dimension: 137(L)×32(W)mm

Circuit Diagram

Transformer

Parameter Table

Code	Function	Set range	Default
E1	Lowest setpoint limit	-45 ^oC to Set temp.	-30 ^oC
E2	Highest setpoint limit	Set temp. to 50 ^oC	30 ^oC
E3	Temp.hysteresis	1 to 10 ^oC	4 ^oC
E4	Comp.start delay time	0 to 10Min	2Min
E5	Offset on room temp.	-10 to 10 ^oC	0
E6	Offset on evap.temp.	-10 to 10	0
F0	Defrost function	0=Electric heater 1=Hot gas	0
F1	Max.Defrost duration	1 to 60Min	20Min
F2	Defrost interval time	0 to 24Hr	6Hr
F3	Defrost termination temp.	0 to 50 to 0 ^oC	8 ^oC
F4	Display during defrost	0=Normal display 1=Last value before defrost	0
F5	Dripping time after defrost	0 to 10Min	2Min
H1	Fan start delay time	0 to 10Min	1Min
H2	Fan operating function	0=Parallel with comp.,close when defrosting 1=Continuous running except defrosting	1
H3	Fan control during defrosting.	0=always OFF 1=always ON	0
C2	High temperature alarm	C3 to 130 ^oC	40 ^oC
C3	Low temperature alarm	-45 ^oC to C2	-40 ^oC
C4	Alarm delay time	1 to 90 to 1Min	60Min

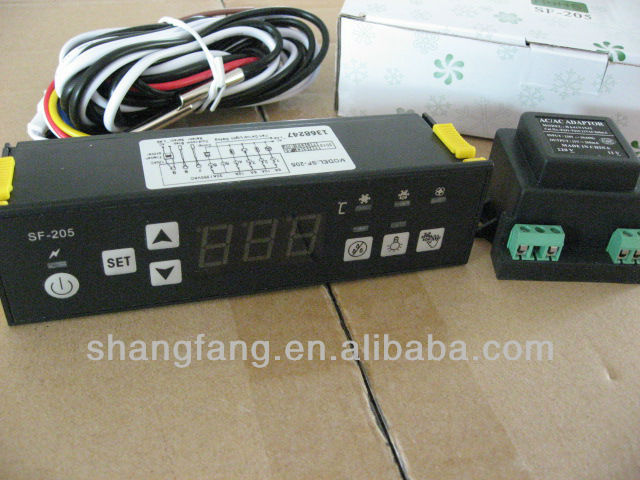

What included:

One PC205 Temperature

Two sensors

One attached transformer

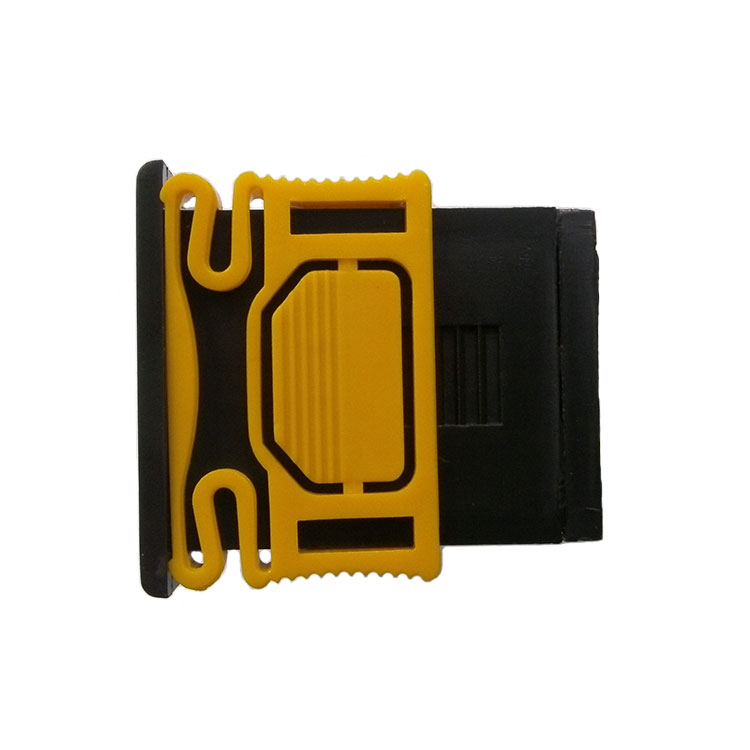

One installation stand
