The Newest Medical Freezer Control Thermostat SF-783

The Newest Medical Freezer Control Thermostat SF-783

FOB Price:

Open price

Min.Order Quantity:

50 Twenty-Foot Container

Supply Ability:

200000 Twenty-Foot Container per Month

Port:

zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C, T/T, Western Union

Brand:

shangfang

Products Model:

SF-783

Products Details
Company Profile

Quick Details

Brand Name: shangfang

Model Number: SF-783

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: standard export package
Delivery Detail: 15 business days

Specifications

We have 15 years experience producing temperature controller.Our products are well-known for their stable performance and durability.

Besides conventional products,customized are offered as well. So,do not hesitate to contact us,we will serve you with 100% enthusiasm

Satisfactory after-service is offered.Our technical team support you for any technical problem about products.And there is one year warranty for each one.

We ready to serve you. Let's build a win-win partnership!

Main products

Picture of company

Pictures of workshop

The Newest Medical Freezer Control Thermostat SF-783

Feature

1.Temperature display&control

2.Defrost type optional

3.Self testing/Defrost control/Power switch

Technical Data

1.Range of temperature displayed:-50°C~150°C(-50~302°F)

2.Range of set temperature:-50°C~45°C(-50~113°F)

Accuracy:±1°C(1°F)

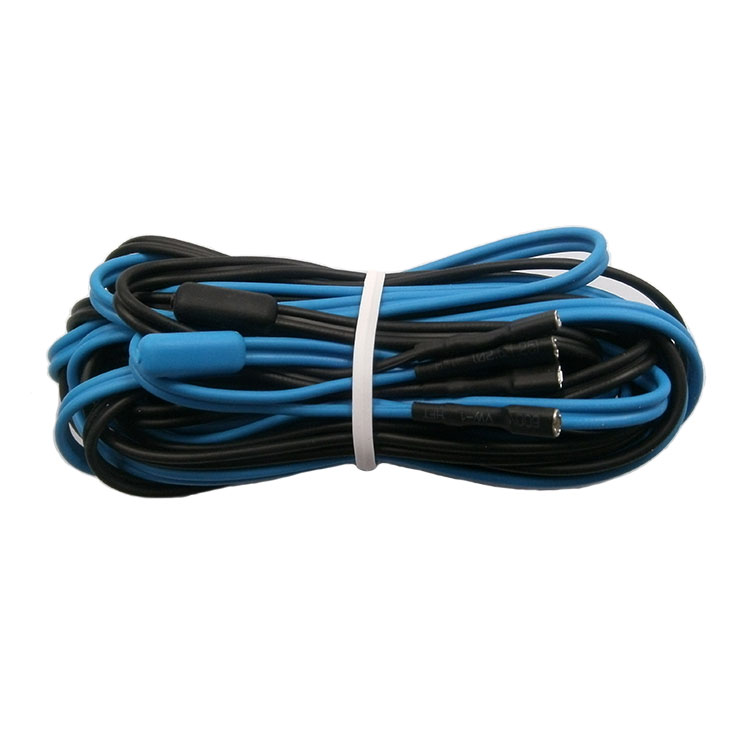

3.Temperature sensor: NTC, two sensors, 2 meters (Neither positive nor negative)

4.Compressor :NO. 30A/250VAC

Defrost: NO. 10A/250VAC

Fan: NO. 8A/250VAC

Light: NO. 8A/250VAC

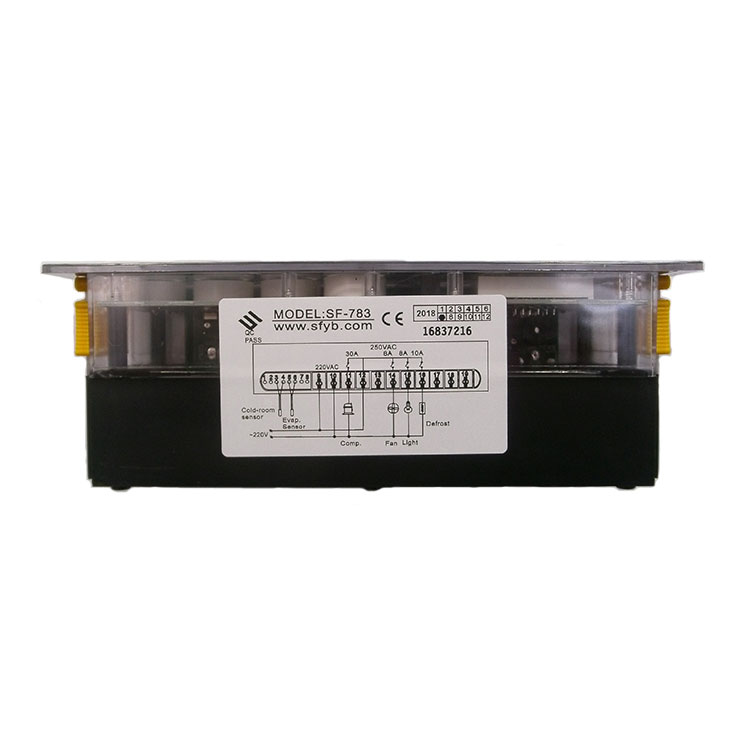

Circuit diagram

Medical Freezer Control Thermostat

Parameter

Paramete	Function	Set range	Default
PAS	Password	00~99	15
E1	Lower setpoint limit	-50°C/-50°F~Set temp.	-25°C/-13°F
E2	Higher setpoint limit	Set temp.~45°C/113°F	20°C/68°F
E3	Temp.hysteresis	00~40°C/00~72°F	04°C/07°F
E40	Comp.start delay time	00~10Min	2Min
E41	Delay starting time	00~10Min	2Min
E5	Offset on room temp.	-20~20°C/-36~36°F	00°C/00°F
E6	Offset on evap. temp	-20~20°C/-36~36°F	00°C/00°F
E7	Offset on condenser	-20~20°C/-36~36°F	00°C/00°F
F0	Defrost type	00=Defrost by turning off comp. 01=Heater defrost 02=Hot gas defrost	01
FF0	Hot gas defrost comp. delay starting time	00~20Min	00Min
FF1	Defrost mode	00=Power on hours 01=Comp. continuously working time	01
F1	Max. defrost duration	01~60Min	20Min
F2	Defrost interval time	00~24Hr	6Hr
F30	Defrost starting time	-40°C/-40°F~F31	00°C/32°F

Packing

Medical Freezer Control Thermostat

Certificates

Trade shows

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
