Digital temperature humidity controller for refrigerator made in China SF-548

                                           About Shangfang

 We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.

The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

We believe that " Concentration leads us professional."

                                        Product Description

                                        Technical Data

              Digital temperature & humidity controller for wine cooler SF-548

Features:

1. It is suitable for wine cooler, glass showcase, freezer of medical and so on.
2. Touch button
3. temperature control
4. Humidity control
5. Automatic heating and cooling
6. Manual,automatic defrost/illumination control
7. Temperature stop defrost
8. High and low temperature alarm
9. Evap. Fan control/Parameter locking

 Technical data:

1 Humidity sensor: one, 2m(L) (Accuracy:±1%)
2 Range of temperature display: -45~150°C Resolution: 1°C
3 Range of set temperature : 5~25°C Factory: default:15°C

4 Control step value:1°C
5 Range of humidity display:0~100%RH Resolution:1%RH
6 Range of set humidity:0~95%RH Control step value:1%RH
7 Temperature sensor:2NTC,2m(L), regardless of positive and negative (Accuracy:±1%)

8 Compressor:  N.O.30A/250VAC Heater: N.O.10A/250VAC
9 Evap.Fan: N.O.5A/250VAC Humidifier: N.O.5A/250VAC
10 Light: N.O.5A/250VAC Sterilizer: N.O.5A/250VAC
11 Display panel dimension:100mm(Length)×40mm(Width)×1.6mm(Depth)
12 Main frame dimension:150mm(Length)×130mm(Width)×55mm(Depth)

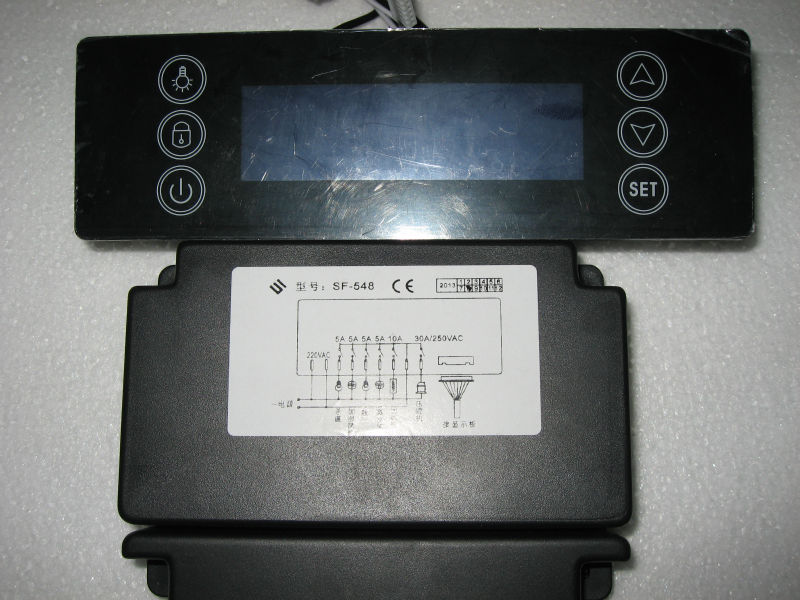

                                           Product Show

                                           Specification

                                          Certification

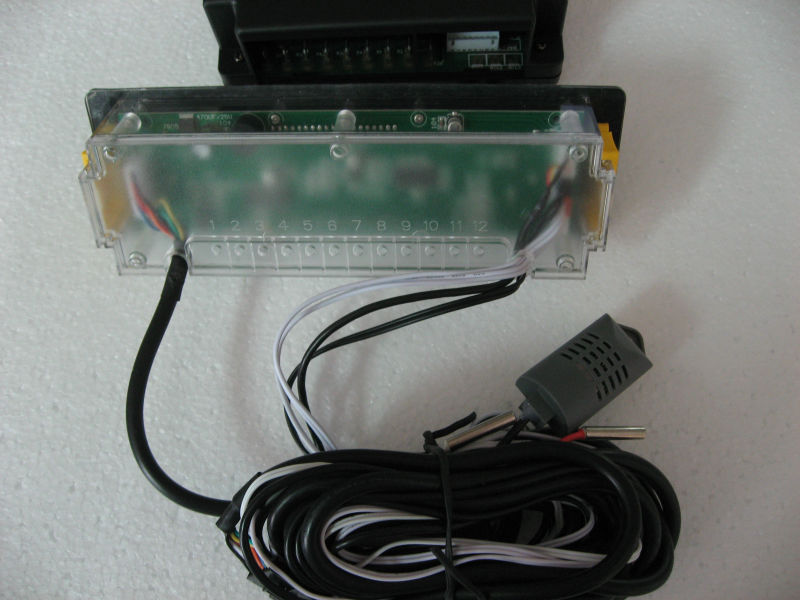

                                                 What we supply

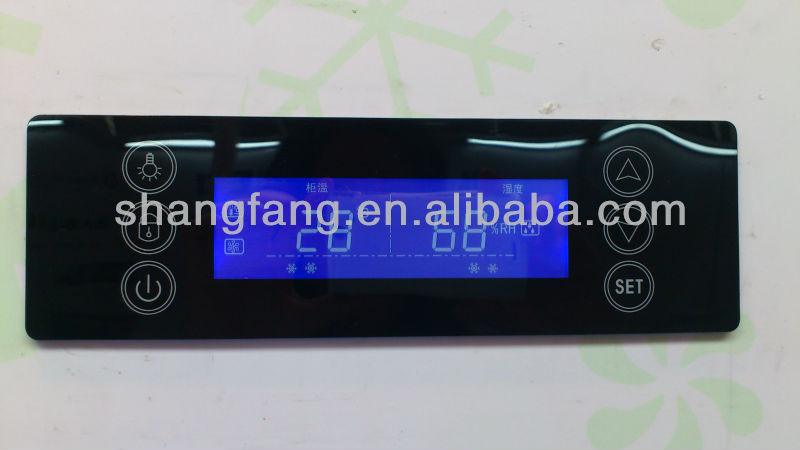

 Transparent and waterproof panel, equip with anti-drip case on the back.

                                     Our Factory

                               2013 China Refrigeration Exhibition

                   How to choose a suitable model with Shangfang

                          Thank you for your interest to our product.

*Do you feel confused that the model is not perfectly meet your require?

*Do you think that you don't really understand the specification well?

Dear friends, What are you waiting for?  Please contact us now.

+We will provide you the detail specification, more photos etc.

+We have professional technical team will solve your problem.

+And there are many customized options, so there is always one suitable for you.

+Custom product for acceptable order quantity.

  Shangfang controller, your BEST CHOICE!!

              We look forward to hear from you! Have a nice day!

                                          Contact Information
