Digital temperature controller for quick freezing freezer SF-485

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,other

Brand:

Shangfang

Products Model:

SF-485

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: SF-485

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/standard export carton, carton size:49.5x43.5x18.5cm
Delivery Detail: 15 business days

Specifications

Digital temperature controller for quick freezing freezer SF-485

About us

Shangfang,established in 1998, started from customizing digital temperature controllers for freezer manufacturers.

We produced digital temperature & humidity controllers widely used in refrigeration,air conditioning,heating,food and packaging machinery etc according to market demand.

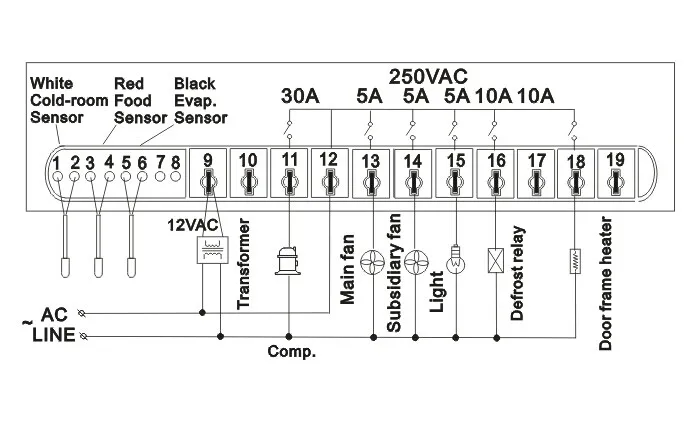

Specifications and Circuit diagram

Features
It is a mini-sized and integrated intelligent controller, can directly control 1HP(include 1 HP)compressor.
Temperature Display/ Temperature Control
Manual, automatic defrost /Main and subsidiary fan control
Two work modes/ Light control/ Value Storing / Self Testing

Technical Data
1 Range of display and set temperature:
2 Accuracy:±1℃(±2℉)
3 Temperature sensor: NTC(B=3380, 10K=25℃), three sensors (for cold-room temp. & defrost control& food sensor),1m(L), (neither positive nor negative)
4 Compressor: N.O. 30A/250VAC
5 Defrost: N.O. 10A/250VAC
6 Door frame heater: N.O. 10A/250VAC
7 Main, subsidiary Fan: N.O. 5A/250VAC
8 Light: N.O. 5A/250VAC
9 Dimension:208(Length)×64(Width)×72.5(Depth)mm
10 Mounting hole dimension:191.5(Length)×58(Width)

Why us

5th year gold supplier authenticated by ALIBABA.

Rich experience in export,delivery on time.

International certificates approval:UL,CE,TUV etc.,quality guaranteed.

Shangfang temperature and humidity controllers

Pictures of our factory and production line

Packing

Trade shows

We would like to thank everyone who attended our booth at the HOTELEX EXPO and Refrigeration EXPO in Shanghai.We intend to follow through with all the inquires we received.

Please feel free to contact us with your inquiry at any time!

Trade Terms

Payment: Full T/T in advance, West Union etc.

Production Lead time: 7~18days,if we have this item of your quantity in stock , 3 days delivery.

Shipping methods: You can choose EMS/DHL/UPS/Fedex/TNT/standard air freight or ocean freight via international forwarder according to gross weight. Due to the shipping time and the risk of losing goods , we do not suggest China post air mail/HK post air mail although it would be much cheaper.

FOB Shipping port: Zhongshan or Shenzhen, Mainland China.

Remark: If you want to deal with FOB/CIF/CNF term instead of EXW, please specify. Otherwise, EXW price will be quoted under inquiry.

After sales service

We have technical support group for the guidance of usage and after sales support.

Warranty is one year,failures caused by human factors are not included.

FAQ

1 Could the controllers change to 110v and Fahrenheit degree?

The voltage could be 12VDC/VAC,110V,120V,220V,230V etc and in Fahrenheit degree.

2 How could I get a sample?

Sample for testing is available here,please contact us for more details.

3 The specification listed is not perfectly for my needs?

We have many customized options,we can provide the suitable ones for you.

4 Could not understand the description well?

We provide more detail photos about dimensions and even video presentation.

5 We do not need as much as the MOQ?

Our MOQ is 50pcs,but small order less than MOQ is also acceptable.

Contact Info

Thanks for your attention of Zhongshan Shangfang Instrument Meter Co. Ltd. We honor to serve our clients. If you are interested in any item of our products, please contact us without hesitation.

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
