Electrical Room Thermostat PLR02

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Shangfang

Products Model:

PLR02

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: PLR02

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/standard export carton, carton size:48x28x39cm
Delivery Detail: 15 business days

Specifications

Electrical Room Thermostat PLR02

Features

1 Temperature Display/ Temperature Control
2 Manual, automatic defrost by turning off
3 Light Control
4 High,Low temperature alarmValue Storing
5 Self Testing
6 Parameter Locking

Technical Data

1 Range of temperature display:—45~45°C (-40~120°F)
2 Range of set temperature:—45~45°C (-40~120°F)
3 Accuracy:±1°C (±2°F)
4 Compressor: N.O. 20A/250VAC
5 Light: N.O . 5A/250VAC
6 Dimension:77(Length)×35(Width)×60(Depth)mm
7 Mounting hole dimension:71(Length)×29(Width)mm

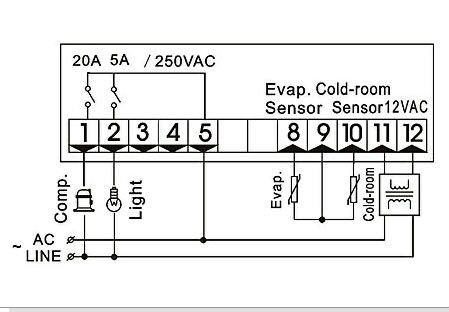

Circuit diagram

Parameters

Paramete	Function	Set range	Default
E1	Lower setpoint limit	-45°C/-40°F~Set temp.	-30°C/-31°F
E2	Higher setpoint limit	Set temp.~50°C/120°F	20°C/68°F
E3	Temp.hysteresis	1~10°C/1~10°F	4°C/7°F
E4	Comp.start delay time	0~10Min	2Min
E5	Offset on room temp.	-5~5°C/°F	0
E6	Offset on evap.temp.	-5~5°C/°F	0
F1	Max.Defrost duration	1~60Min	20Min
F2	Defrost interval time	0~24Hr	6Hr
F3	Defrost termination temp.	0~20°C/32~68°F	8°C/46°F
F4	Display during defrost	0=Normal display 1=Last value before defrost	0
C1	Temperature unit	0=°C 1=°F	0
C2	High temperature alarm	0~40°C/°F above setpoint	20
C3	Low temperature alarm	0~40°C/°F below setpoint	-20
C4	Alarm delay time	1~90Min	60Min

On April , 2013, we are attending 2 Trade Shows in Shanghai New International Expo Centre(SNIEC).

Our Booth is E3H55 from April 1~3,and E1D53 from April 8~10.

Welcome your visiting & You will be our distinguished guests!

We are the manufacturer of thermostats and humidity controllers,customizing is also available here!

Thanks for your attention of Zhongshan Shangfang Instrument Meter Co. Ltd. We honor to serve our clients. If you are interested in any item of our products, please contact us without hesitation. Welcome your inquiry!

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
