ED106 Best Buy Digital Temperature Controller Chest Freezer Thermostat Low Temperature Thermostat

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Shangfang

Products Model:

ED106

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: ED106

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 15 business days
Delivery Detail: --

Specifications

Are you looking for a refrigeration temperature controller?

We are a temperature instrument manufacturer with good reputation in China.

Our Advantages:
1.Rich experience.

We have been specialized in digital temperature controller for 15 years.

2. Customer-centric.

We have our own technical team and production line. We design and manufacture the products according to customers’ requirements.

3. High quality & reasonable price.

We develop high quality products with 15 years endeavor. Our products are CE, CQC, UL, ROHS, TUV approved.

Refrigeration Temperature Controller ED106

Features:

Temperature control
Evap.Fan control
Defrost by electric heater,hot gas
Celsius/Fahrenheit degrees
Value storing/Self testing
For freezer container of low temperature
UL approved
Mini-sized and integrated intelligent controller

Technical Data:

Range of temperature display:-45~150°C (-40~150°F)
Range of set temperature:-45~45°C (-40~113°F)
Accuracy:±1.0°C (±1.8°F)
Resolution:0.1°C /°F(—19.9~99.9°C /°F)
Compressor: N.O. 16A/250VAC
Defrost: N.O. 10A/250VAC
Evap.Fan: N.O. 5A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameter List

Code	Function	Set range	Default
E1	Lower setpoint limit	- 45 °C / - 45 °F ~ Set temp.	- 35 °C / - 31 °F
E2	Higher setopint limit	Set temp. ~ 45 °C /113°F	45 °C /113°F
E3	Temp.hysteresis	1 ~ 20.0 °C / 1.8 ~ 36.0 °F	4.0 °C /7.2°F
E4	Comp.start delay time	0 ~ 10Min	2Min
E5	Offset on room temp.	- 20.0 ~ 20.0 °C / -36.0~36.0°F	0
E6	Offset on evap.temp.	- 20.0 ~ 20.0 °C / -36.0~36.0°F	0
C1	Temperature unit	0= °C 1= °F	0
F0	Defrost function	0=Electric heater 1=Hot gas	0
F1	Max.defrost duration	1 ~ 60Min	20Min
F2	Defrost interval time	0 ~ 24Hr	6Hr
F3	Defrost terimination temp.	0 ~ 30 °C / 32~86°F	8 °C /46
F4	Display during defrost	0=Nomal display 1=Last value before defrost	0
F5	Fan operationg fuction	0=Parallel with comp. 1=Continuous running except defrost	0
F6	Dripping time	0 ~ 30Min	2
F7	Fan operating fuction after defrost end	0=Temperature 1=Time	1
F8	Fan start-up delay after defrost end	0 ~ 10Min	2
F9	Fan start temperature after defrosting(evaporator)	- 30 ~ 30 °C / -22~86°F	5 °C /41°F

Wiring diagram

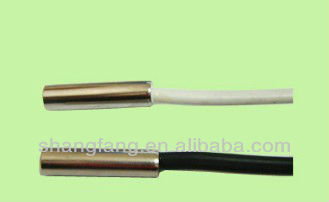

Sensor:

NTC, 2 meters long with metal head.

Our office & workshop

We are a temperature controller manufacturer with good reputation in China.

The products are designed and manufactured by us.

More information you want, please do not hesitate to contact me !

Welcome to visit our products.

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
