electric heating element thermostat ED106

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

shangfang

Products Model:

ED106

Products Details
Company Profile

Quick Details

Brand Name: shangfang

Model Number: ED106

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 0.30kg/pc 50pcs/standard export carton,carton size:49.5x43.5x18.5cm
Delivery Detail: 15 business days

Specifications

We have 15 years experience producing temperature controller.Our products are well-known for their stable performance and durability.

Besides conventional products,customized are offered as well. So,don' be hesitate to contact us,we will serve you with 100% enthusiasm

Satisfactory after-service is offered.Our technical team support you for any technical problem about products.And there is one year warranty for each one.

We ready to serve you. Let's build a win-win partnership!

Main products

Picture of factory

electric heating element thermostat ED106

Features

1 Temperature control

2 Defrost by electric heater,hot gas

3 °C / °F degrees

4 For freezer container of low temperature

5 UL,CE,TUV approved

Technical Data

1 Range of temperature displayed:-45°C~150°C(-45°F~150°F)

2 Range of set temperature:-45°C~45°C(-40°F~113°F)

Accuracy:±1.0°C(±1.8°F) Resolution:0.1°C/°F(19.9~99.9°C/°F)

3 Compressor:NO.16A/250VAC

Defrost:NO.10A/250VAC

Evap.Fan:NO.56A/250VAC

Defrost:NO.10A/250VAC

Size

Dimension:77(L)x35(W)x60(D)mm

Mouting hole dimension:71(L)x29(W)mm

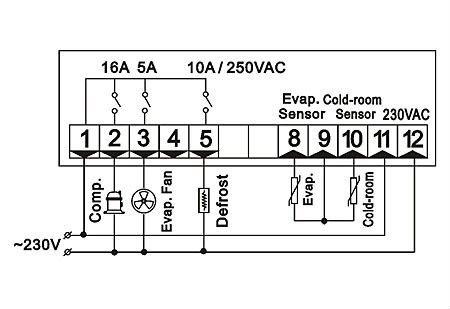

Circuit diagram

Photos of item

Parameter

Parameter	Function	Set range	Default
E1	Lower setpoint limit	-45°C/-45°F~Set temp.	-35°C/-31°F
E2	Higher setpoint limit	Set temp.~45°C/120°F	45°C/113 °F
E3	Temp.hysteresis	1~20°C/18~36°F	4°C/7.2°F
E4	Comp.start delay time	0~10Min	2Min
E5	Offset on room temp.	-20~20°C/-36~36°F	0
E6	Offset on evap.temp.	-20~20°C/-36~36°F	0
C1	Temperature unit	0=°C 1=°F	0
F0	Defrost function	0=Electric heater 1=Hot gas	0
F1	Max.defrost duration	1~60Min	20Min
F2	Defrost interval time	0~24°C	6Hr
F3	Defrsot termination temp.	0~30°C/32~86°F	8°C/46°F
F4	Display during defrost	0=Normal display 1=Last vaue before defrost	0
F5	Fan operating function	0=Parallel with comp. 1=Continuous running except defrost	0
F6	Dripping time	0~30Min	2Min
F7	Fan operating function after defrost end	0=Temperature 1=Time	1
F8	Fan start-up delay after defrost end	0~10Min	2Min
F9	Fan start temperature after defrosting(evap.)	-30~30°C/-22~86°F	5°C/41°F

Certificates

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
