SF-201 Refrigerator Low Temperature Control Digital Termostat

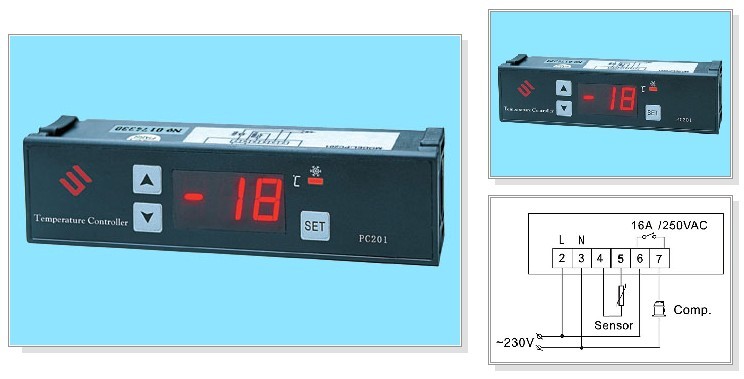

Digital Temprature Controller SF-201

Features

1 Temperature display

2 Temperature control

3 Value storing

4 Self testing

5 Parameter locking

6 For vetical cooling freezer container

7 Mini-sized and integrated intelligent controller

8 Applicable to the compressor of 1HP

Technical Data

1 Range of temperature displayed:-45°C~100°C

2 Range of set temperature:-40°C~45°C

3 Accuracy:±1°C

4 Compressor relay:NO.30A/250VAC

5 Dimension:142(L)x38(W)x35(D)mm

6 Mounting hole dimension:137(L)x31.5(W)mm

7 Power supply:230VAC

8 Temperature sensor:NTC,2m(L)

9 Temperature of the operating environment:-10°C ~60°C

    Relative humidity:20%~90%(Non-condensing)

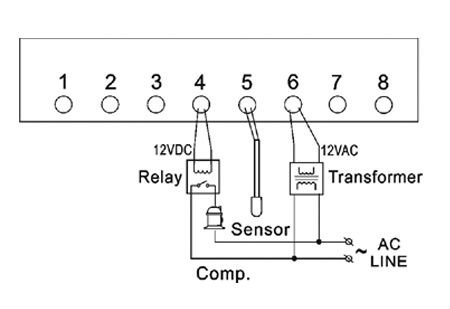

 Circuit diagram

Parameter
