Freezer Cabinet Temprature Controller digital thermostat controller SF-104S

                                           About Shangfang

We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.

The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

We believe that " Concentration leads us professional."

We are GMC(Global Manufacturer Certificate).

                                        Product Description

                                          Technical Data

                                                                    Refrigerator digital thermostat SF-104S

 Features

Temperature control
Evaporator fan control
Automatic/manual defrost by electric heater
Time/temp. seting to end defrost
Celsius/Fahrenheit degrees
Re-start delay

Technical Data
Range of temperature displayed :  -45~45°C(-40~120°F)
Range of set temperature: -45~45°C (-40~120°F)
Accuracy:±1°C (±2°F)
Compressor: N.O. 30A/250VAC
Defrost: N.O. 30A/250VAC
Evap. Fan: N.O. 30A/250VAC
Dimension:77(Length)×35(Width)×30(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

                                           Product Show

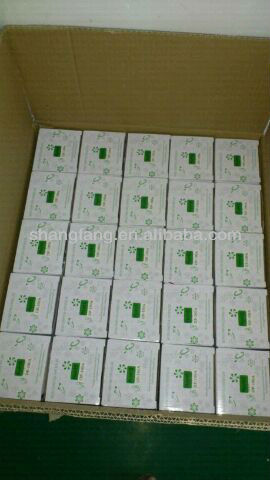

Packing: 50pcs/carton

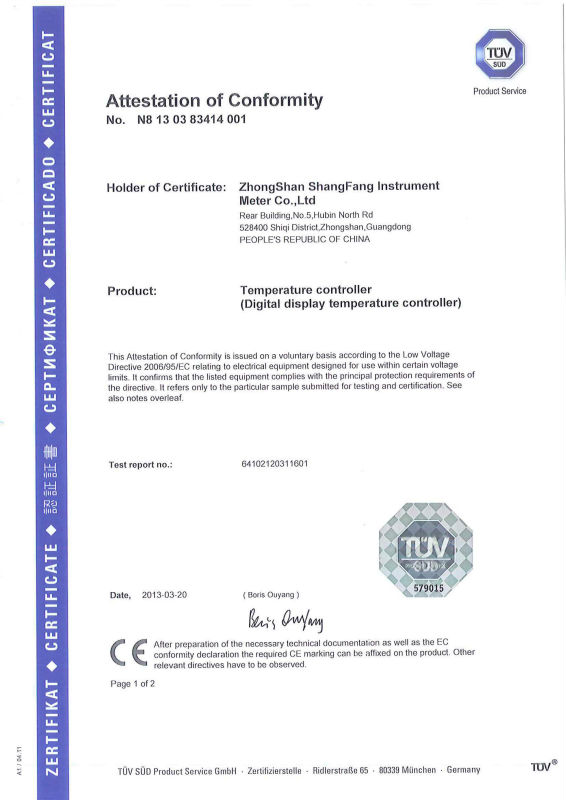

                                         Certification

                                             Our Factory

                               2013 China Refrigeration Exhibition

                   How to choose a suitable model with Shangfang

                           Thank you for your interest to our product.

*Do you feel confused that the model is not perfectly meet your require?

*Do you think that you don't really understand the specification well?

Dear friends, What are you waiting for?  Please contact us now.

+We will provide you the detail specification, more photos etc.

+We have professional technical team will solve your problem.

+And there are many customized options, so there is always one suitable for you.

+Custom product for acceptable order quantity.

Shangfang controller, your BEST CHOICE!!

We look forward to hear from you! Have a nice day!
