Home > Products > Air Conditioner > Air Conditioner Parts

TOSHIBA Y- Shape Joint

FOB Price:

US 6.422-44.101 / Set

Min.Order Quantity:

300 Set/Sets

Supply Ability:

50000 Set/Sets per Month

Port:

Shanghai/Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Shield

Products Model:

RBM-55E

Products Details
Company Profile

Quick Details

Brand Name: Shield

Model Number: RBM-55E

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: standard exporting package; packing as per customers' requirement
Delivery Detail: within 20 working days

Specifications

1)TOSHIBA Y- Shape Joint
2)Exporting many years, high quality, 6.5mpa
3)Competitive price
4)CE, ROHS approved

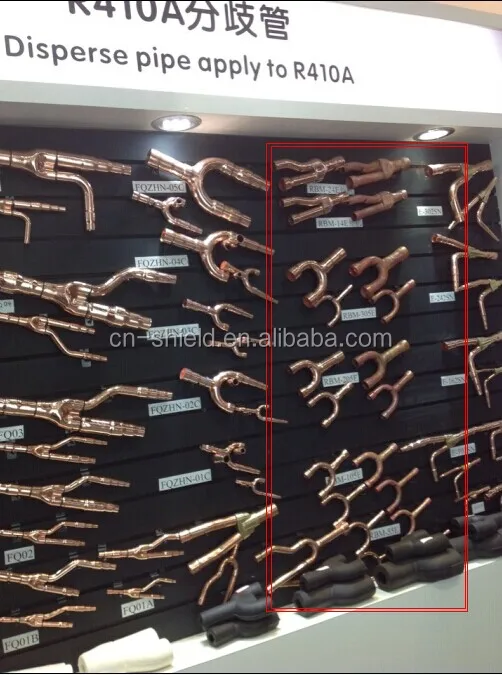

TOSHIBA Y Shape Joint

Product details

1)Material: special purposed copper pipe apply to R410A with high density, greater pressure-resistance

2)Crafts: Silver brazing with special designed soldering material & Aided welding for inner space,

guaranteed disperse with durability and no leakage;

3)appearance: Polishing and pickling

4) Insulation supplied

5) every set passed 6.5Mpa before leaving warehouse

Model information

Model		A	B	C
RBM-BY53E	GAS pipe	15.9	12.7	12.7
	Liquid pipe	12.7	9.6	9.6
	Fittings	Nine fittings for chosing
RBM-BY103E	GAS pipe	22.3	19.1	19.1
	Liquid pipe	15.9	12.7	12.7
	Fittings	Fifteen fittings for chosing
RBM-BY203E	GAS pipe	31.8	28.7	28.7
	Liquid pipe	15.9	15.9	15.9
	Fittings	Fifteen fittings for chosing
RBM-BY303E	GAS pipe	38.1	38.1	38.1
	Liquid pipe	22.3	19.1	19.1
	Fittings	Twenty fittings for chosing
RBM-BY13E	GAS pipe	38.1	38.1	38.1
	Liquid pipe	22.3	22.3	22.3
	Fittings	Thirteen fittings for chosing
RBM-BY55E	GAS pipe	15.9	15.9	15.9
	Liquid pipe	9.52	9.52	9.52
	Fittings	Four fittings for chosing
RBM-BY105E	GAS pipe	15.9	15.9	15.9
	Liquid pipe	22.3	22.3	22.3
	Fittings	Four fittings for chosing
RBM-BY205E	GAS pipe	28.7	28.7	28.7
	Liquid pipe	15.9	15.9	15.9
	Fittings	Ten fittings for chosing
RBM-BY305E	GAS pipe	35	35	35
	Liquid pipe	22.3	22.3	22.3
	Fittings	Eleven fittings for chosing
RBM-BT14E	GAS pipe	31.8	28.7	OD28.5
	Liquid pipe	T19.1	T19.1	T19.1
	Liquid pipe	T12.7	T12.7	T12.7
	Fittings	Eight fittings for chosing
RBM-BT24E	GAS pipe	38.1	38.1	OD31.8
	Liquid pipe	T28.7	T28.7	T28.7
	Liquid pipe	T22.3	T22.3	T22.3
	Fittings	Thirteen fittings for chosing

we supply all brands of branch joints

Zhuji Shentong Machinery & Electric Industrial Co., Ltd was established in 1995, it has been devoting to design, research and manufacture of pipe fittings applied to HAVC & R equipment and building engineering ever since, like Vibration Absorbers, Refnet Joints, Copper & Brass Fittings and Vibration Isolation products.
Shentong has advanced laboratories and professional R&D team, it provides customers with excellent quality products as well as best solutions.

Range of Products:
Standard Vibration Absorber; Vibration Absorber for Auto Air Conditioner, Locomotive Air Conditioner, Precision Air Conditioning and Transport Refrigerator etc.; Supercritical Carbon Dioxide CO2 Vibration Absorber.
Vibration Absorbers are designed to be installed in the suction and discharge lines of air conditioning and refrigeration systems to reduce vibration in the transmission of compressor-induced vibration through tubing.
Flexible Stainless Steel pipes of ordinary, high and extra high pressure are applied to refrigeration inspection equipment, refrigerant charging devices, special air conditioning, special vehicle, ship, aviation, petrochemical engineering, pump and etc.
They can be applied to all kinds of refrigerant, oil, gas and water. Customized items are available in terms of length, diameter, materials and connections.

Refnet Joint Kits for VRF VRV Air Conditioning System: most models of joints are available, PE insulation is provided if needed.
Other Refrigeration Fittings like Brass Distributor, Sight Glass, Check Valve, Filter Drier, Co2 Filter and etc.
Copper and Brass Fittings like Elbow, Coupling, U Bend, Reducer, Tee and etc. Their sizes are available both in metric and inches.
Vibration Isolation Products like Spring Hangers, Housed Spring Damper, Rubber Fix-It Foot and etc.

Shentong has big market shares for vibration absorbers in domestic. Vibration absorbers and other items are also export to almost of countries and regions worldwide.
