RW-BW Series Water Cooled Condensing Units(with Bitzer Single Stage compressor)

About us

      Fenghua Refworld Refrigeration Industry Co., Ltd. is a company specializing in the R&D, manufacture and sale of refrigeration components and equipment. Through several years of hard work and devotion in the field of refrigeration, high technology manufacturing equipment and advanced management concept, we are making a solid base for our future development. Now we have established a wide sales network all over the world. We are always open for your visit and cooperation and hope that we can establish long-term cooperation with your esteem company and will do what we can for the development of the world refrigeration and air conditioning.

About product

• General Description

The RW-BW series features by their Semi-Hermetic Bitzer compressor, it includes 4 series of products of water cooled, middle and high, middle and low temperature range. All the products are applicable to the industries of food fresh keeping, cold storage, ice making, chilled water equipments etc.

• Main components

World famous brand refrigeration parts are employed for all products:

Semi-Hermetic Bitzer compressor;

Copper tube & aluminum fin type heat exchangers are employed for air cooled type products; Shell and tube type heat exchangers are employed for water cooled type products.

Built in water proof terminal box;

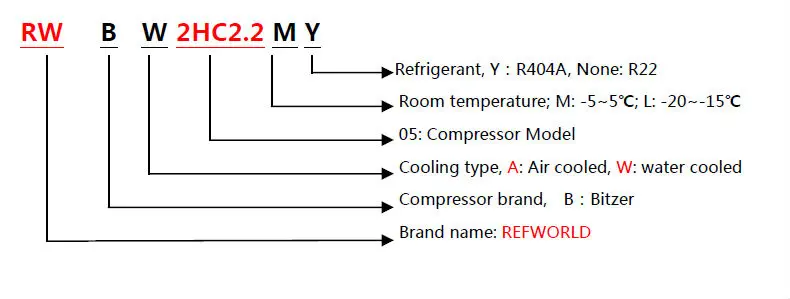

• Model code

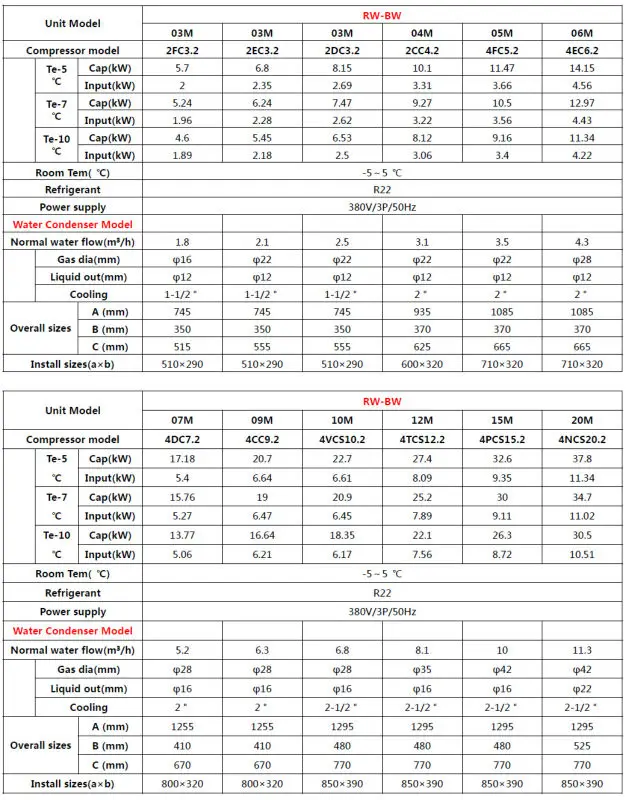

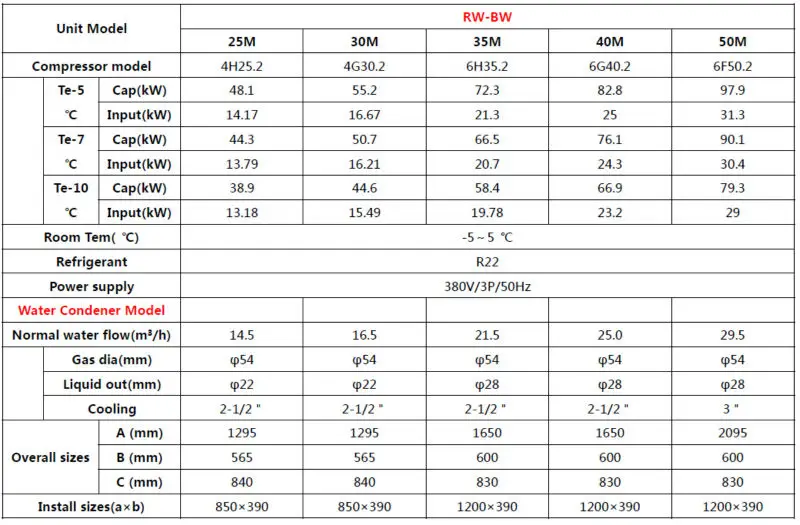

(1)  Medium/High type Water cooled R22 units.

Designed working Condition: Te: -7°C; Cooling Water Tin/Tout: 30°C/35°C, Suction over heat Temp: 10°C

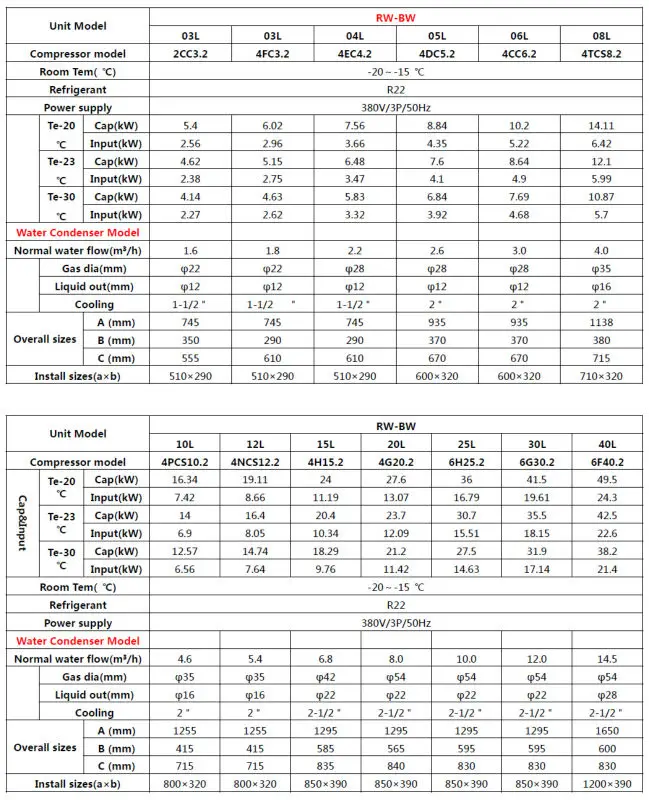

(1)  Medium/Low type Water cooledR22 units.

Designed working Condition: Te: -23°C; Cooling Water Tin/Tout: 30°C/35°C, Suction over heat Temp: 10°C

Both piston end fan and CIC must be used when the units are working at evaporation temperature under -25°C

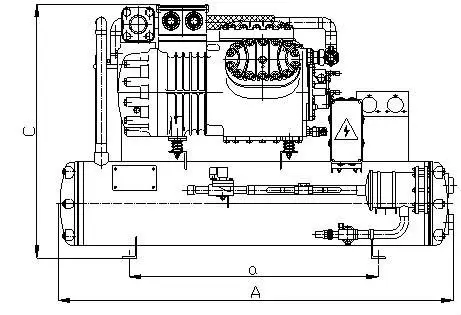

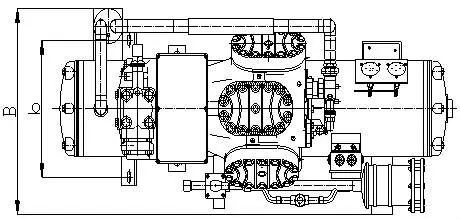

Drawing & Dimension water-cooled unit

What we supply

Welcome to contact us
