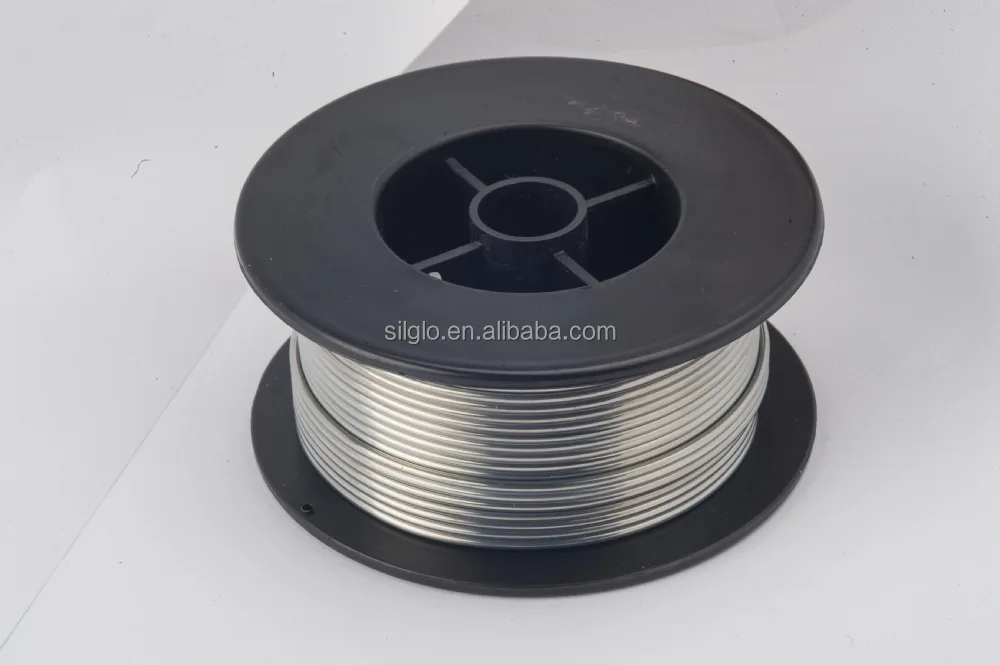

Hot seller - good quality high silver welding wire in coil

FOB Price:

Open price

Min.Order Quantity:

50 Kilogram/Kilograms

Supply Ability:

600 Ton/Tons per Week

Port:

nigbo or shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T

Brand:

Global

Products Model:

GB-20cd GB-25cd

Products Details
Company Profile

Quick Details

Brand Name: Global

Model Number: GB-20cd GB-25cd

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

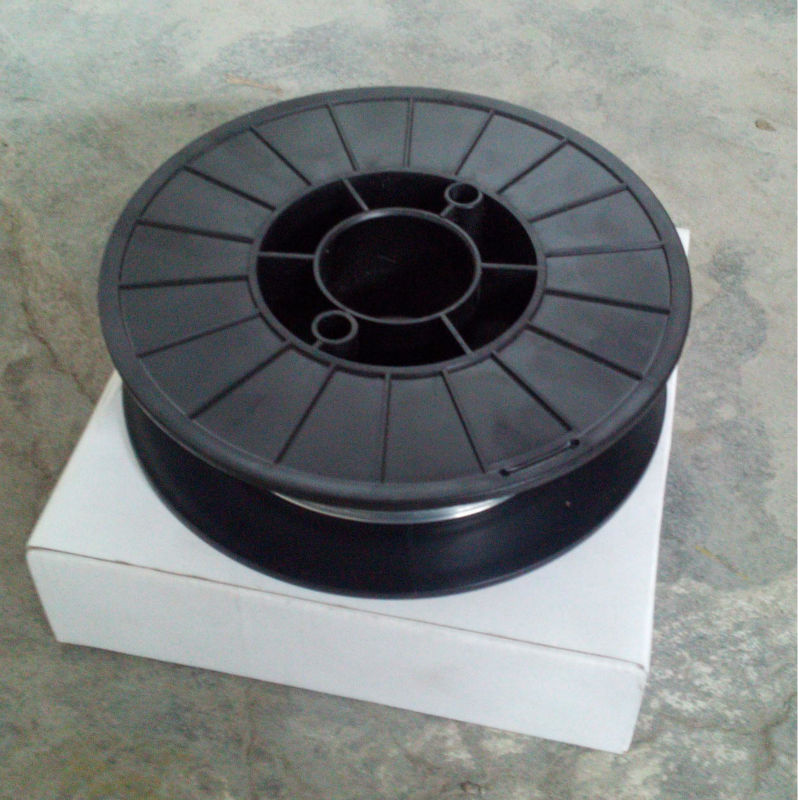

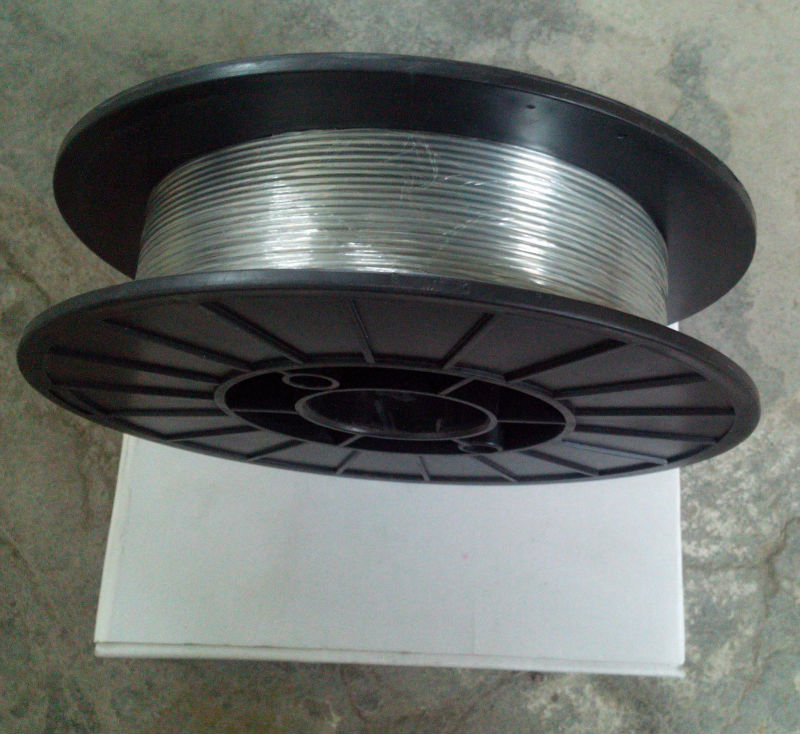

Packaging Details: According to customers' damand. General package is both ends marked,each spool wrapped with kraft paper,sealed,put into a polybag with drier.15kgs/spool/carton,180kgs/crate ,size:35*35*12cm
Delivery Detail: 7 DAYS AFTER THE CONTRACT IS CONCLUDE

Specifications

1.shows perfect pormance in contacting brazing
2.low melting point
3.extensive flow properties
4.strong ,ductile

High silver brazing alloy is composed of silver or silver based alloy.It has perfect welding effect with low melting point,fine wettability and excellent gap filling ability .Because its high strength,good plasticity,good conductivity and corrosion resistance,it can be used for welding all kinds of ferrous and non-ferrous metals except aluminum magnesium and other low melting point metals.

Product No.	Standard grade	composition					Melting Range		(Typical Application)
Product No.	Standard grade	Ag	Cu	Zn	Cd	Other	Solidus	Liquidus	(Typical Application)
GB-20cd	L-Ag20Cd (Germany)	19 - 20.5	39 - 41	24 - 26	13 - 17		620	765	Low silver at expense of broad meit range. Requires rapid heating to prevent liquation.
GB-25cd	AWS BAg-27	24 - 26	29 - 31	26 - 29	16.5 - 18.5		605	720	. Less silver than Silvaloy 30 at the expense of increased metaltemperature and range.
GB-30cd	AWS BAg-2a	29 - 31	27 - 29	20 - 22	20 - 22		600	690	Low silver at expense of broad meit range. Requires rapid heating to prevent liquation.
GB-35cd	AWS BAg-2	34 - 36	25 - 39	19 - 23.5	17 - 19		605	700	Less silver than Silvaloy 30 at the expense of increased metaltemperature and range.
GB-40cd	Ag-304	39 - 41	15.5 - 16.5	19 - 23	18 - 22		595	630	Broader melt range than Silvaloy 45, suitable for larger gap clearance and easier filleting.
GJY-45cd	AWS BAg-1	44 - 46	14 - 16	14 - 18	23 - 25		595	620	. Broader melt range than Silvaloy 45,suitable for larger gap clearance and easier filleting.
GB-50cd	AWS BAg-1a	49 - 51	14.5 - 16.5	14.5 - 18.5	17 - 19		625	635	Broader melt range than Silvaloy 45,suitable for larger gap clearance and easier filleting.
