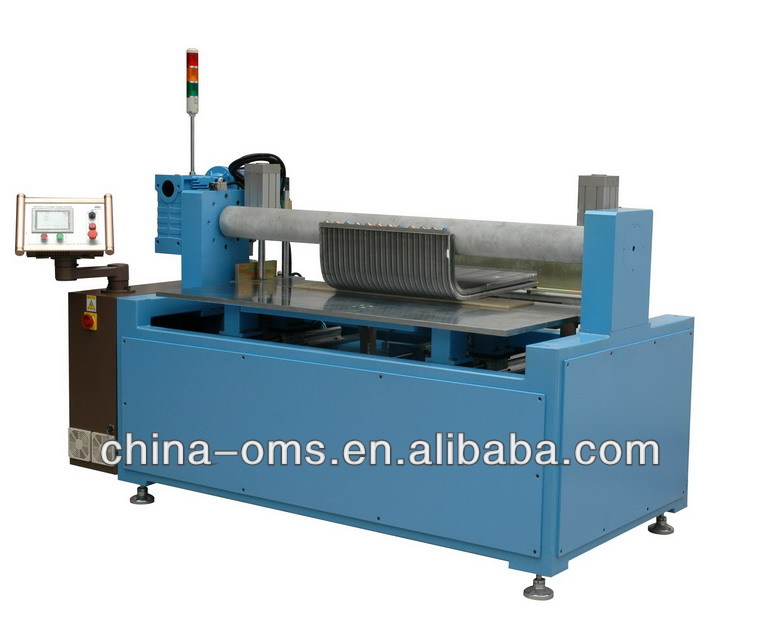

CNC Condenser Bender coil bender machine

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

50 Set/Sets per Month

Port:

Zhongshan port

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

OMS

Products Model:

CDBM-1500/1F

Products Details
Company Profile

Quick Details

Brand Name: OMS

Model Number: CDBM-1500/1F

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Iron packing, detail dimension decided by specific requirement
Delivery Detail: --

Specifications

Condenser Bender

Use: used to bend condensers at an angle and make them change "L" shape or "U" shape
to fulfill overall design in air conditioner and the requirement of product
technique

Features:

1) Three axes CNC, accurate location and smooth bend

2) High degree of automation and convenient adjustment

3) The fins do not fall easily

Specifications:

1) Wall thickness of coil: 22mm / layer, max. three layers, numerical setting

2) Bending radii: R69 (1-3 layers), can be made to order

3) Bending angle: 0-110°, numerical setting

4) Precision bend ±0.1°, platform up and down±0.1 mm, locating±0.1mm

5) Locating length of coil 400mm-1,000mm pre-location

6) Control mode: jog, manual, auto

7) Max. width of coil: 900mm/1,200mm/1,500mm

8) Max. length of coil: 2,500mm

9) Short edge length of bend: a) The first layer: ≥60mm b) The second layer: ≥80mm c) The third: ≥110mm

10) Clamping travel of coil: 150mm

11) Travel of platform up and down: 0-120mm

12) Cycle of auto working: 12-15s

13) Air pressure range: 0.3-0.5MPa

14) Power supply: three-phase, four-wire, AC 415V 50Hz

15) Total power: 4.5kW

16) Gross weight: 1,600kg
