Home > Products > Heating > Heat Pump

Deron high quality certified large water to hot water heating pump with Copeland R417a 20P 80KW for Asia market

FOB Price:

US 5,999-7,999 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

1000 Unit/Units per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

DERON/ OEM brand

Products Model:

DE-180W/S -water heat pump

Products Details
Company Profile

Quick Details

Brand Name: DERON/ OEM brand

Model Number: DE-180W/S -water heat pump

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Fibre complex board/ ply-wood package
Delivery Detail: Shipped in 20 days after payment

Specifications

Underground heat pump larger size for Commercial use

Best replacement of gas boiler, tradistional electric water heater and solar heat pump. suitable for hotel, school,office building, factory etc.supply hot water and space heating/ Cooling(as airconditioner) all the year around.

Introduction of water source heat pump:

This series of air source heat pump is designed for the common area of ambient temperature between -10 °C, to 45°C. The unit is designed for domestic hot water or offering heat to the houses, or commercial building, for example, hostel, villa, etc. In the mean time, cooling function for air conditioner is optional.

Geo thermal heat pump's Features:

1) Multiple protections to protect the compressor and the heat exchanger.

2) With auxiliary heating control, circulation pump control.

3) Optional modular controller is available.

4) With timer function.

5) Adjustable defrosting according to different weather conditions.

6) Stable water flow switch .

7) With terminal for indoor thermostat, starting or standby the heat pump.

8) Air exchanger (fin-coil) with hydrophilic coating.

9) Anti-corrosion case: durable coating; no-screw design with stainless steel bolts and nuts,no rust.

10) Simple installation: can be placed on roof top, balcony, yard, or basement.

11) Low noise fan motor. Long lifespan up to 15 years.

12) Modular design: We can add on more units according to user’s requirement.

13) All weather operation: Running without being effected by weather, even snow or rain.

14) Environment protection: No pollution and waste needs to discharge in entire working cycle.

15) Economy: The running costs of a heat pump can be less than those of a traditional gas boiler heating system.

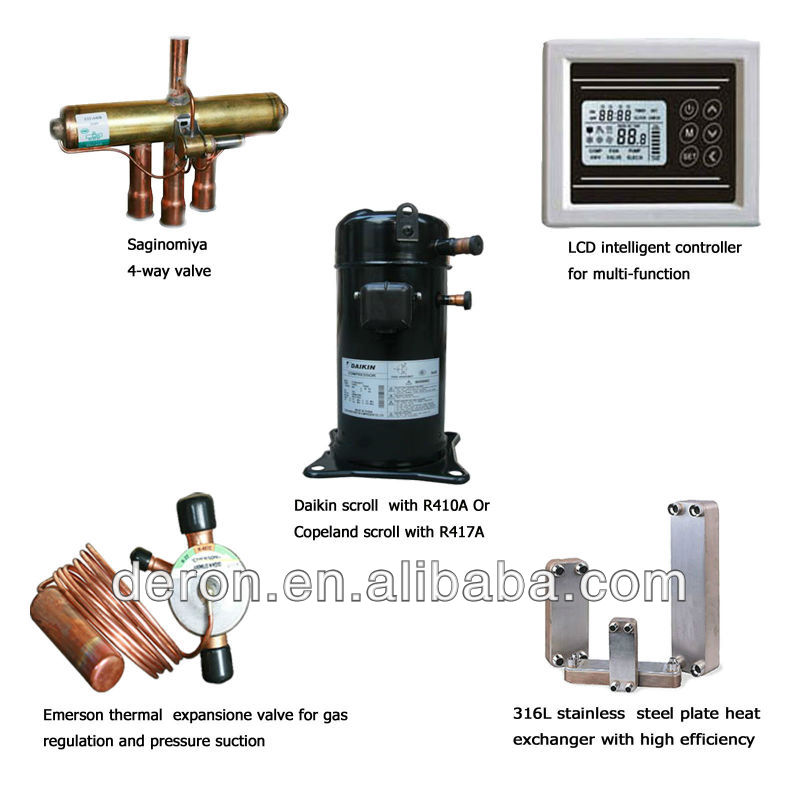

Water to water heat pump's Components:

Note: Components above can be changed, like its band, material, logo etc.

Technical data:

Model		DE-180W/S - water water heat pump
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	80
1)Heating capacity	BTU	272960
Rated power input	kW	20
2)Heating capacity	kW	77
2)Heating capacity	BTU	262724
Rated power input	kW	16
3)Cooling capacity	kW	60
3)Cooling capacity	BTU	204720
Rated power input	kW	14.3
Refrigerant		R410A
Compressor	Type	Scroll
Required hot water flow rate	m3/h	16
Required water source flow rate	m3/h	12.8
water connection		G2"
Noise	dB(A)	≤45
Max. current	A	49
Max. water output temp.	℃	60
Water source temp. range	℃	5~35
Net weight	kg	500
Net size(L/W/H)	mm	1560×740×1380
1)Heating by Water Source temp.(In/Out):15℃ /7℃ and Water temp. (In/Out):15℃/55℃;
2)Heating by Water Source temp.(In/Out):10℃ /7℃ and Water temp. (In/Out):30℃/35℃;
3)Cooling by Water Source temp.(In/Out):25℃ /30℃ and Water temp. (In/Out):12℃/7℃;

Certificates

Company Information

Top 10 Band Deron Heat Pump is being sold well to more than 30 countires with over 10 years OEM experience. Deron is a national key heat pump enterprise in Guangzhou, China. We devote to researching and producing high quality heat pump products. Our products work to provide space heating, space cooling or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.

Deron heat pump R&D center mainly comprises a passionate R&D team of 28 technicians and 3 advanced laboratories. The labs have imported sophisticated equipment from Italy, USA and so on by investing more than USD1.6 million and approved by TUV for cooperating according to EN14511 standards. They make it possible to test EVI air to water heat pump even in -25℃ low ambient area, and applied to test air source heat pump and water/ground source heat pump. Deron R&D center provide a strong assurance for heat pump search and application.

Deron Advantage

♦ ♦Top 10 Band Deron Heat Pump is being sold well to more than 30 countires with over 10 years OEM experience.

♦♦ A professional heat pump manufacturer since 2005, covering an area of 30,000sqm and having more than 300 employees.
♦♦Got 3 National standard R&D laboratories passed ISO9001:2012 and SGS, CE, TUV EN14511, etc certificate.
♦♦ China Goverment procurement designated supplier (19th) .

♥ So thanks for reading, want get more details welcome to contact us or visit DERON factory in anytime!

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
