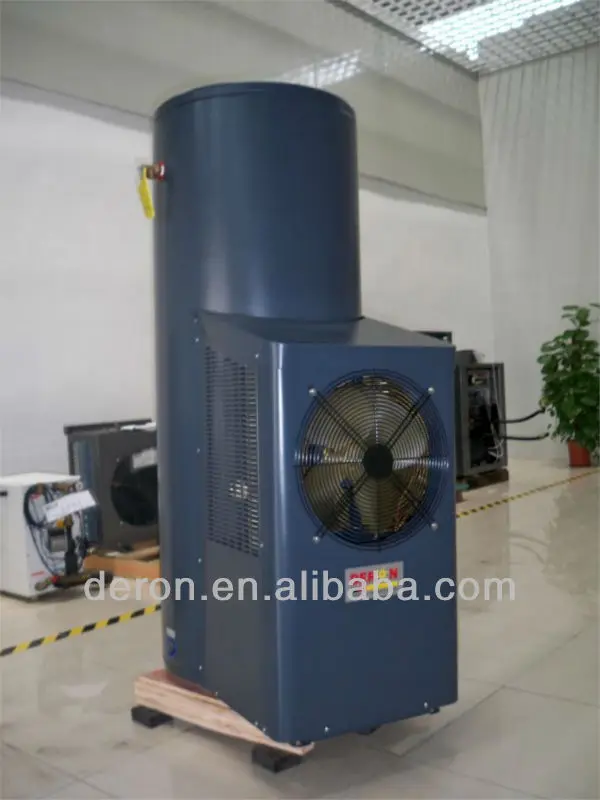

deron air source all in one heat pump water heater room heater jacuzzi prices for bathroom hot water with panasonic compressor

FOB Price:

US 499-2,999 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

900 Unit/Units per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Deron or OEM brand

Products Model:

DE-340LY

Products Details
Company Profile

Quick Details

Brand Name: Deron or OEM brand

Model Number: DE-340LY

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing:Ply-wood packing,no need fumigate!
Delivery Detail: Within 25 days after receving 30% deposit

Specifications

Deron air source all in one heat pump water heater room heater jacuzzi prices for bathroom hot water with panasonic compressor

Model:DE-340LY

Feature:

1.Deron new patented products.

2.Supply hot water for shower,kitchen or barbershop use.

3. Copper tube heat exchanger wrapped outside the inner enamel tank, avoiding the water from getting pollution. High efficiency heat insulation foam filled between the internal tank and external tank.

4. Combined water tank (340 liter) and heat pump mainframe together, more convenient in installation.

5. Strict noise control, floating support for compressor to reduce vibration at the most extent. Sandwich noise insulation inside the cabinet and noise jacket for compressor to reduce noise mostly.

6. Maximum water temperature reaches 60°C~ 65°C with R134a refrigerant.

Advantage:

1. Conveninet: Intelligent remote controller indoor, with simple key operation.
2. Multiple protections for the whole heat pump, guaranteeing safe operation.
3. All weather operation: stable operation without being influenced by weather.
4. Simple installation: rooftop, balcony, yard or basement can be suitable places for the installation.
5. Quiet: low noise, no disturbance to owners and neighbours.
6. Fashionable: Fashionable design matching your house style.
7. The water tank can be powder coating or stainless steel type, according to your requirement.
8. Durable: long service life up to 15 years, Extremely low maintenance cost.

Main components:

Parameter list:

All in one heat pump

Model		DE-340LY
Power supply	V/Ph/Hz	220V/1ph/50Hz
Heating capacity	kW	3.6
	BTU	12283
Rated power input	kW	0.95
Water feed speed	L/h	77
Refrigerant		R134A
Max. current	A	7
Compressor	Type	Rotary
Fan	Qty	1
Condenser (heat exchanger)		Enamel tank with copper coil outside
Capacity of the tank	L	340
Water connection		G3/4"
Max. water tank pressure	kPa	850
PT valve operation pressure	kPa	850
PT valve operation temp.	℃	95
Noise	dB(A)	<52
Level again electric shock		I
Water proof		IP×4
Max. water temp.	℃	65
Operation temp. range	℃	0~43
Net weight	kg	170
Net size(L/W/H)	mm	880×650×1865
Heating by Ambient temp:(DB/WB):20°C/15°C and Water temp.(Inlet/Outlet): 15°C/55°C;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

Certificate:

Installation diagram:

Company information:

we are a golden supplier which has got certificate from TUV and alibaba.com.

1. Over 8 years of Heat pump production.

2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.

3. Got 3 National standard laboratories passed TUV certificate.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
