Brand Name: DERON/ OEM brand
Model Number: small hot water heat pump DE-46W/C
Place of Origin: Guangdong, China (Mainland)
In a word, Top 10 brand Deron Heat Pump since in 2005 with over 11 years OEM experience. all Deron heat pump water heaters is with reliable & famous Japanese, American, Taiwanese main components, no need more fee for maintenance with long wroking life reaching 15 years!
Introduction:
This series of Air Source Heat Pump with heating/ cooling function is specially for :
A. House heating, heated floor
B. Sanitary hot water for bath tubs, jacuzzi
C. Air conditioner cooling, fani coil space cooling, water chiller room cooling.
Features:
1. 3 modes:
A. Heating + hot water
B. Single heating
C. Single hot water
2. It can work in -10°C~ +45°C
3. Hot water output reach temp. 55 - 65 degree C. it's just up to you.
4. Green refrigerant: R410a/ R407c/ R417a/ R22 etc, with famous Japanese Panasonic, American Copeland brand compressor.
6. Anti-corrosion case: coating case with different color or 304 stainless steel case;
7. All heat pump must be tested to guarantee the good quality and feature before packaging.
Heat pump water heaters is a best choice instead of gas boiler, tradistional electric heaters and solar heat pump. very suitable for hotels, schools, office buildings, factories etc.supply hot water and space heating/ Cooling(as air conditioner) all the year around.
Main components: Reliable Deron heat pump with world famous brand Janpan and USA parts

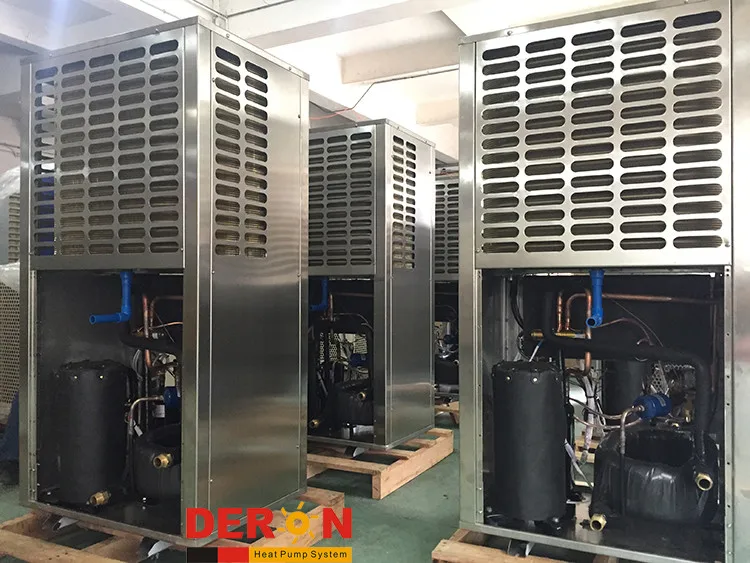

The compact design DERON heat pump is built-in Copeland or Daikin scroll type compressor, Deron made coaxial coil heat exchanger, Emerson thermal expansion valve and Saginomiya four-way valve to ensure it work smoothly and efficiently.
Copeland ZW or Daikin scroll compressor: scroll type compressor, strong anti-liquid shock ability.
Japanese brand Saginomiya 4 way valve: to adjust refrigerant flow directioin for defrosting/ cooling. controlling& indicating the gas outlet direction well&reliably
American Emerson expansion valve: Stable performance and high efficiency, low failure rate
Twaiwanese High/ Low pressure gauge: Multi protection and accuracy control
FULIHUA brand Fan motor and blade: from 8-pole fan motors + big strengthened fiber nylon fan blades, against high/ low temperature and reducing the noise, large air flow adn duraable, ,low noise, anti-deformation, long lifetime.
Aluminium alloy evaporator: red copper Golden hydrophilic fin tube evaporator U shape with stronger corrosion protection.
Deron Coaxial coil heat exchanger: Patented technology, Thick inwall, high purity, improve heat efficiency
304# stainless steel case: High temperature baking paint, Anti-corrosion, anti-rusting, lifetime up to 15 years.
Technical data:
| Model | DE-46W/C | |
| Power supply | V/Ph/Hz | 380/3/50 |
| 1)Heating capacity | kW | 19 |
| BTU | 64828 | |
| Rated power input | kW | 4.75 |
| 2)Heating capacity | kW | 15 |
| BTU | 51180 | |
| Rated power input | kW | 4 |
| Refrigerant | R410A | |
| Compressor | Type | Scroll |
| Fan | Qty | 1 |
| Required hot water flow rate | m3/h | 4 |
| Water connection | G1" | |
| Noise | dB(A) | ≤58 |
| Max. current | A | 13 |
| Max. water temp. | ℃ | 60 |
| Operation temp. range | ℃ | -10-45 |
| Net weight | kg | 140 |
| Net size | mm | 755×595×1490 |
| 1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ amd Water temp.(in/out): 15℃/55℃; | ||
| 2)Heating by Ambient temp.(DB/WB): 7℃ /6℃ and Water temp.(in/out): 30℃/35℃; | ||
Top 10 Brand Deron Heat Pump is being sold well to more than 30 countires with over 11 years OEM experience. Deron is a national key heat pump enterprise in Guangzhou, China. We devote to researching and producing high quality heat pump products. Our products work to provide space heating, space cooling or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.
DERON specialized in manufacturing heat pump
** Since 2005, over 11 years experience, more than 300 employees, covering an area of 30,000 sqm
** More than 5 production line, 40 innovative patent, China High tech enterprise
** DERON is China's top 10 heat pump brand, one of a designated supplier of central goverment
** National standard R&D laboratories passed IISO14001, ISO9001 and CE, RoHS, IEC, ErP etc certificate.
** Experienced engineer team with rich development and installation experience
** OEM/ ODM service available
Detail description for some projects above:
-- Deron evi heat pump 20pcs 160kW DE-360W/DW for room heating [BEIJING FUND TOWN INTERNATIONAL CONVENTION CENTER]
-- Deron evi heat pump 110pcs 160kW DE-360W/DW for floor heating [Qingdao JiHongTan Building]
-- Deron trinity heating cooling heat pump 33pcs 20kW DE-46W/CR , swimming pool heat pump 7pcs DE-46W/CY + 4pcs DE-46W/CRY[Shanghai MaoYue Hotel]
...
How does an air source heat pump work?
Heat pump delivers hot water by efficiently utilizing a free and abundant source of energy, that is the heat in the air around us. Refrigerant vapor compression technology enables the heat pump to intensify this heat, which is used to produce hot water. The heat pump are more efficient during warmer months, and will operate for less hours during the day than in colder months of the year.
1. Cold refrigerant absorb heat from the air/water and become warm refrigerant.
2. Warm refrigerant be compressed as hot refrigerant.
3. Hot refrigerant transfer heat to water.
4. Hot refrigerant become cold after expanding.
How does a water/geothermal source heat pump work?
Heat pumps delivers hot water by efficiently utilizing a free and abundant source of energy, that is the heat from the earth/underground water/river etc. Refrigerant vapor compression technology enables the heat pump to intensify this heat, which is used to produce hot water.
1. Cold refrigerant absorb heat from the water and become warm refrigerant.
2. Warm refrigerant be compressed as hot refrigerant.
3. Hot refrigerant transfer heat to water.
4. Hot refrigerant become cold after expanding.
Will it be damaged if heat pump installed outdoors?
No, all of DERON heat pumps are designed to go outdoors and are weather-proof. They will operate perfectly well in all weather conditions including heavy rain and wind etc.
Are heat pumps safe and reliable?
All Heat pumps including air to water heat pump, water to water heat pump, swim pool heat pump etc are completely safe and a tried and tested technology. There are no hazardous gas emissions, no flammable oil, LPG or gas pipes, no unsightly fuel storage and no flues or chimneys with heat pump installations. There is no need for regular servicing or expensive annual safety checks, which can work well 10 to 15 years.
♥ Deeply thanks for reading, just contact ME to get more details and you are warmly welcome to visit DERON factory in anytime!
