Deron air to water heat pump 6P 21kw with copeland R417a compressor for house heating/ space cooling

FOB Price:

US 300-5,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Deron

Products Model:

DE-27W/BW

Products Details
Company Profile

Quick Details

Brand Name: Deron

Model Number: DE-27W/BW

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing:Ply-wood packing,no need fumigate!
Delivery Detail: 20-25 working days

Specifications

INTRODUCTION

EVI Low Ambient Air-Water Heat Pump is special designed for Low temperature area. It use Copeland ZW series EVI technology compressor, can work safely in -25°C.

Features:

1.Deron is one of the rare anthorized users of copeland ZW series EVI technology compressor, which is the latest innovation for heat pump products.

2.Tube in tube copper heat exchanger together with stainless steel heat exchanger , enhance energe utilization, improve effeciency badly.

3.Good workmanship for fixing the case with bolts and nuts, avoiding corrosion effectively.

4.Convenient: Intelligent indoor control panel with simple key operation.

5.Strict testing carried out for every unit before package in the factory.

6.Automatic defrosting.

Specification:

Model	DE-27W/BW
Power supply(V/ph/Hz)	220/1/50
* Heating capacity(kw)	11.6
* Rated power input(kw)	2.7
* Water speed feed(L/h)	250
* * Heating capacity(kw)	6
* * Power consumption(kw)	2.5
* * Water speed feed(L/h)	129
* * * Heating capacity(kw)	4.6
* * * Power consumption(kw)	2.6
* * * Water speed feed(L/h)	98
Refrigerant	R417a
Refrigerant weight(g)	2000 × 1
Max.current(A)	18.5
Rated water temp.(°C)	55
Max water temp.(°C)	60
Level against electric shock	I
Water proof grade	IPX4
Net weight(kg)	130
Net size(mm)	680 × 545 × 1055
Required water flow rate(m³/h)	2.2
Recommended tank cubage(t)	2-3
Water connection	G1"
Operation temp. range(°C)	-25 ~ 45
Noise dB(A)	≤55

Test condition: * Parameters 1 test condition: Heating: Ambient temp.(DB/WB):20°C/15°C,Water temp.(Initail/Final):15°C/55°C

* * Parameters 2 test condition: Heating: Ambient temp.(DB/WB): -15°C,Water temp.(Initail/Final):15°C/55°C

* * * Parameters 2 test condition: Heating: Ambient temp.(DB/WB): -25°C,Water temp.(Initail/Final):15°C/55°C

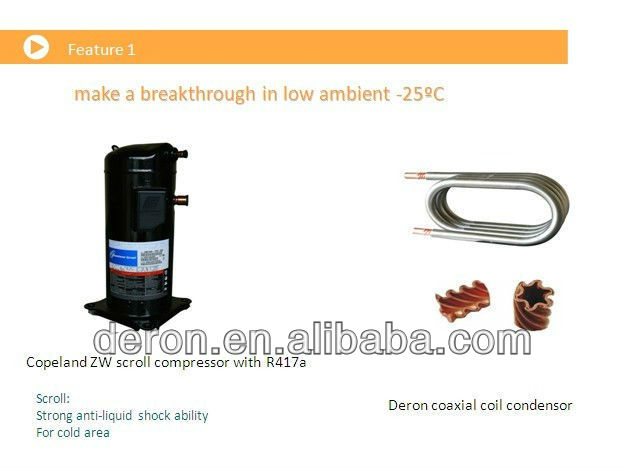

Main Components Show:

Certificate

Installation Sample

Welcome to visit my factory

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
