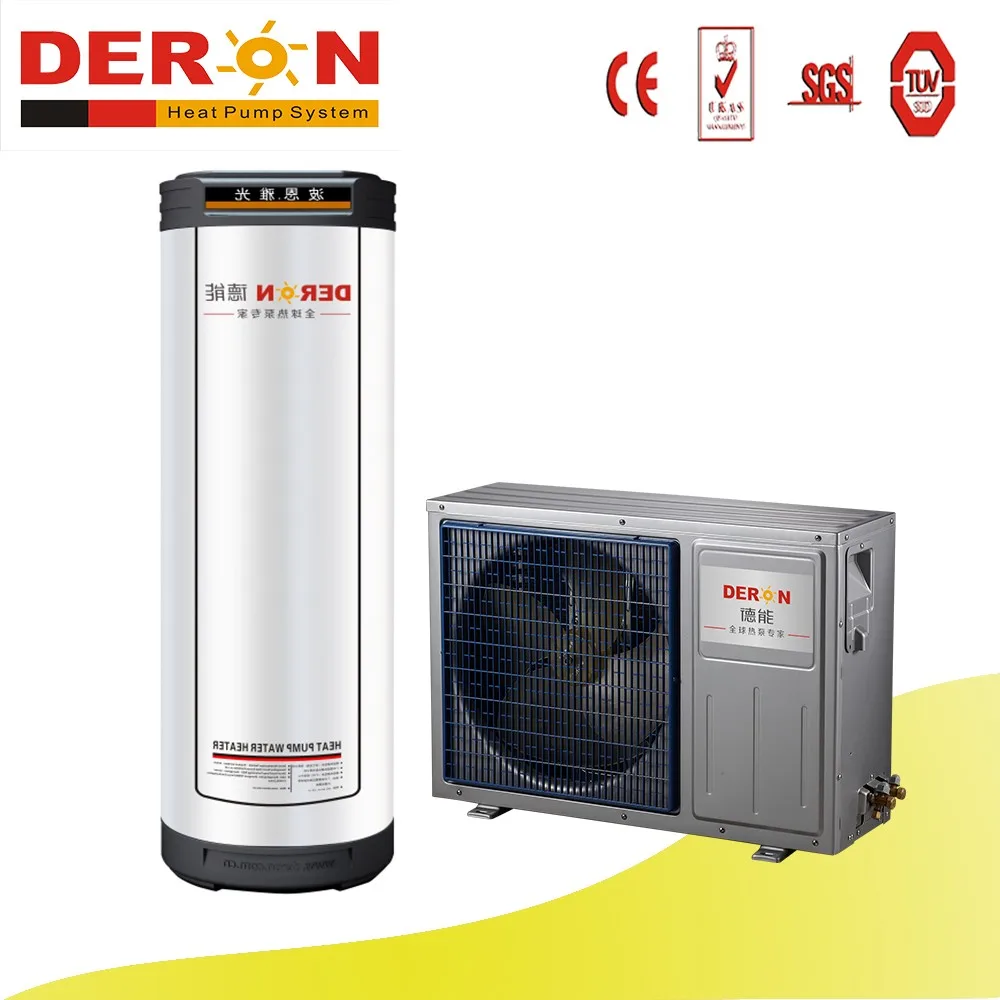

Split type air source water heater air to water converter heat pump for house hot water heating

FOB Price:

US 200-2,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Month

Port:

guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-100LW, DE-150LW, DE-200LW, DE-300LW,DE-400LW, DE-500LW

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-100LW, DE-150LW, DE-200LW, DE-300LW,DE-400LW, DE-500LW

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Carton package
Delivery Detail: 25 working days

Specifications

Split type air source water heater air to water converter heat pump for house hot water heating

Features:

1.Hot water outlet up to 60 DegC.

2. High COP up to 4.6. High efficiency tank heat insulation, extremely low heat loss.

3.Durable: Service life can reach up to 15 years. Low maintenance cost.

4.Safe: water-electricity separation technology, no creepage, completely safe.

5.All weather operation: Stable operation without being influenced by weather, even snow or rain.

6.Environment friendly: No pollution or waste discharged in entire working cycle.

7.Fashionable: The design is fashionable with durable coating in different colors, perfectly matching your house style.

8.Simple installation: It can be placed on the roof top, balcony, yard, or basement, no special room necessary.

9.Quiet: Low noise, no disturbance to owners and neighbours.

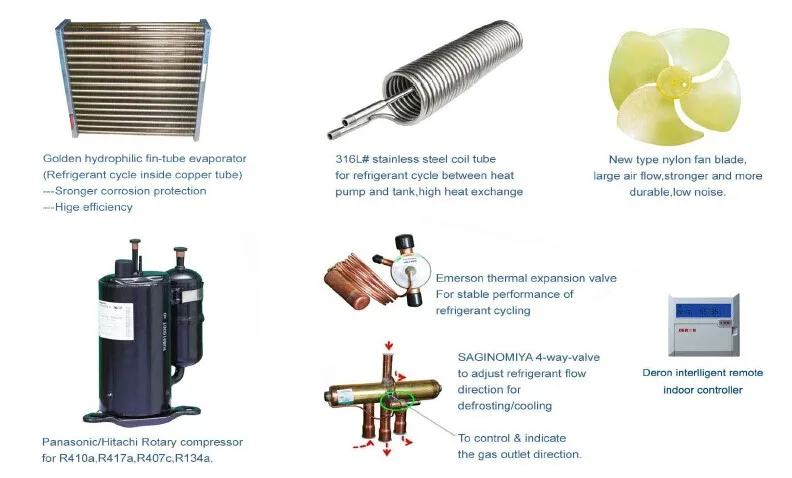

Main components:

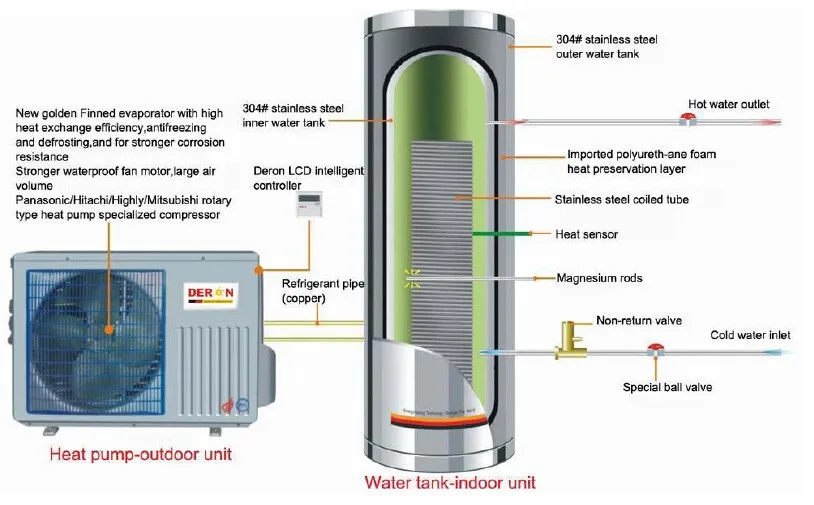

Structure views:

Technical Parameters:

Model			DE-100LW/AP DE-150LW/AP	DE-150LW/BP DE-200LW/BP DE-300LW/BP	DE-300LW/CP DE-400LW/CP	DE-500LW/DP
Power supply		V/Ph/Hz	220/1/50	220/1/50	220/1/50	220/1/50
Heating capacity		kW	3.4	4.8	7	10.8
Heating capacity		BTU	11601	16378	23884	36850
Rated power input		kW	0.85	1.2	1.8	2.7
Water feed speed		L/h	73	103	150	232
Refrigerant			R410A	R410A	R410A	R410A
Compressor		Type	Rotary	Rotary	Rotary	Rotary
Fan		Qty	1	1	1	1
Noise		dB(A)	≤45	≤48	≤50	≤52
Max. current		A	7	8	13	19.5
Level again electric shock			I	I	I	I
Water proof			IP×4	IP×4	IP×4	IP×4
Max. water temp.		℃	60	60	60	60
Operation temp. range		℃	-10-45	-10-45	-10-45	-10-45
Heat pump unit	Net weight	kg	30	34	40	55
Heat pump unit	Net size(L/W/H)	mm	800×260×530	800×260×530	800×260×530	835×380×710
Water tank	Net weight	kg	25	35/47/65	65/80	110
	Net size	mm	φ470×1010 Φ470×1470	φ470×1470 φ560×1250 φ470×1780	φ470×1780 φ700×1517	φ700×1870
	Water connection		G1/2"	G1/2"	G1/2"	G3/4"
Refrigerant connection pipes diameter		mm	φ6.35 & φ9.52	φ6.35 & φ9.52	φ9.52 & φ12.7	φ9.52 & φ12.7
Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in/out): 15℃/55℃;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

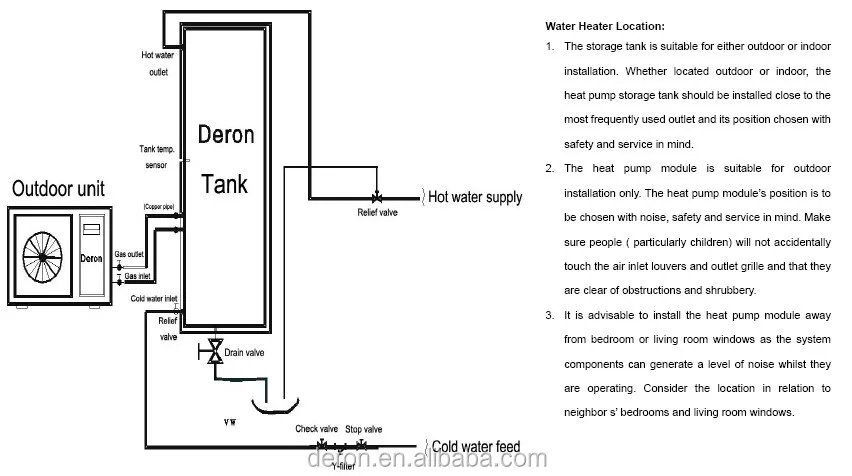

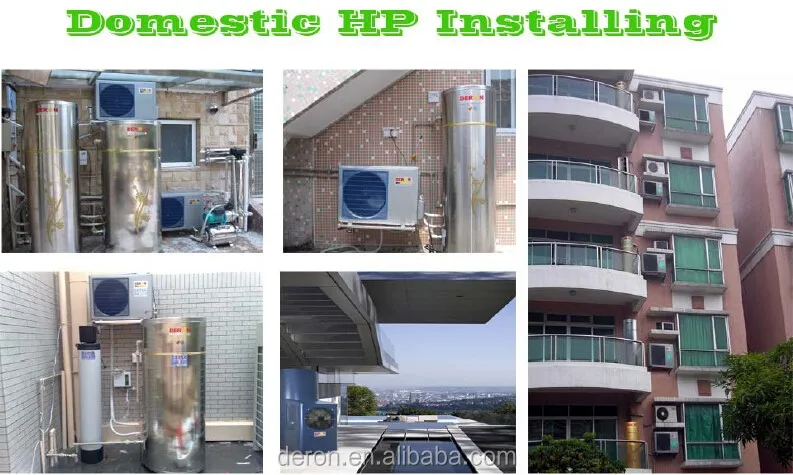

Installation reference:

Company information:

We are a golden supplier which has got certificate from TUV and alibaba.com.

1. Over 11 years of Heat pump production.

2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.

3. Got 3 National standard laboratories passed TUV certificate.

4. China Goverment procurement designated supplier.

5. Provide Professional and flexible OEM service.

Testing LAB:

Our promise:

--- Energy efficient
Reduce energy cost and greenhouse gas emission.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
