Deron air to water heat pump 38kw for domestic hot water space heating space cooling DE-92WD

FOB Price:

US 699-3,999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

300 Set/Sets per Month

Port:

China

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-92W/D

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-92W/D

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing with Ply-wood,no need fumigate.
Delivery Detail: Shipped in 30 days after payment

Specifications

Deron air to water heat pump 38kw for domestic hot water space heating space cooling DE-92WD

Air to water heat pump

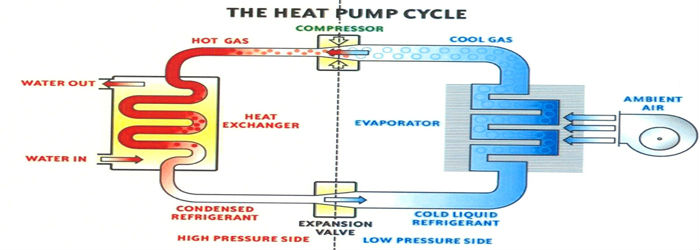

can provide efficient heating and cooling for your home, especially if you live in a warm climate. When properly installed, an air-source heat pump can deliver one-and-a-half to three times more heat energy to a home than the electrical energy it consumes. This is possible because a heat pump moves heat rather than converting it from a fuel like combustion heating systems do.

DE-92W/D Major components:

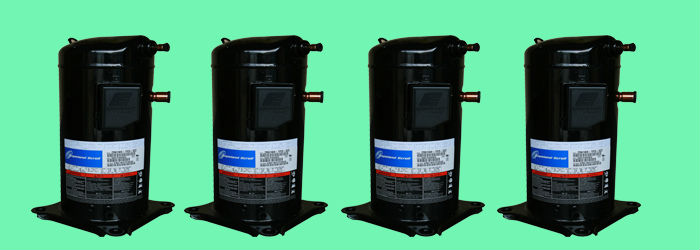

1.Copeland scroll compressor

2.Tube in tube Condeser.

3.Emerson expansion valve.

4.Saginomiya 4-way valve.

5.Taiwan Fuco pressure gauge.

6.DERON LCD controller.

Model		DE-92W/D
Power supply(V/ph/Hz)		380/3/50
*Heating capacity	kw	36.8
	BTU	125560
*Rated power input(kw)		9.2
**Heating capacity	kw	28.3
	BTU	96680
**Rated power input(kw)		7.5
Water feed speed(L/H)		825
Refrigerant		R417a
Refrigerant weight(g)		2300X2
Max.current(A)		25
Rared water temp.(°C)		55
Max.water temp(°C)		60
Level against electric shock		I
Water-proof grade		IPX4
Net weight(kg)		275
Net size(mm)		1200X920X1220
Required water flow rate(m3/h)		8
Required tank cubage		7-10
Water connection		G1-1/4"
Operation temp.range(°C)		-10-45
Noise dB(A)		≤65
Test condition		Heating: Ambient temp. (DB/WB):20°C/15°C, Water temp. (Initial/Final):15°C/55°C. *Heating: Ambient temp. (DB/WB):7°C/6°C, Water temp. (In/Out):30°C/35°C.

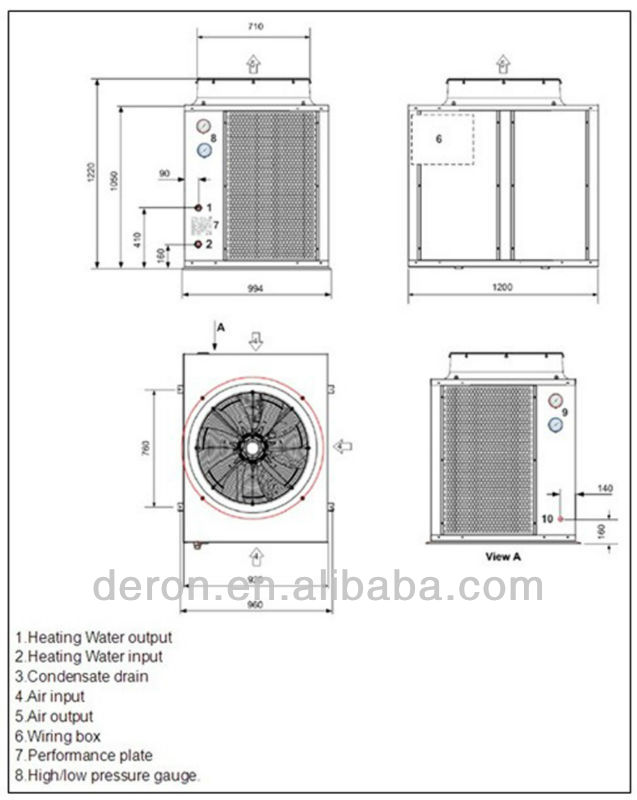

DE-92W/D DIMENSION:

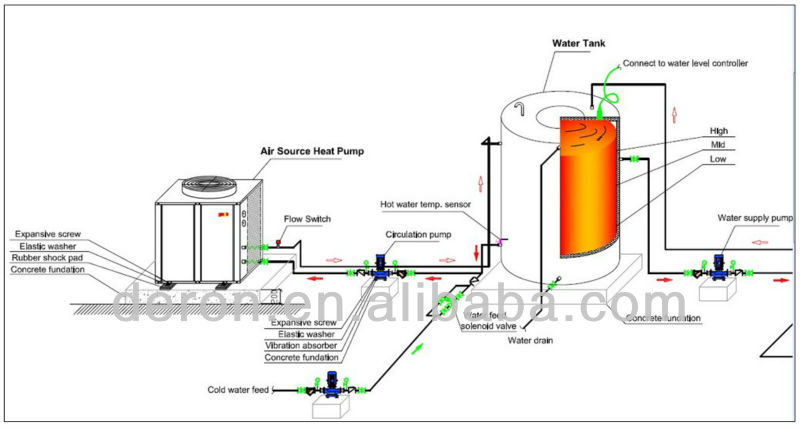

DE-92W/D INSTALLING DRAWING FOR HOT WATER SYSTEM:

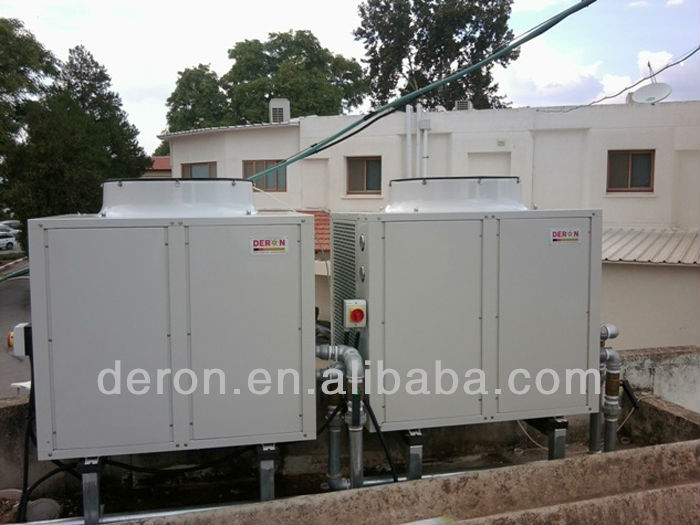

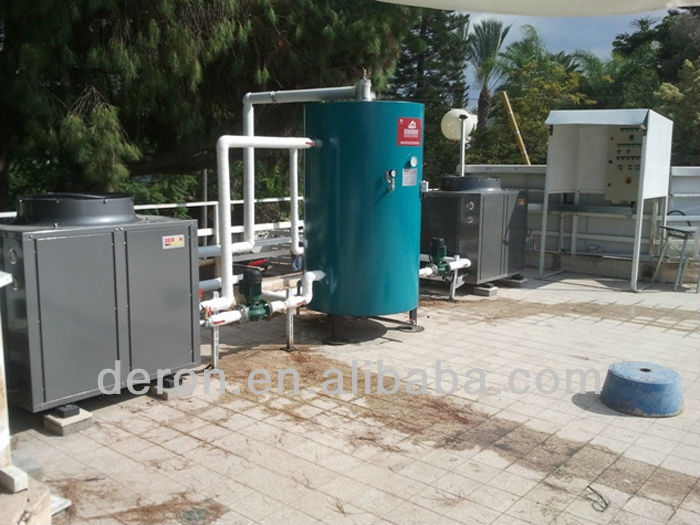

DE-46W/D INSTALLING SITE:

♥Feel free to contact us for more information, your questions are greatly appreaciated!
