Special design for cold area commmercial air to water heat pump evi monoblock heater for hot water heating

FOB Price:

US 399-4,999 / Piece

Min.Order Quantity:

3 Piece/Pieces

Supply Ability:

405 Piece/Pieces per Day

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON or OEM/ODM

Products Model:

DE-180W/DW-evi heat pump

Products Details
Company Profile

Quick Details

Brand Name: DERON or OEM/ODM

Model Number: DE-180W/DW-evi heat pump

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case.Fibre complex board-air source heat pump 10kw
Delivery Detail: 25 working days

Specifications

Special design for cold area commmercial air to water heat pump evi monoblock heater for hot water heating

Air Source EVI Heat Pump 80KW For Cold Area, air to water uinit(R407A with CE)

Evi heat pump introduction:

With advanced EVI(enhanced vapor injection) technology, Deron EVI heat pump can work stably at extremely low ambient temperature with high COP.Using free renewable energy from the air, the unit is highly efficient with low running costs. Its efficiency can be up to 3~4 times more than conventional air conditioners.

This type heat pump has a 2.5 COP at -15℃ with 60℃ hot water output and can safely work in -25℃outside air temperature.

Feature:

1) Adopts the most advanced low temperature enhanced vapors injection compressor technology. EVI heat pumps could work efficiently at -25C degree.

2) High efficient Copeland compressor with green gas R407C/R410A/R417A.

3). Automatic defrosting function included.

4).Max outlet water temperature: 60C.

5).Compact design with screw hiding cabinet.

6). both galvanized and stainless steel housing covers are available.

Main components:

Compressor:Copeland new designed scroll compressor with Gas injection increase enthalpy

Heat exchanger: Stainless steel plate heat exchanger & Coaxial Coil heat exchanger

Evaporator: Hydrophilic high efficiency fin-tube evaporator, Golden color

Expansion valves: Main thermal expansion valves & Spray thermal expansion valves

Electromagnetic valve: Emerson electromagnetic valve

Fan: FULIHUA fan with nylon fibred blades, durable, lower noise, longer life.

Controller: Deron self-designed multi-function digital control panel.

Parameter:

Model		DE-180W/DW
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	80
1)Heating capacity	BTU	272960
Rated power input	kW	18
2)Heating capacity	kW	65
2)Heating capacity	BTU	221780
Rated power input	kW	16.2
3)Heating capacity	kW	57
3)Heating capacity	BTU	194484
Rated power input	kW	16
4)Heating capacity	kW	41
4)Heating capacity	BTU	139892
Rated power input	kW	14.5
Refrigerant		R407C
Compressor	Type	Scroll
Fan	Qty	2
Required water flow rate	m3/h	16
Water connection		G2"
Max. current	A	49
Noise	dB (A)	≤68
Max. water temp.	℃	60
Operation temp. range	℃	-25-45
Net weight	kg	680
Net size(L/W/H)	mm	2200×1315×2150
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃;
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃;
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃;
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

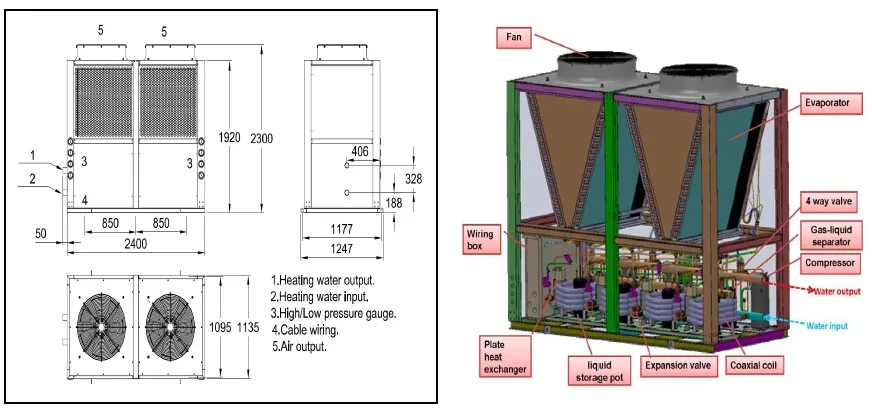

Structure view:

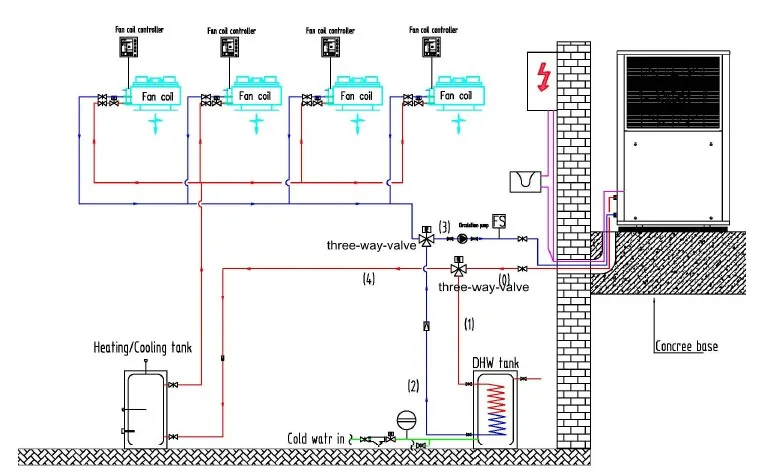

Installation reference:

Certificates:

Company information:

We are a golden supplier which has got certificate from TUV and alibaba.com.

1.Over 11 years of Heat pump production.

2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.

3. Got 3 National standard laboratories passed TUV certificate.

4. China Goverment procurement designated supplier.

5. Provide Professional and flexible OEM service.

Our promise:

--- Energy efficient

Reduce energy cost and greenhouse gas emission.

--- Safety

Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.

--- Convenience and economic

A perfect substitute for solar panels, electric & gas water heaters.

Can be installed where solar roof collectors aren’t suitable and looks better.

Less electricity and running cost, an ideal upgrade from the traditional water heaters.

---Strict quality control

ISO industry standards.

Standard & strict manufacture process.

Every product must be tested and double checked before package.

---Eligible for trade and distribution

CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.

---Customer orientation

DERON provide you optimized solutions and product customization as well as globalized customer services.

--- Satisfaction guarante

18 months warranty for air-to-water heat pumps and water-to-water heat pumps, and 24 months special for swimming pool heat pumps.

Please don’t hesitate, click right now! Deron is your best choice.

We welcome your visit to our factor

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
