Air To Water EVI split Heat Pumpfor room heating and hot water high COP in - 25C

FOB Price:

US 200-2,800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T

Brand:

Deron

Products Model:

DE-46W/CWS

Products Details
Company Profile

Quick Details

Brand Name: Deron

Model Number: DE-46W/CWS

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing. (Carton or Fibre complex board)
Delivery Detail: 20-30 working days

Specifications

EVI air to water split wall mounted heat pump

What’s Deron EVI heat pump?

With advanced EVI(enhanced vapor injection) technology, Deron EVI heat pump can work stably at extremely low ambient temperature with high COP.

This type heat pump has a 2.5 COP at -15℃ with 60℃hot water output and can safely work in -25℃outside air temperature.

What’s the detail?

Strong points:

»Indoor unit (Heat Exchanger and Circulation Pump)
   Better anti-freezing protection
---Avoid the condenser to be burst in the cold weather.
   Strict noise control.
---Sandwich noise insulation inside the cabinet
   Noise jacket for compressor to reduce noise mostly
   High efficient, lower heat dissipates.
» Outdoor unit (compressor, 4-way valve, Expansion valve, evaporator   and fan)
---Thermostatic heating element for evaporator anti-frosting protection
---The water connections and the drain pipelines need to be protected against frost on site
» Auxiliary electronic heater is on your option
» Fashionable design, compact structure, saving the place
» Quiet, lower the noise when the unit is running
» Advance control panel
Timer function, automatic defrosting function, optional electrical heating, and error messages showed for warning.

Structure:

Main components:

Compressor:Copeland new designed scroll compressor with Gas injection increase enthalpy

Heat exchanger: Stainless steel plate heat exchanger & Coaxial Coil heat exchanger

Evaporator: Hydrophilic high efficiency fin-tube evaporator, Golden color

Expansion valves: Main thermal expansion valves & Spray thermal expansion valves

Electromagnetic valve: Emerson electromagnetic valve

Fan: FULIHUA fan with nylon fibred blades, durable, lower noise, longer life.

Controller: Deron self-designed multi-function digital control panel.

Parameter:

Model	-	DE-46W/CWS
Rated heating capacity +7°C/35°C *	kW	15
Rated cooling capacity *	-	8
Rated absorbed power	kW	3.7
Rated COP		4
Rated heating capacity -7°C/35°C* *	kW	10.5
Rated absorbed power	kW	3.5
Rated COP	-	3
Electrical supply	-	380/3/50
Rated current	A	7
Recommended MCCB Intdoor unit	A	21
Recommended MCCB Outdoor unit	A	13
R407C refrigerant	g	5000
Type of compressor	-	Scroll
Dimension Indoor unit (w x l x h)	mm	500260880
Dimension Outdoor unit (w x l x h)	mm	12003501260
Built-in heater - Power	kW	3
Expansion vessel capacity	L	10
Minimum/maximum water capacity of system **	L	300~2000
Winter / Summer operating limits	-	‘-25~45
Max. water outlet temperature	-	60
Indoor unit sound power/pressure ***	dB(A)	<30
Outdoor unit sound power/pressure ***	dB(A)	<52
1)Heating*: Ambient temp.(DB/WB):7C/6℃,Water out 35℃;
2)Heating*: Ambient temp.(DB/WB):-7C/-8℃,Water out 35℃;
3)Cooling*:Ambient temp.(DB/WB):35C/25℃,water out 7℃

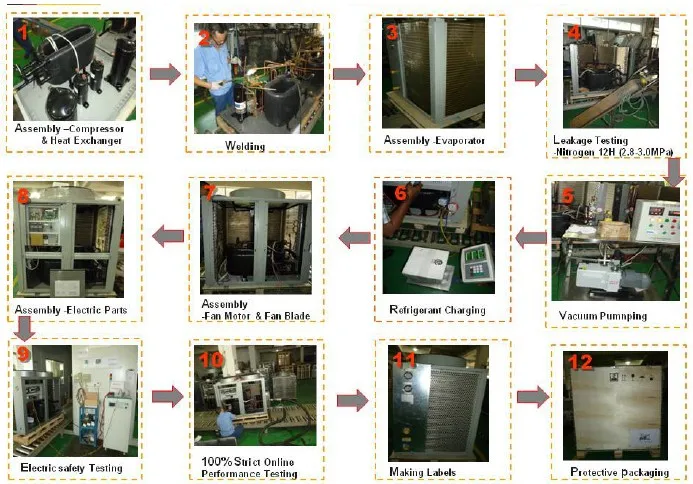

Key process:

We conduct strict process to ensure high quality of heat pump.

Package & Delivery

Installation scene

Certificates:

Quality control:

1) Complying with ISO9001 quality system.

2) TUV attestation for laboratory.

3) Using world famous Copeland compressor.

4) Complete Inspection covering water system and electricity, ensuring stable hot water production.

5) Equipped with high efficient compressor jacket for heat preservation.
6) Electric Expansion valve with accurate flow control and gas distribution.

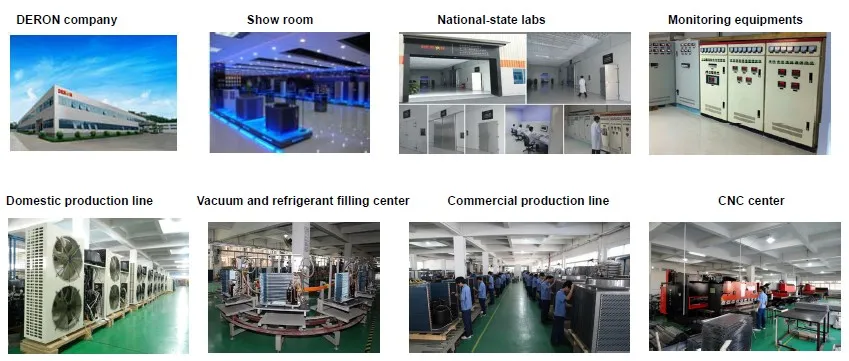

Our company story:

Profile

Deron is a national key heat pump enterprise of nine years professional experience in Guangzhou, China. We owns a production centre of 30,000 square meters, producing air to water heat pumps, water to water heat pumps and swimming pool heat pumps, including over 100 models vary from 0.8kw to 250kw. We introduced advance producing and testing equipments from Italy, Japan, USA and Germany covering 3 CNC lines, 3 bending lines, 2 welding lines, 3 automatic production lines and 3 TUV certificated laboratories, which is able to test the heat pump under EN 14511 standard. Our products work to provide space heating, space heating or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc. Deron heat pumps have been verified by ISO9001 international quality management system. Most of the heat pump products have gained CE, TUV, CB, EMC, CCC and SABS certifications. Deron is “Chinese Top Ten Heat Pump Water Heater Brands” and has established cooperation partnership with Emerson USA. Deron heat pumps have been exporting to most of the countries in the world, such as Finland, Russia, Denmark, England, Germany, Poland, France and etc.

Deron is a national key heat pump enterprise of nine years professional experience in Guangzhou, China. We owns a production centre of 30,000 square meters, producing air to water heat pumps, water to water heat pumps and swimming pool heat pumps, including over 100 models vary from 0.8kw to 250kw.

We introduced advance producing and testing equipments from Italy, Japan, USA and Germany covering 3 CNC lines, 3 bending lines, 2 welding lines, 3 automatic production lines and 3 TUV certificated laboratories, which is able to test the heat pump under EN 14511 standard. Our products work to provide space heating, space heating or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.

Deron heat pumps have been verified by ISO9001 international quality management system. Most of the heat pump products have gained CE, TUV, CB, EMC, CCC and SABS certifications. Deron is “Chinese Top Ten Heat Pump Water Heater Brands” and has established cooperation partnership with Emerson USA.

Deron heat pumps have been exporting to most of the countries in the world, such as Finland, Russia, Denmark, England, Germany, Poland, France and etc.

Clients & Staff

Exhibition

Why will you choose Deron?

Our promise:
--- Energy efficient
Reduce energy cost and greenhouse gas emission.
--- Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.
--- Convenience and economic
A perfect substitute for solar panels, electric & gas water heaters.
Can be installed where solar roof collectors aren’t suitable and looks better.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict quality control
ISO industry standards.
Standard & strict manufacture process.
Every product must be tested and double checked before package.
---Eligible for trade and distribution
CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.
---Customer orientation
DERON provide you optimized solutions and product customization as well as globalized customer services.
--- Satisfaction guarantee
18 months warranty for air-to-water heat pumps and water-to-water heat pumps and 24 months special for swimming pool heat pump.

Looking forward to hearing from you,.

Deron is your best choice.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
