Slovakia -25C winter EVI tech floor heating 100sq meter room 12kw/19kw auto defrost heat pump and air conditioner

FOB Price:

US 599-2,000 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

999 Piece/Pieces per Month

Port:

Guangzhou, China

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-27W/CW

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-27W/CW

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: ply wood case
Delivery Detail: 25 woking days

Specifications

Slovakia -25C winter EVI tech floor heating 100sq meter room 12kw/19kw auto defrost heat pump and air conditioner

Model: DE-27W/CW

There has been over 10 years of heat pump manufacture experience by Deron!

Product Description

Series Introduction

1.This series of air source EVI heat pump is specially designed for house heating in chilly climate areas. It can be applied to sanitary hot water for bathroom or central heating for house where safe working at temp -25 deg.C to 45deg.C.

2. Adopting the most advanced low- temperature Enhanced Vapors Injection compressor technology.

3. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 deg.C during cold winter time.

Features

1)Power supply: 380V/3ph/50(60)Hz.

2) Reliable EVI compressor with R407c refrigerant.

3) Extremely compact structure and good demount ability.

4)Galvan magnetic reverse valve and expansion valve are included.

5)Water flow switch is optional .

6) Water exchanger equipped with high efficiency tube in tube& plate heat exchanger.

7) Air exchanger(fins-coil) with hydrophilic coating.

8) Adjustable defrosting according to different weather conditions (with four way valve inside).

9) Thermostatic heating element for evaporator anti-frosting protection .

10) Fully sealed control box with water proof level IPX4.

11) Optional auxiliary electric heater or solar heater control function is inside, as a standby of heat pump.

12) Anti-corrosion case: durable coating case or stainless steel case; all case with stainless steel bolts and nuts.

Adopting excellent components, guarantee the best quality!

Parameters List

EVI Air-to-water Heat Pump Series
EVI Air-to-water Heat Pump Series
Model		DE-27W/CW	DE-46W/CW	DE-46W/DW
Power supply	(V/ph/Hz)	380/3/50	380/3/50	380/3/50
*Heating capacity	(kW)	11.6	19.8	19.8
*Heating capacity	(BTU)
*Rated power input	(kW)	2.7	4.6	4.6
Water feed speed	(L/h)	215	425	425
Test condition		*Ambient temp.(Dry Bulb/Wet Bulb): 20°C /15°C, Water temp.(in /out): 15°C/55°C.
**Heating capacity	(kW)	5	9	9
**Heating capacity	(BTU)
**Rated power input	(kW)	2.25	4.1	4.1
Water feed speed	(L/h)	107	193	193
Test condition		** Ambient temp.: -15°C, Water temp.(in /out): 15°C/55°C.
***Heating capacity	(kW)	4.6	8	8
***Heating capacity	(BTU)
***Rated power input	(kW)	2.2	4	4
Water feed speed	(L/h)	98	172	172
Test condition		***Ambient temp.: -25°C, Water temp.(in /out): 15°C/55°C.
Refrigerant		R407C
Refrigerant weight	(g)	2000	2500	2500
Compressor	(type)	Scroll
Compressor	(number)	1	1	1
Fan	(type)	Axial flow type with Nylon fan blade
	(discharging)	Vertical
	(number)	1	1	1
	(air flow)(m3/h)	3200	5000	5000
Evaporator		Aluminium/Cu lamellar tube evaporator
Condenser (heat exchanger)		Coaxial coil heat exchanger (Copper Tube-in- Steel Tube)
Economizer		Stainless steel plate
Throttling device		Emerson thermal expansion valve
Controller		Indoor Digital Controller
Required water flow rate	(m3/h)	2.2	4	4
Water connection		G1"	G1"	G1"
Required tank cubage	(t)	2-3	3-5	3-5
Max. current	(A)		13	13
Noise	dB (A)	≤60	≤64	≤64
Level again electric shock		I	I	I
Water proof		IPX4	IPX4	IPX4
Max. water temp.	(°C)	60	60	60
Operation temp. range	(°C)	-25-45	-25-45	-25-45
Net weight	(kg)	130	175	175
Net size-(LWH)	(mm)	950X570X1480	950X570X1480	870X830X1125
The technical data above are for reference only and the accurate data should be subject to the actual testing report or nameplate

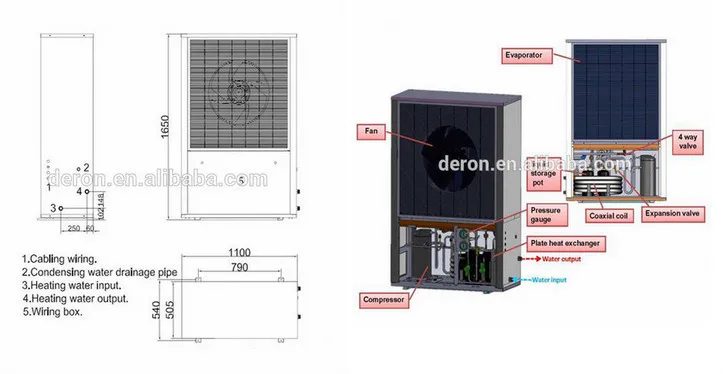

Dimension (mm) and Structure

Certificates

Strict Producing Line

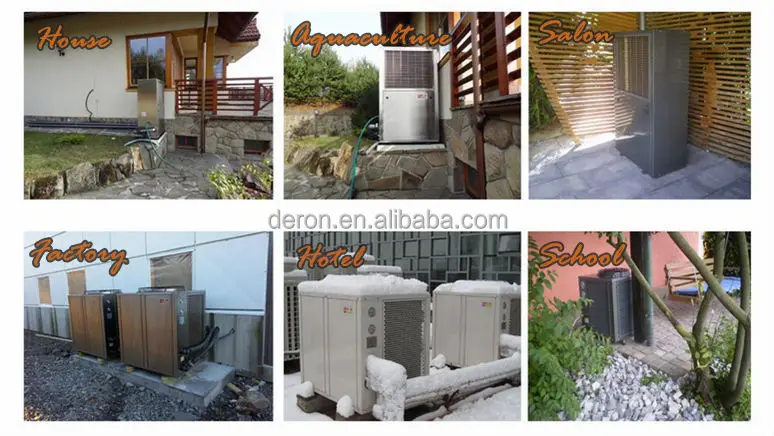

Installation Case

Company Information

Guangzhou Deron Heat Source Facilities Co.,Ltd is among the earliest companies to establish the heat pump R&D center in China, the factory area is 30,000 m2 and has about 300 employees, and its production capacity up to 120,000,000.00US dollars per year. Its national heat pump laboratory has been approved by TUV Germany. The company is also the strategic partner of Emerson-Copland Company from America.

All Deron heat pumps are processed with strict management system to ensure the quality and consistency. All the heat pumps like air to water heat pumps, water to water heat pumps, sell well in the global market.

R&D Center

Three World-class Laboratories approved by TUV and EN14511 in Deron.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
