High Cop cold area air source evi heat pump evi instant water heater for heating cooling

FOB Price:

US 499-3,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

800 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Deron

Products Model:

DE-92W/DW

Products Details
Company Profile

Quick Details

Brand Name: Deron

Model Number: DE-92W/DW

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing:Ply-wood packing,no need fumigate!
Delivery Detail: 30 working days

Specifications

High Cop cold area air source evi heat pump evi instant water heater for heating cooling

EVI Low Ambient Air-Water Heat Pump is special designed for Low temperature area. It use Copeland ZW series EVI technology compressor, can work safely in -25°C.

Features:

1.Deron is one of the rare anthorized users of copeland ZW series EVI technology compressor, which is the latest innovation for heat pump products.

2.Tube in tube copper heat exchanger together with stainless steel heat exchanger , enhance energe utilization, improve effeciency badly.

3.Good workmanship for fixing the case with bolts and nuts, avoiding corrosion effectively.

4.Convenient: Intelligent indoor control panel with simple key operation.

5.Strict testing carried out for every unit before package in the factory.

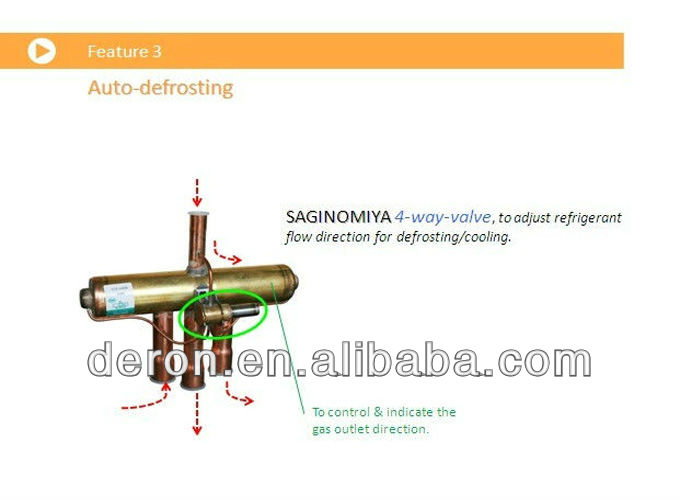

6.Automatic defrosting.

Specification:

Model		DE-92W/DW
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	40
1)Heating capacity	BTU	136480
Rated power input	kW	9.2
2)Heating capacity	kW	32.5
2)Heating capacity	BTU	110890
Rated power input	kW	8.3
3)Heating capacity	kW	28.2
3)Heating capacity	BTU	96218
Rated power input	kW	8.2
4)Heating capacity	kW	20.5
4)Heating capacity	BTU	69946
Rated power input	kW	7.6
Refrigerant		R407C
Compressor	Type	Scroll
Fan	Qty	1
Required water flow rate	m3/h	8
Water connection		G1-1/4"
Max. current	A	25
Noise	dB (A)	≤65
Max. water temp.	℃	60
Operation temp. range	℃	-25-45
Net weight	kg	320
Net size(L/W/H)	mm	1200×970×1425
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃;
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃;
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃;
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

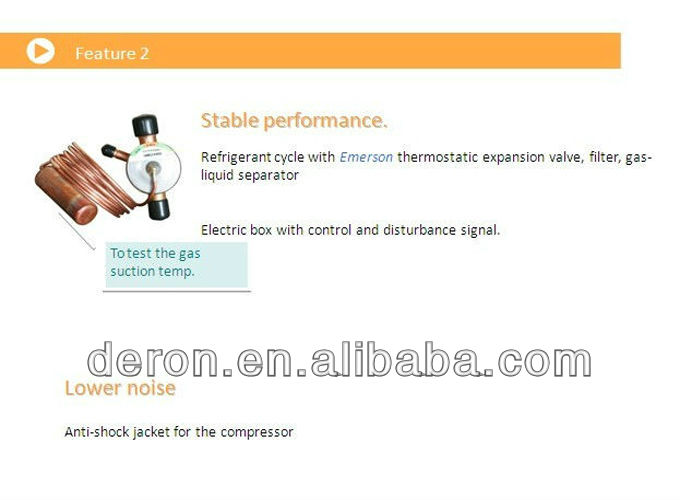

Main Components Show:

Certificate:

Quality control:

1) Complying with ISO9001 quality system.

2) TUV attestation for laboratory.

3) Using world famous Copeland/Daikin compressor

4) Complete Inspection covering water system and electricity, ensuring stable hot water production.

5) Equipped with high efficient compressor jacket for heat preservation.

6) Electric Expansion valve with accurate flow control and gas distribution.

Installing Case:

Company Information:

we are a golden supplier which has got certificate from TUV and alibaba.com.

1. Over 8 years of Heat pump production.

2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.

3. Got 3 National standard laboratories passed TUV certificate.

4. Has a branch office in Frankfurt Germany.

5. Provide Professional and flexible OEM service.

Exhibition:

Our promise:

--- Energy efficient
Reduce energy cost and greenhouse gas emission.

--- Safety

Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.

--- Convenience and economic

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
