Energy saving EVI low ambient air source heat pump water heater with efficient in -25 degree

FOB Price:

US 500-4,998 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

1356 Unit/Units per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON / Your OEM brand

Products Model:

DE-46W/CWF

Products Details
Company Profile

Quick Details

Brand Name: DERON / Your OEM brand

Model Number: DE-46W/CWF

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package,carton or plywooden package.
Delivery Detail: 20~25working days

Specifications

Energy saving EVI low ambient air source heat pump water heater with efficient in -25 degree

Air source EVI heat pump have adopted Enhance Vaporating Injection technologies,which enble the heat pump to work at low ambient temperature.

EVI heat pump's compressor is different than the traditional type compressor,it has two gas inject holes,and one gas discharge hole.

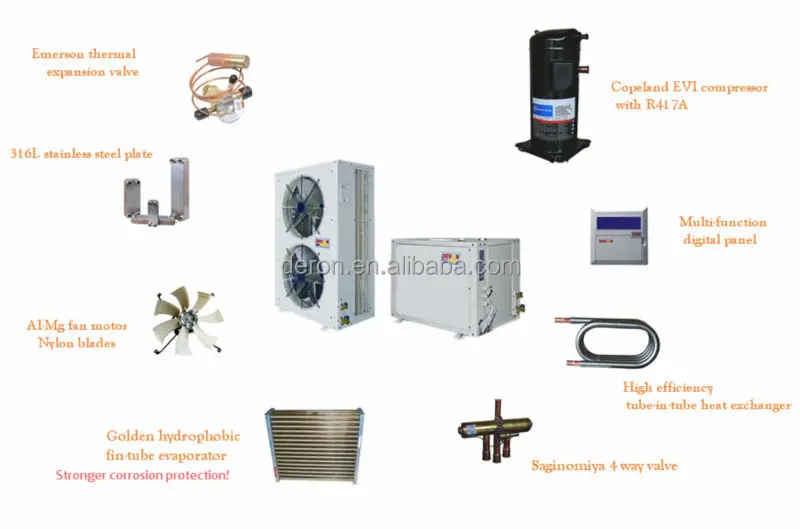

»Indoor unit mainly includes condenser, 4-way valve and expansion valve.

Avoid the condenser to be burst in the cold weather, better anti-freezing proctection
High efficient, lower heat dissipate

» Outdoor unit comprises evaporator, fan and compressor.

Thermostatic heating element for evaporator anti-frosting protection
The water connections and the drain pipelines must be protected against frost on site
compressor outside ,to reduce noise mostly inside the house.

»Auxiliary electronic heater or solar coiler is on your option

» Fashionable design, compact structure, saving the place.

»Quiet, lower the noise when the unit is running

»Advance control panel. Timer function , automatic defrosting function, optional electrical heating, error messages showed for warning.

»It can be work in -25°C low ambient temperature.

Hot water output temperature up to 60°C, for domestic hot water or heating.

Auto-defrosting function included. And cooling is optional

Item	Model	DE-46W/CWF
Performance Data	Power Supply	380V 3N~/50Hz
	*Heating Capacity (W)	19000
	*Heating Power Input (W)	4600
	**Heating Capacity (W)	10200
	**Heating Power Input (W)	4300
	Refrigerant/weight (g)	R407C/5000
-	Circulation Pump Water Flow (m3/h)	4
Operation Condition	Max. Discharge Pressure (MPa)	3
	Max. Suction Pressure (MPa)	1.2
	Level against Electric Shock	I
	Water-proof Grade	IPX4
	Noise dB (A)	≤60
	Indoor Unit Weight (kg)	130
	Outdoor Machine Weight (kg)	30
	Indoor Unit Size (mm)	800X600X625
	Outdoor Unit Size (mm)	8004501265
Test condition	*Ambient temp.(DB/WB):20℃/15℃;Water temp.(Initial/Final):15℃/55℃
Test condition	**Ambient temp.(DB/WB): -15℃;Water temp.(Initial/Final): 15℃/55℃

Warranty: 18 months for the whole unit

Company Information

Deron is a national key heat pump enterprise in Guangzhou, China. We devote to researching and producing high quality heat pump products. Our products work to provide space heating, space cooling or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.

Deron has introduced advance producing and testing equipments from Italy, Japan, USA and Germany. Such as 3 CNC lines, 3 bending lines, 2 welding lines, 3 automatic production lines and 3 TUV certificated laboratories, which is able to test the heat pump under EN14511 standard. Moreover, the laboratories are able to simulate the ambient temperature down to -30℃ for testing the air to water heat pump under different conditions. And meanwhile able to test the geothermal heat pump at different water source or brine source.

Deron heat pumps have been verified by ISO9001 quality system. Most of the heat pump products have gained CE, CB,EMC, RoHS, CCC, SABS certificates,and STANDARDSMARK LICENCE and WATERMARK issued by SAI Global Australia.

Deron is regarded as “ Chinese Top Ten Heat Pump Water Heater Brands” and have established cooperation partnership with Emerson USA.

Deron heat pumps have been exporting to most of the countries in the world, such as Finland, Russia, Denmark, England, Germany, Poland, France, Spain, Italy, Turkey, Israel, South Africa, Indonesia, Thailand, Malaysia, Philippines, Taiwan, Canada, Chile and ect.

Deron will strive to exceed expectations and boost the enterprise of energy conservation and environment protection as we insist all the time.

Deron heat pump R&D center mainly comprises a passionate R&D team of 28 technicians and 3 advanced laboratories. The labs have imported sophisticated equipment from Italy, USA and so on by investing more than USD1.6 million and approved by TUV for cooperating according to EN14511 standards. They make it possible to test EVI air to water heat pump even in -25℃ low ambient area, and applied to test air source heat pump and water/ground source heat pump. Deron R&D center provide a strong assurance for heat pump search and application.

l While you are considering

We provide free consolation on the model of heat pump system, system design, and cost estimation that can be suit for your needs.

l After you purchase the product

The first installation can be carried out by us, by sending engineers to your country helping you with the installation, in a safe and efficiency manner. Not familiar with how to work with the system yet? Don’t worry, we offer training on how to operate the system so that you can make the best use of your heat pump.

l Satisfaction guarantee:

There is an 18 months warrantee for the whole air-to-water heat pump.

Come to us.

We’ll provide you optimized efficient solutions, as well as globalized customer services.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
