swimming pool heat pump swim pool heat pump for heating pool sanitary hot water or cooling European American Dubai style

FOB Price:

US 1,860-2,540 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1200 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-27W/DY

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-27W/DY

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Export packaging: good wood board or carton box
Delivery Detail: 25 working days after T/T deposit

Specifications

swimming pool heat pump swim pool heat pump for heating pool sanitary hot water or cooling European American Dubai style

Model	DE-27W/DY	DE-36W/DY	DE-46W/DY	DE-52W/DY	DE-75W/DY	DE-92W/DY	DE-105W/DY	DE-150W/DY	DE-180W/DY	DE-225W/DY	DE-270W/DY
Power supply(V/ph/Hz)	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Compressor rated power(kw)	2.7	3.6	4.6	5.2	7.5	9.2	10.5	15	18	22.5	27
Heating capacity(kw)	11	14.5	18	22	31	39	46.5	62	74	110	148
Power input(kw)	1.9	2.7	3.1	3.7	5.5	6.7	8.2	11.3	13.5	20	27
Refrigerant	R417A
Refrigerant weigh(g)	1850	2000	2300	2500	2200*2	2300*2	2500*2	2300*3	2300*4	2500*4	3450*4
Max.current(A)	7.5	10	13	15	21	25	30	25	29	37	49
Rated water temp.(℃)	28	28	28	28	28	28	28	28	28	28	28
Level against electric shock	I	I	I	I	I	I	I	I	I	I	I
Water-proof grade	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Net weight(kg)	90	120	130	140	260	250	290	495	622	670	893
Net size(mm)	700690860	8007801000	8007801000	8007801000	12009201225	12009201225	12009201425	204611801750	240011302300	240011302300	240014002300
Required water flow rate(m3/h)	4.5	6	7.5	9	12	15	15	18	20	25	30
Water connection(mm)	50mm	50mm	50mm	50mm	63mm	63mm	63mm	90mm	90mm	110mm	110mm
Operation temp.range(℃)	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45	-10-45
Noise dB(A)	≤60	≤64	≤64	≤64	≤65	≤65	≤65	≤68	≤68	≤68	≤68
Test condition	Ambient temp.(DB/WB):20℃/15℃ Water temp.(Initial/Final):15℃/28℃

Features:

Brief introduction:

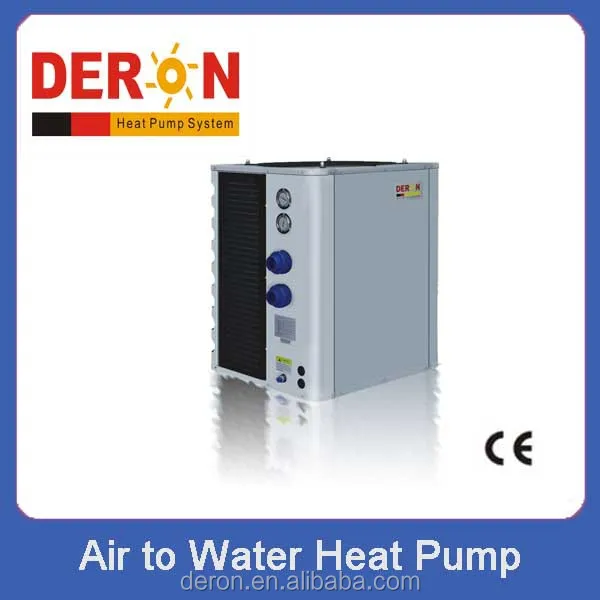

1. Deron swimming pool/spa heat pump applies the heat pump technology

which moves heat from the surroundings into the pool/spa water to keep a comfortable temperature (heating or cooling) for people.

2. The adoption of pure titanium heat exchanger, not only because of its superb resistance to corrosive water, but also its higher heat exchanger rate. It's widely used in house, villa,

and hotel swimming pool etc..

3. This unit could be installed in outdoors,

as floating support for compressor to reduce vibration at the most extent and noise insulation inside the cabinet as well as noise jacket for compressor.

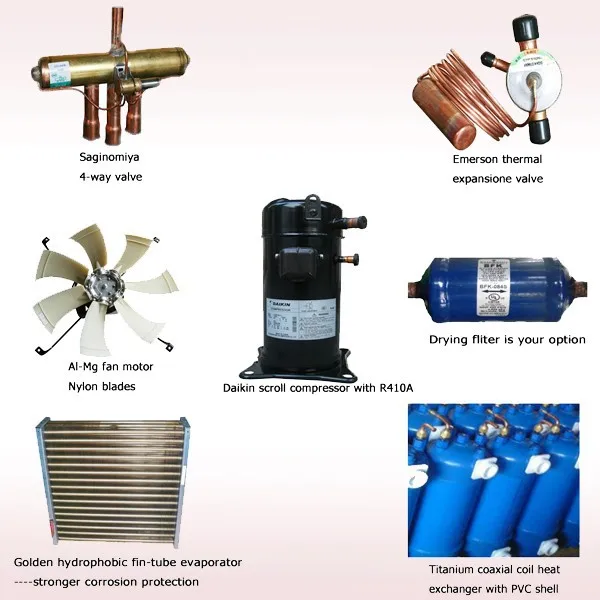

4.The compact design heat pump is built-in Copeland or Daikin scroll type compressor,Titanium-in-PVC heat exchanger (swimming pool use, max output water temp.

up to 45℃)or titanium-in-steel(tube in tube titanium) heat exchanger(spa use, max. output water temp. up to 60℃),

5. Emerson thermal expansion valve and Saginomiya four-way valve to ensure it work smoothly and efficiently.

Why Choose Us?

1) More than 9 years heat pump manufacturer;

2) Materials are inported from USA ans japan, reliable to the end.

3) OEM& ODM; One-stop service; from design to packaging;

4) Strong R&D ability ( New products will be dasigned each year)

Model: DE-150LW/BP Model: DE-92W/D Model: DE-36WB

Model: DE-92W/DK Model: DE-46W/DY Model: DE-46W/S

Guangzhou Deron Heat Source Facilities Co., Ltd. is one of national key enterprises in Panyu Energy-saving Science & Technology Industrial Park. The company devotes to researching heat pump technique independently, and specializes in manufacturing energy-efficient heat pump and hot water unit, mainly for guesthouses, hotels, schools, offices, factories, hospitals and family villas all over the world, to provide energy-saving central heating and hot water systems solution, of which the rate can be 75% or higher.

Production Line:

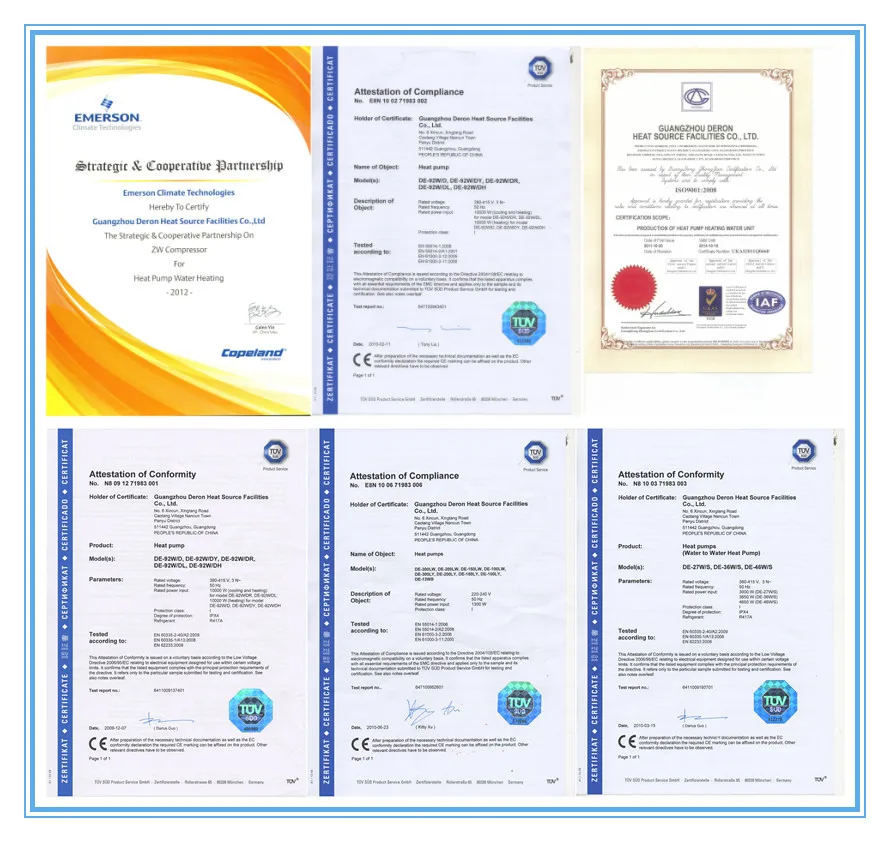

Certifications:

Contact us for more information about heat pump!

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
