Brand Name: Deron
Model Number: DE-13W/CY
Place of Origin: Guangdong, China (Mainland)
swimming pool heat pump pool heating heat pump pool heater
Model: DE-27W/CY
Deron swimming pool heat pump applies the heat pump technology which move heat from the surroundings into the pool/spa water to keep a comfortable temperature for people. The adoption of pure titanium heat exchanger, not only because of its superb resistance to corrosive water, but also its higher heat exchanger rate. It's widely used in house, villa, and hotel swimming pool.These units have got CE approval.
1) The 100% titanium heat exchanger use seamless pure titanium tube as heat conductor, can ensure the titanium heat exchanger used for a long time without any cost in the after-sale services.
2) The well-known brand throttling device-Emersonexpansion valve are included, it can control the refrigerant flow accurately.
3) Adjustable defrosting according to different weather conditions (with four way valve inside).
4)Water flow switch is optional .
5) Special design for the fan shroud, with accurate and equal distance between the fan blades and the fan shroud, low vibration, and low noise when running.
6)Compact design and accurate workmanship for fixing the case with bolts and nuts, no damage to the case coating, avoiding corrosion and rust to the case.
7) Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection, water flow protection, over high pressure protection, over low pressure protection insufficient water flow protection etc.
8) General testing and operational test carried out for every unit to ensure the superior quality and feature before well package in factory.
9) Modular and diversifying design: We can add on more units or design heat pumps according to customers’ requirement.
Model | DE-13W/CY | DE-18W/CY | DE-27W/CY | |
Power supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 |
Heating capacity | kW | 4.8 | 7.1 | 11 |
BTU | 16378 | 24225 | 37532 | |
Power input by heating | kW | 1.1 | 1.5 | 2.3 |
Cooling capacity | kW | 3.7 | 5.3 | 7.5 |
BTU | 12624 | 18084 | 25590 | |
Power input by cooling | kW | 1.4 | 1.9 | 2.8 |
Refrigerant | R410A | R410A | R410A | |
Required hot water flow rate | m3/h | 2 | 3 | 4.5 |
Water connection diameter | mm | 50 | 50 | 50 |
Noise | dB(A) | ≤48 | ≤48 | ≤48 |
Max. current | A | 9.5 | 13 | 7.2 |
Compressor | Type | Rotary | Rotary | Rotary |
Fan | Qty | 1 | 1 | 1 |
Rated outlet water temp. | °C | 28 | 28 | 28 |
Max. water temp. | °C | 45 | 45 | 45 |
Operation temp. range | °C | -10-45 | -10-45 | -10-45 |
Net weight | kg | 58 | 67 | 84 |
Net size(L/W/H) | mm | 1005×305×620 | 1005×305×620 | 1115×425×715 |
Heating by Ambient temp.(DB/WB):20°C /15°C and Water temp.(in /out): 15°C/28°C; | ||||
Cooling by Ambient temp.(DB/WB):35°C /24°C and Water temp.in 28°C; | ||||
Above information just for your reference, Please subject to the nameplate on the unit | ||||
Refrigerant is optional |
WHY DERON HEAT PUMP?
---Energy efficient
Reduce energy cost and greenhouse gas emission.
---Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.
--- Convenience and economic
Modern heat pump water heaters, replacing for solar panels and electric/gas water heaters.
Can be installed where solar roof collectors aren’t suitable and looks better.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict quality control
ISO industry standards.
Standard &strict manufacturing process.
Every product must be tested and double checked before package.
---Eligible for trade and distribution

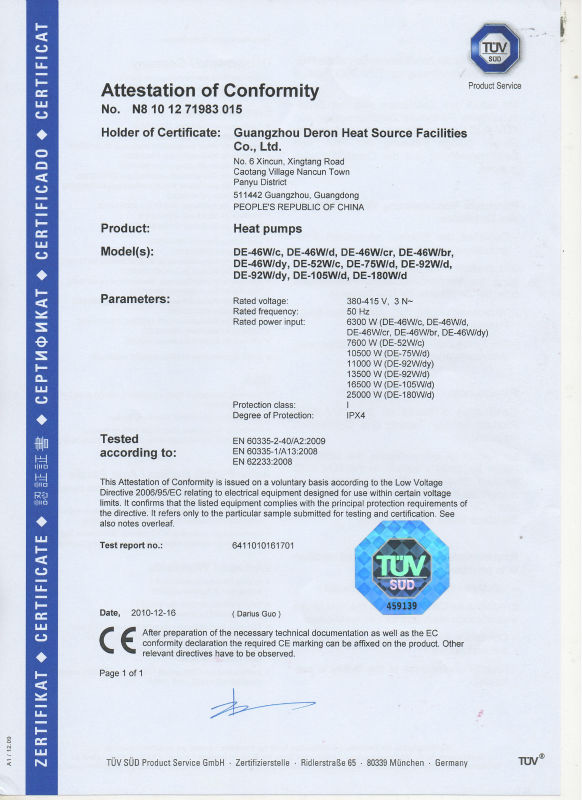

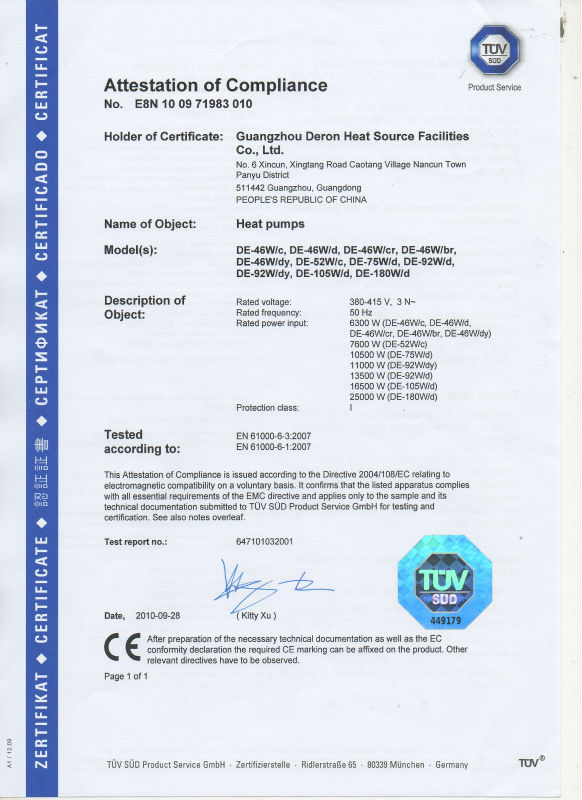

CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.
---Customer orientation
DERON provide you optimized solutions and product customization as well as globalized customer services.
--- Satisfaction guarantee
18 months warranty for air-to-water heat pumps and water-to-water heat pumps, and 24 months special for swimming pool heat pumps.
