geothermal heat pump bathroom equipment water source equipment for small business at home palestine with Daikin compressor

FOB Price:

US 680-6,800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1200 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T

Brand:

Deron

Products Model:

DE-46W/S

Products Details
Company Profile

Quick Details

Brand Name: Deron

Model Number: DE-46W/S

Place of Origin: Guangdong, China (Mainland)
Type: Water Source Heat Pump, geothermal heat pump
Installation: Freestanding
Storage / Tankless: Storage
Housing Material: coated steel/304# stainless steel
Use: Residence, Hotel, Hospital / School
Certification: CB, CE, ISO9001
Power supply: 380V/3PH/50HZ
Heating Capacity: 11.6KW
Rated power input: 2.3KW
Compressor: Daikin compressor/ Copeland compressor
Refrigerant: R410A/R407C/R417A
Max. water output: 60℃
water source temperature range: -5℃-35℃
Noise: ≤40dB(A)
warranty: 18 months

Packaging & Delivery

Packaging Details: Standard export package,carton or plywooden package
Delivery Detail: within 27 working days upon receipt of 30%T/T as deposit

Specifications

geothermal heat pump bathroom equipment water source equipment for small business at home palestine with Daikin compressor

Water source heat pump features:

1) Safety: Eliminated the problems of traditional normal water generator.

2) Reliable: Service life can reach up to 15 years. Low maintenance cost.

3)All weather operation: Running without being effected by weather, even snow or rain.

4)Environment protection: No pollution and waste needs to discharge in entire working cycle.

5) Economy: The running costs of a heat pump can be less than those of a traditional gas boiler heating system.

6) The working fluid transfers the heat energy from water(ground or lake or river water) into water to where it is needed.

7) Stable water flow switch .

8) Adjustable defrosting according to different weather conditions.

9) Modular design: We can add on more units according to user’s requirement.

Water source heat pump main components:

Parameter:

Model		DE-46W/S
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	20
1)Heating capacity	BTU	68240
Rated power input	kW	4.6
2)Heating capacity	kW	18.5
2)Heating capacity	BTU	63122
Rated power input	kW	3.7
3)Cooling capacity	kW	15
3)Cooling capacity	BTU	51180
Rated power input	kW	3.6
Refrigerant		R410A
Compressor	Type	Scroll
Required hot water flow rate	m3/h	4
Required water source flow rate	m3/h	3.2
water connection		G1"
Noise	dB(A)	≤42
Max. current	A	13
Max. water output temp.	℃	60
Water source temp. range	℃	5~35
Net weight	kg	120
Net size(L/W/H)	mm	700×620×850
1)Heating by Water Source temp.(In/Out):15℃ /7℃ and Water temp. (In/Out):15℃/55℃;
2)Heating by Water Source temp.(In/Out):10℃ /7℃ and Water temp. (In/Out):30℃/35℃;
3)Cooling by Water Source temp.(In/Out):25℃ /30℃ and Water temp. (In/Out):12℃/7℃;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

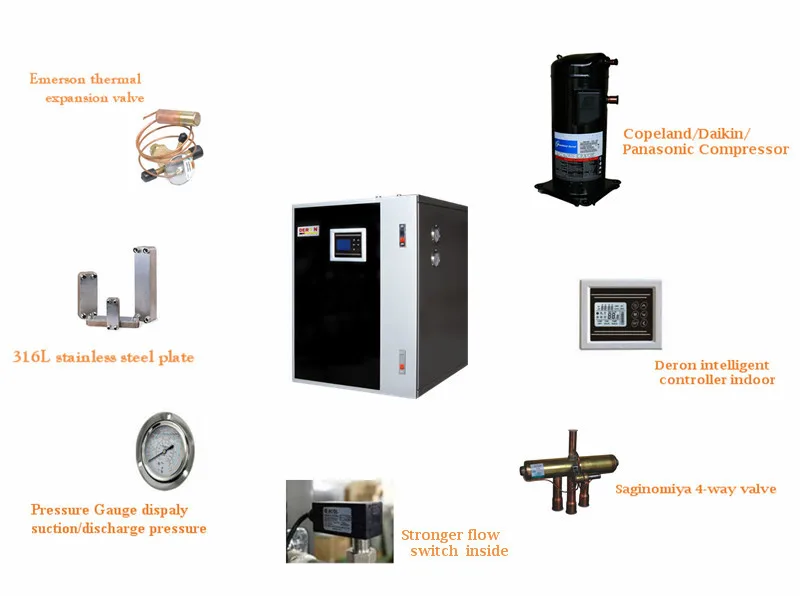

Internal structure:

Certificates:

Quality control:

1) Complying with ISO9001 quality system.

2) TUV attestation for laboratory.

3) Using world famous Copeland/Daikin compressor

4) Complete Inspection covering water system and electricity, ensuring stable hot water production.

5) Equipped with high efficient compressor jacket for heat preservation.

6) Electric Expansion valve with accurate flow control and gas distribution.

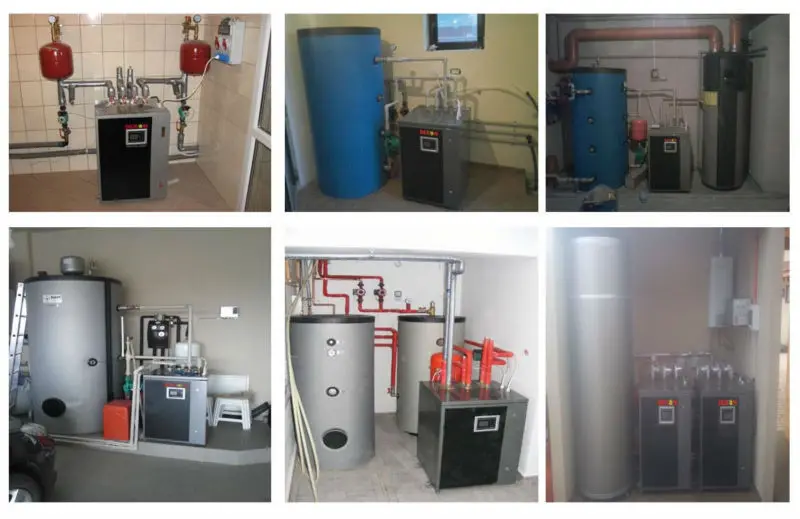

Installation scene:

Package & Delivery:

Delivery Time: 25 working days after receipt of T/T deposit

Company information:

we are a golden supplier which has got certificate from TUV and alibaba.com.

1. Over 8 years of Heat pump production.

2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.

3. Got 3 National standard laboratories passed TUV certificate.

4. Has a branch office in Frankfurt Germany.

5. Provide Professional and flexible OEM service.

Exhibition:

Our promise:

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
