Guangzhou Deron High temperature air source heat pump 54 kw made in china

FOB Price:

US 2,499-8,999 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

1000 Unit/Units per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T

Brand:

Deron

Products Model:

DE-46W/DG

Products Details
Company Profile

Quick Details

Brand Name: Deron

Model Number: DE-46W/DG

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: complex fibre board or wooden case
Delivery Detail: 35-40 days

Specifications

Product Description

Guangzhou Deron High temperature air source heat pump 54 kw made in china

High temperature heat pump

Model: DE-180W/DG

Feature:

1.Max. water temperature is up to 80 °C, and 40~80 °C is adjustable

2.High COP . Up to 3.5, when Ambient temp.: 20degree, Water input: 15degree, water output:80degree

3.Eco-friendly refrigerant: R134A.

4.Auto- defrosting function included (with reverse cycle valve inside).

5.High quality guarantee. Every unit will be in general test and operational test before package

6. Make sure the units work smoothly, including water flow protection, over high pressure protection,

over low pressure protection etc.

What’s the detail?

Strong points:

• Compact Water/water heat pump for outside installation.

• With suction gas cooled Copeland/Dakin scroll compressor.

• With extensive aluminum/Cu lamellar tube evaporator and coaxial condenser.

• Refrigerant cycle with thermostatic expansion valve, filter, gas-liquid separator, high and low pressure switches.

• With efficient automatic defrosting by hot gas principle.

• Electric and terminal box with control and disturbance signaling.

• Heating regulator for mounting to the wall.

• Filled with eco-friendly refrigerant R134a.

• Anti-corrosion: durable coating; special case design by using stainless steel bolts and nuts.

• Strict noise control: floating support and jacket for compressor

Components:

Parameter:

Model		DE-180W/DG
Power supply	V/Ph/Hz	380/3/50
Heating capacity	kW	54
Heating capacity	BTU	184248
Rated power input	kW	18
Water feed speed	L/h	741
Refrigerant		R134A
Compressor	Type	Scroll
Fan	Qty	2
Required water flow rate	m3/h	16
Water connection		G2"
Required tank cubage	t	15-20
Max. current	A	49
Noise	dB (A)	≤68
Level again electric shock		I
Water proof		IP×4
Max. water temp.	℃	80
Operation temp. range	℃	-10-45
Net weight	kg	680
Net size(L/W/H)	mm	2200×1135×2150
Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/80℃;
Above information just for your reference, Please subject to the nameplate on the unit

Warranty:18 months for the whole unit

Key process:

We conduct strict process to ensure high quality of heat pump.

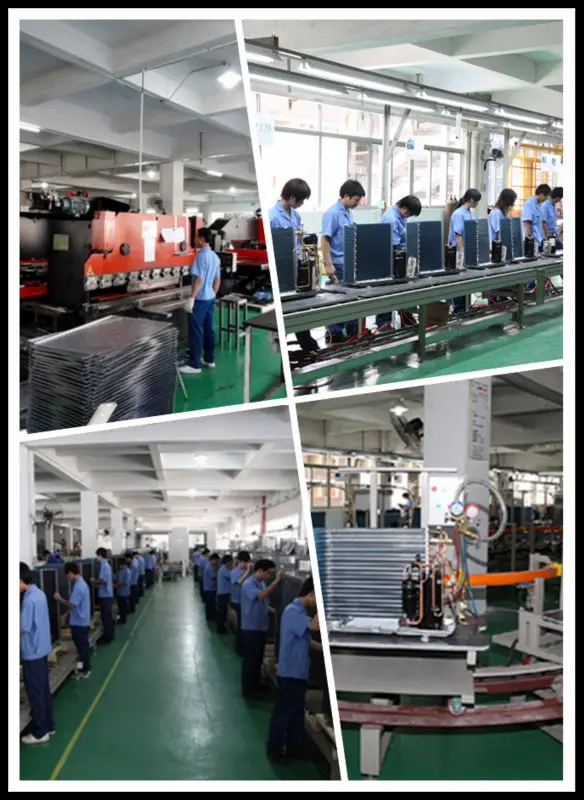

Production line:

Package & Delivery

Installation scene

Certificate

Quality control:

1) Complying with ISO9001 quality system.

2) TUV attestation for laboratory.

3) Using world famous Copeland/Dakin compressor

4) Complete Inspection covering water system and electricity, ensuring stable hot water production.

5) Equipped with high efficient compressor jacket for heat preservation.

6) Electric Expansion valve with accurate flow control and gas distribution.

Our Exhibition

About Us

Packaging & Shipping

Our Services

we are a golden supplier which has got certificate from TUV and alibaba.com.

1. Over 8 years of Heat pump production.

2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.

3. Got 3 National standard laboratories passed TUV certificate.

4. Has a branch office in Frankfurt Germany.

5. Provide Professional and flexible OEM service.

Our promise:

--- Energy efficient
Reduce energy cost and greenhouse gas emission.

--- Safety

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
