Deron domestic all in one heat pump water heater, air source hot water heat pump Integrated

FOB Price:

US 399-1,600 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

1000 Unit/Units per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

DERON

Products Model:

DE-340LY

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-340LY

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: complex fibre board or wooden case
Delivery Detail: 20~25 days

Specifications

Deron domestic all in one heat pump water heater, air source hot water heat pump Integrated

Model: DE-340LY

Brief introduction:

This all in one heat pump water heater is designed for producing sanitary hot water for family.

Combined with 200L stainless steel casing water tank, the heat pump is not only easier for installation, but also durable. As its compact design, the unit could be installed in indoor.

The heat pump water heater is available to offer up to 60deg.C hot water, in the meantime, electrical heater or solar boiler is optional to build in as a back up heater.

Feature:

1.It works in the range of -10~45°C,

2.Hot water output temperature up to 60°C, for domestic hot water.

3.auto-defrosting function included.

4.Eco-friendly refrigerant: R417A/R410A/R134A/R407C

5. It is adopted of world famous brand components, e.g. Panasonic or Mitsubishi compressor, Emerson thermal expansion valve as throttling device instead of capillary tube, etc. So it works more efficiently and smoothly.

6.Auxiliary electric heater or solar coiler is optional as a back up heater.

7.Comprehensive protection .

Anti-freezing protection, Water flow protection, Over high pressure protection, Over low pressure protection etc.

8.Anti-corrosion case: durable coating case or stainless steel case; all case with stainless steel bolts and nuts.

9.Every heat pump must be tested to guarantee the good quality and feature before package.

10.Warranty: 1.5 years

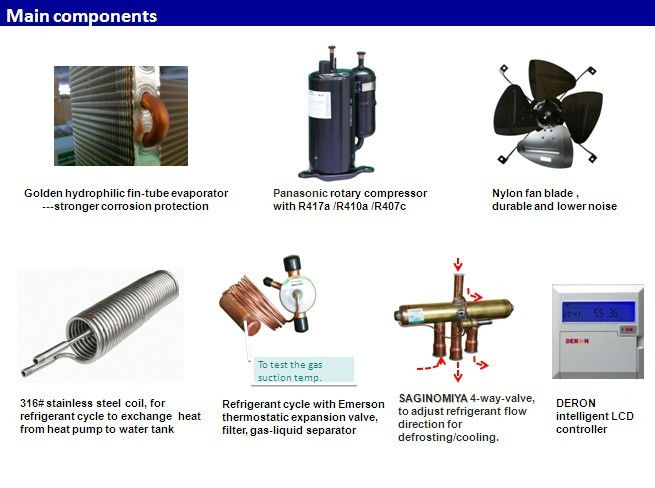

Components:

Parameter:

Model		DE-340LY
Power supply	V/Ph/Hz	220V/1ph/50Hz
Heating capacity	kW	3.6
	BTU	12283
Rated power input	kW	0.95
Water feed speed	L/h	77
Refrigerant		R134A
Max. current	A	7
Compressor	Type	Rotary
Fan	Qty	1
Condenser (heat exchanger)		Enamel tank with copper coil outside
Capacity of the tank	L	340
Water connection		G3/4"
Max. water tank pressure	kPa	850
PT valve operation pressure	kPa	850
PT valve operation temp.	℃	95
Noise	dB(A)	<52
Level again electric shock		I
Water proof		IP×4
Max. water temp.	℃	65
Operation temp. range	℃	0~43
Net weight	kg	170

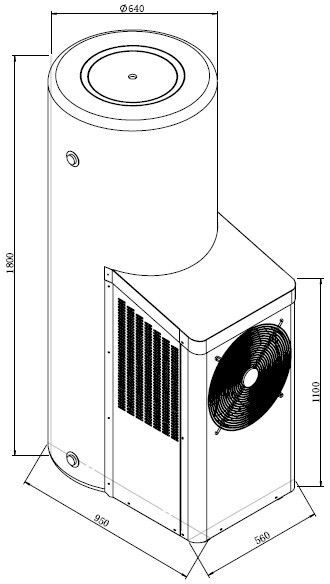

Net size(L/W/H)	mm	880×650×1865
Heating by Ambient temp:(DB/WB):20°C/15°C and Water temp.(Inlet/Outlet): 15°C/55°C;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

Warranty: 18 months for the whole unit

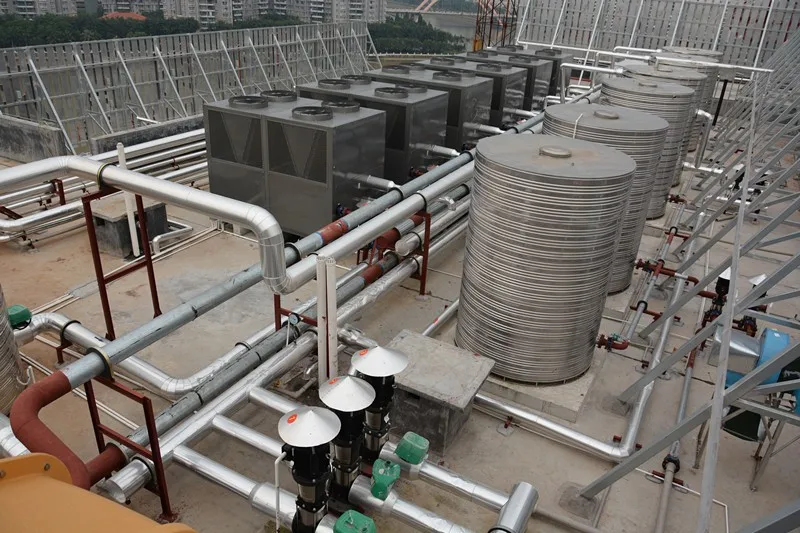

installation case:

exhibition:

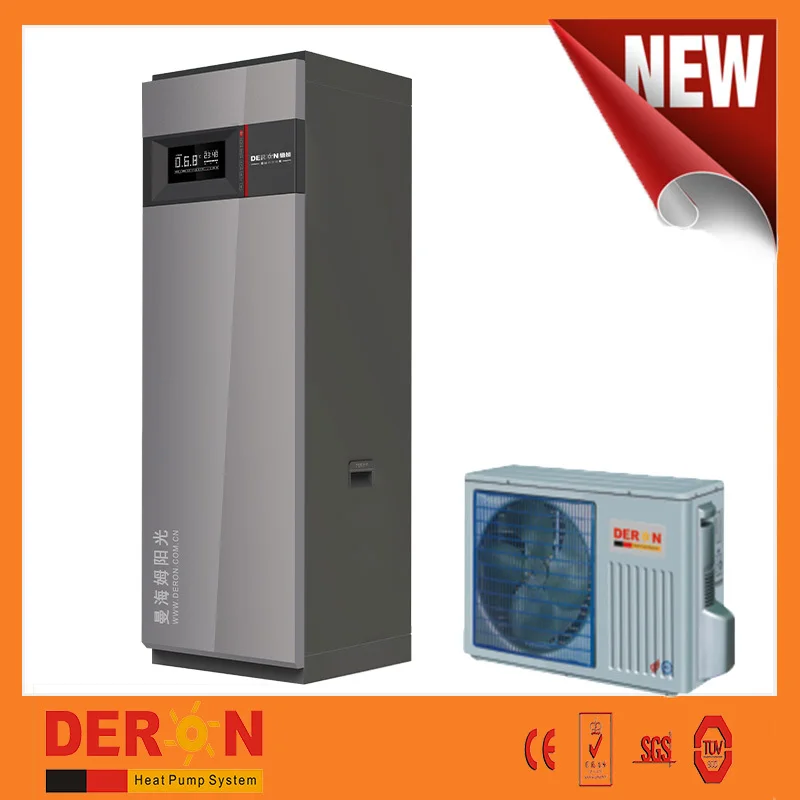

more new products made by DERON --->

Welcome to contact us for more details!

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
