all in one bathroom units air to water heat exchanger well product from China

FOB Price:

US 400-3,000 / Piece

Min.Order Quantity:

3 Piece/Pieces

Supply Ability:

600 Piece/Pieces per Day

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-150LY

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-150LY

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case.Fibre complex board
Delivery Detail: in 27 days after receiving deposit

Specifications

all in one bathroom units air to water heat exchanger well product from China

Case material: ABS plastic for the top, coated steel for the cylinder part

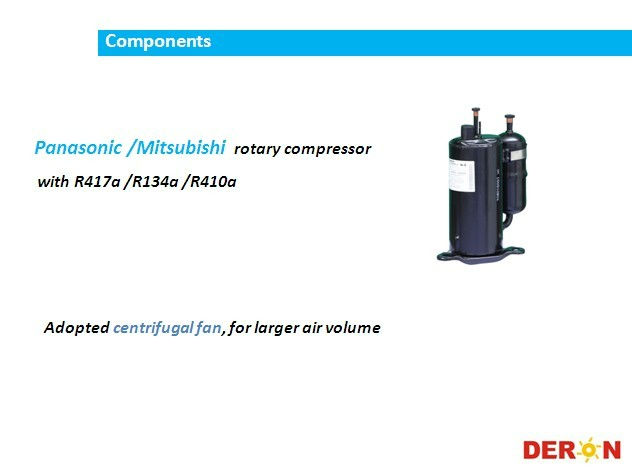

Panasonic rotary compressor with R417a or R410a
Adotped centrifugal fan for more excellent performance
Fashinable and compact design
3.4kw, three models: 100L, 150L, 200L storage

European style all in one unit

--Special for Kitchen

--Absorb heat from kitchen to make hot water
--Cold air from heat pump for Kitchen Cooling

Parametres:

ALL IN ONE HEAT PUMP

Model		DE-340LY
Power supply	V/Ph/Hz	220V/1ph/50Hz
Heating capacity	kW	3.6
	BTU	12283
Rated power input	kW	0.95
Water feed speed	L/h	77
Refrigerant		R134A
Max. current	A	7
Compressor	Type	Rotary
Fan	Qty	1
Condenser (heat exchanger)		Enamel tank with copper coil outside
Capacity of the tank	L	340
Water connection		G3/4"
Max. water tank pressure	kPa	850
PT valve operation pressure	kPa	850
PT valve operation temp.	℃	95
Noise	dB(A)	<52
Level again electric shock		I
Water proof		IP×4
Max. water temp.	℃	65
Operation temp. range	℃	0~43
Net weight	kg	170
Net size(L/W/H)	mm	880×650×1865
Heating by Ambient temp:(DB/WB):20°C/15°C and Water temp.(Inlet/Outlet): 15°C/55°C;
Above information just for your reference, Please subject to the nameplate on the unit
Refrigerant is optional

Test condition

* Ambient temp. (DB/WB): 20°C/15°C, Water temp. (Initial/Final): 15°C/55°C;
** Ambient temp. (DB/WB): 7°C/6°C, Water temp. (Initial/Final): 15°C/55°C.

Factory view

CERTIFICATES

Welcome to contact us for further information about heat pump!

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
