Deron all in one heat pump DE-340LY with Enamel tank(hot water or floor heating)(CE,Sai Global)

FOB Price:

US 400-2,000 / Set

Min.Order Quantity:

2 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON or OEM brand

Products Model:

DE-340LY

Products Details
Company Profile

Quick Details

Brand Name: DERON or OEM brand

Model Number: DE-340LY

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package,carton or plywooden package.
Delivery Detail: within 25 working days upon receipt of 30%T/T as deposit

Specifications

Patented product
Portable 340liter enamel tank
SAI Global/Water Mark certificate
Low noise
Convenience for installation

Deron new type domestic all in one heat pump DE-340LY with Enamel tank(hot water or floor heating)

----Austrilia Standard,with SAI GLOBAL certificate

Feature:

1.Deron new patented products.

2.Supply hot water for shower,kitchen or barbershop use.

3. Copper tube heat exchanger wrapped outside the inner enamel tank, avoiding the water from getting pollution. High efficiency heat insulation foam filled between the internal tank and external tank.

4. Combined water tank (340 liter) and heat pump mainframe together, more convenient in installation.

5. Strict noise control, floating support for compressor to reduce vibration at the most extent. Sandwich noise insulation inside the cabinet and noise jacket for compressor to reduce noise mostly.

6. Maximum water temperature reaches 60°C~ 65°C with R134a refrigerant.

Advantage:

1. Conveninet: Intelligent remote controller indoor, with simple key operation.
2. Multiple protections for the whole heat pump, guaranteeing safe operation.
3. All weather operation: stable operation without being influenced by weather.
4. Simple installation: rooftop, balcony, yard or basement can be suitable places for the installation.
5. Quiet: low noise, no disturbance to owners and neighbours.
6. Fashionable: Fashionable design matching your house style.
7. The water tank can be powder coating or stainless steel type, according to your requirement.
8. Durable: long service life up to 15 years, Extremely low maintenance cost.

Main components:

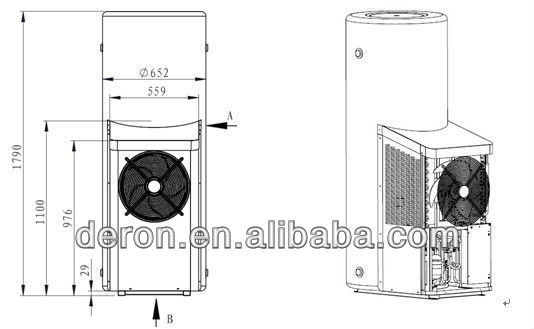

Dimension drawing:

Parameter list:

Model	DE-340LY
Power(V/ph/Hz)	220~240/1/50(60)
Heating capacity(Kw)	3.6
Water feed speed(L/H)	7.7
Rated power input(Kw)	0.95
Refrigerant/Weight(g)	R134a/1600
Max.current(A)	7
Max.water pressure(Mpa)	0.8
Rated water temp.(°C)	60
Operation temp. range(°C)	-5~45
Level against electric shock	I
Water -proof grade	IP*4
Water connection	G3/4"
Noise(dBA)	<52
Net weight(kg)	170
Net size(mm)	8806501865
Ambient temp:(DB/WB):20°C/15°C,Watet temp.:(Initial/final)20°C/60 °C . The above data is for reference only,the specific data should be subject to the product nameplate.

Installation diagram/VIew:

Certificate:

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
