DERON factory most selling commercial heating pump heat pump, hight cop central water heaters and Dryer

FOB Price:

US 300-5,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

3000 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON/ OEM brand

Products Model:

DE-92W/DG

Products Details
Company Profile

Quick Details

Brand Name: DERON/ OEM brand

Model Number: DE-92W/DG

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Fibre complex board/ ply-wood package
Delivery Detail: Shipped in 20 days after payment

Specifications

DERON FACTORY MOST SELLING COMMERCIAL HEAT PUMP, HIGHT COP CENTRAL WATER HEATERS AND DRYER

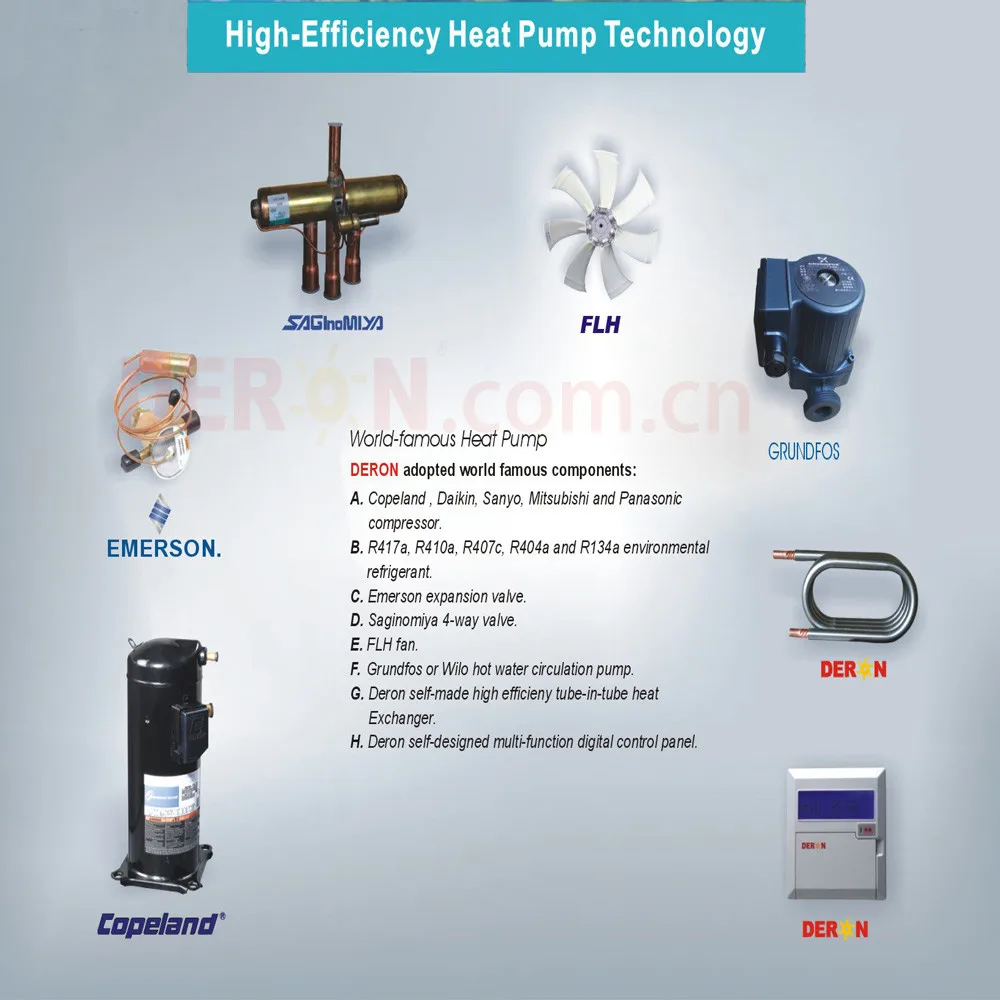

World famous Heat Pump

DERON adopted world famous components:

A. Copeland, Daikin, Sanyo, Mitsubishi and Pannasonic compresso.

B. R417a, R410a, R407c, R404a and R134a environmental refigerant.

C. Emerson expansion valve.

D. Saginomiya 4-way valve.

E. FLH fan.

F. Grundfos or Wilo hot water circulation pump.

G. Deron self-made high efficieny tube in tube heat exchanger.

H. Deron self-designed multi function digitial control panel.

** EVI Low Ambient Air Water Heat Pump DE-27W/CW, DE-46W/CW, efficient in -25 degree area:

Model		DE-27W/CW	DE-46W/CW
Power supply	V/Ph/Hz	380/3/50	380/3/50
1)Heating capacity	kW	12	20
	BTU	40944	68240
Rated power input	kW	2.7	4.6
2)Heating capacity	kW	10.3	16.5
	BTU	35144	56298
Rated power input	kW	2.6	4.2
3)Heating capacity	kW	9.1	14.4
	BTU	31049	49133
Rated power input	kW	2.6	4.15
4)Heating capacity	kW	6.6	10.2
	BTU	22519	34802
Rated power input	kW	2.5	3.8
Refrigerant		R407C	R407C
Compressor	Type	Scroll	Scroll
Fan	Qty	1	1
Required water flow rate	m3/h	2.2	4
Water connection		G1"	G1"
Max. current	A	7.5	13
Noise	dB (A)	≤60	≤64
Max. water temp.	℃	60	60
Operation temp. range	℃	-25-45	-25-45
Net weight	kg	130	270
Net size(L/W/H)	mm	820×500×1480	1130×500×1650
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃;
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃;
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃;
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃;

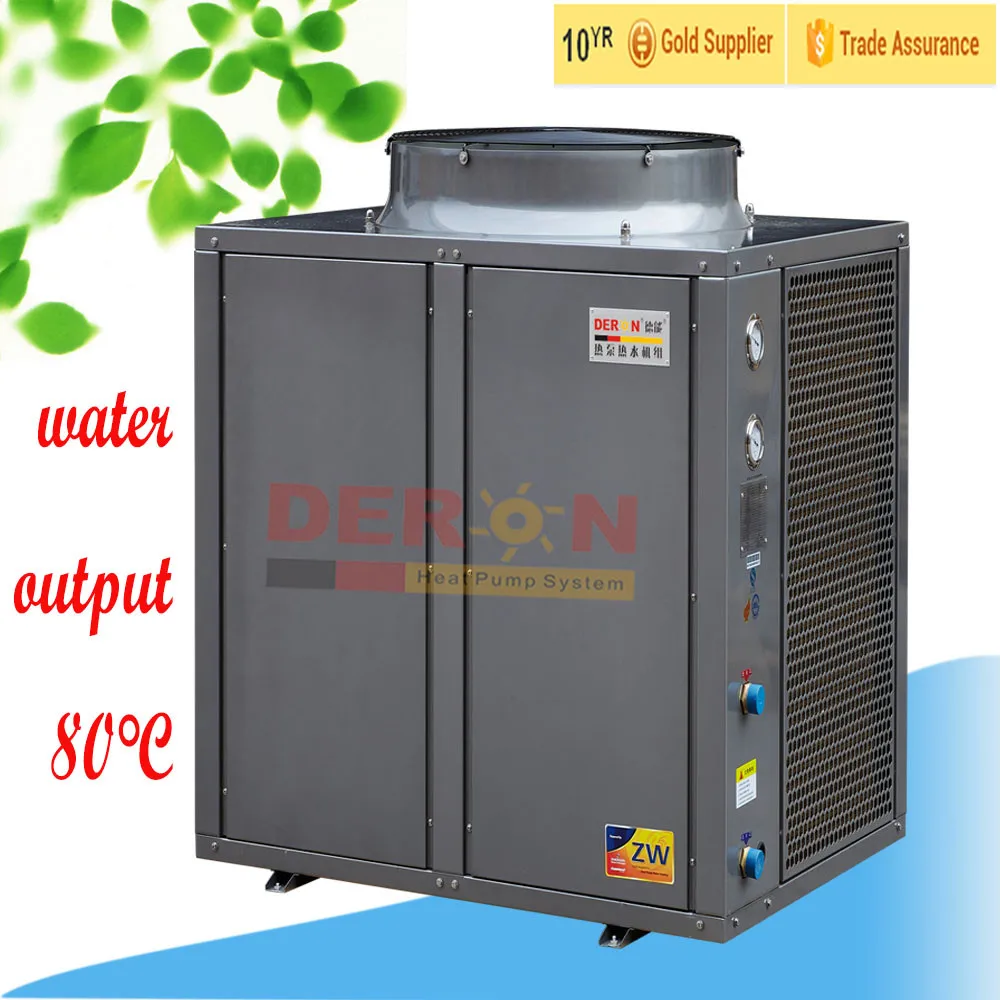

**High temperature Air Source heat pump water heater DE-92W/DG:

Model		DE-92W/DG
Power supply	V/Ph/Hz	380/3/50
Heating capacity	kW	26
Heating capacity	BTU	88712
Rated power input	kW	9.2
Water feed speed	L/h	370
Refrigerant		R134A
Compressor	Type	Scroll
Fan	Qty	1
Required water flow rate	m3/h	8
Water connection		G1-1/4"
Required tank cubage	t	7-10
Max. current	A	25
Noise	dB (A)	≤65
Level again electric shock		I
Water proof		IP×4
Max. water temp.	℃	80
Operation temp. range	℃	-10-45
Net weight	kg	320
Net size(L/W/H)	mm	1200×970×1425
Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/80℃;
Above information just for your reference, Please subject to the nameplate on the unit

**High efficient Heat Pump Dryer Dehydrator DE-46W/DKW:

Model			DE-46W/DKW
Power supply		V/Ph/Hz	380/3/50
Heating capacity		kW	14
Heating capacity		BTU	47768
Power input		kW	6.5
Air volume		m3/h	8000
Refrigerant			R134A
Compressor		Type	Scroll
Max. current		A	21.5
Noise		dB (A)	≤64
Level again electric shock			I
Water proof			IP×4
Max. air outlet temp.		℃	75
Operation ambient temp. range		℃	-10-45
Indoor unit	quantity		1
	Net weight	kg	100
	Net size(L/W/H)	mm	800×820×755
Outdoor unit	quantity		1
	Net weight	kg	175
	Net size(L/W/H)	mm	800×8001150
Ambient temp.(DB/WB): 20℃ /15℃ and Air temp.(in /out): 15℃/75℃;
Above information just for your reference, Please subject to the nameplate on the unit

**Water to water heat pump DE-46W/S:

Model		DE-46W/S
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	20
1)Heating capacity	BTU	68240
Rated power input	kW	4.6
2)Heating capacity	kW	18.5
2)Heating capacity	BTU	63122
Rated power input	kW	3.7
3)Cooling capacity	kW	15
3)Cooling capacity	BTU	51180
Rated power input	kW	3.6
Refrigerant		R410A
Compressor	Type	Scroll
Required hot water flow rate	m3/h	4
Required water source flow rate	m3/h	3.2
water connection		G1"
Noise	dB(A)	≤42
Max. current	A	13
Max. water output temp.	℃	60
Water source temp. range	℃	5~35
Net weight	kg	120
Net size(L/W/H)	mm	700×620×850
1)Heating by Water Source temp.(In/Out):15℃ /7℃ and Water temp. (In/Out):15℃/55℃;
2)Heating by Water Source temp.(In/Out):10℃ /7℃ and Water temp. (In/Out):30℃/35℃;
3)Cooling by Water Source temp.(In/Out):25℃ /30℃ and Water temp. (In/Out):12℃/7℃;

Note: want get more top sell heat pumps models, tell us!

Factory scenes

Installation scenes

Company Information

Deron is a national key heat pump enterprise in Guangzhou, China. We devote to researching and producing high quality heat pump products. Our products work to provide space heating, space cooling or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.

Deron has introduced advance producing and testing equipments from Italy, Japan, USA and Germany. Such as 3 CNC lines, 3 bending lines, 2 welding lines, 3 automatic production lines and 3 TUV certificated laboratories, which is able to test the heat pump under EN14511 standard. Moreover, the laboratories are able to simulate the ambient temperature down to -30℃ for testing the air to water heat pump under different conditions. And meanwhile able to test the geothermal heat pump at different water source or brine source.

Deron heat pumps have been verified by ISO9001 quality system. Most of the heat pump products have gained CE, CB,EMC, RoHS, CCC, SABS certificates,and STANDARDSMARK LICENCE and WATERMARK issued by SAI Global Australia.

Deron is regarded as “ Chinese Top Ten Heat Pump Water Heater Brands” and have established cooperation partnership with Emerson USA.

Deron heat pumps have been exporting to most of the countries in the world, such as Finland, Russia, Denmark, England, Germany, Poland, France, Spain, Italy, Turkey, Israel, South Africa, Indonesia, Thailand, Malaysia, Philippines, Taiwan, Canada, Chile and ect.

Deron will strive to exceed expectations and boost the enterprise of energy conservation and environment protection as we insist all the time.

Deron heat pump R&D center mainly comprises a passionate R&D team of 28 technicians and 3 advanced laboratories. The labs have imported sophisticated equipment from Italy, USA and so on by investing more than USD1.6 million and approved by TUV for cooperating according to EN14511 standards. They make it possible to test EVI air to water heat pump even in -25℃ low ambient area, and applied to test air source heat pump and water/ground source heat pump. Deron R&D center provide a strong assurance for heat pump search and application.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
