auto duct line------auto duct line 5

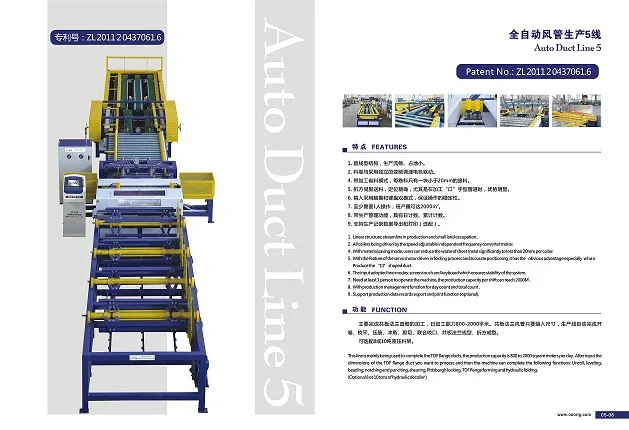

Features:

* Linear structure reduces sheets transferring time and improve production efficiency.

* The material frame is controlled by the speed adjustable converter motor

* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness

* with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.

* with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.

* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.

* require only one person to operate the machine, two persons can take away the ducts.

* The speed of each part can be adjusted as needed.

* A processing counting function for statistics and management with day count and total count.

* support print function for production management.

Function:

This line is mainly for producing the square ducts with TDF flange, the processing capacity is more than 1000 square meters per day. after input the dimensions of the TDF flange ducts you want to process, then the machine can complete the following functions: uncoiling, leveling, beading, notching and punching, shearing, Pittsburgh locking, TDF flange forming and Hydraulic folding.

Optional material auto selecting system.

Basic Configurations:

* A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)

* Optional 8tons or 10 tons of hydraulic material frame

* A material supporting frame

* A main machine

* A manipulator for material clutch, transferring and positioning platform.

* A movable high-speed Pittsburgh lock forming machine

* A Duplex TDF flange forming machine

* A servo-motor driven material feeding platform

* A TDF Hydraulic folding machine

* A CNC system and a set of production software

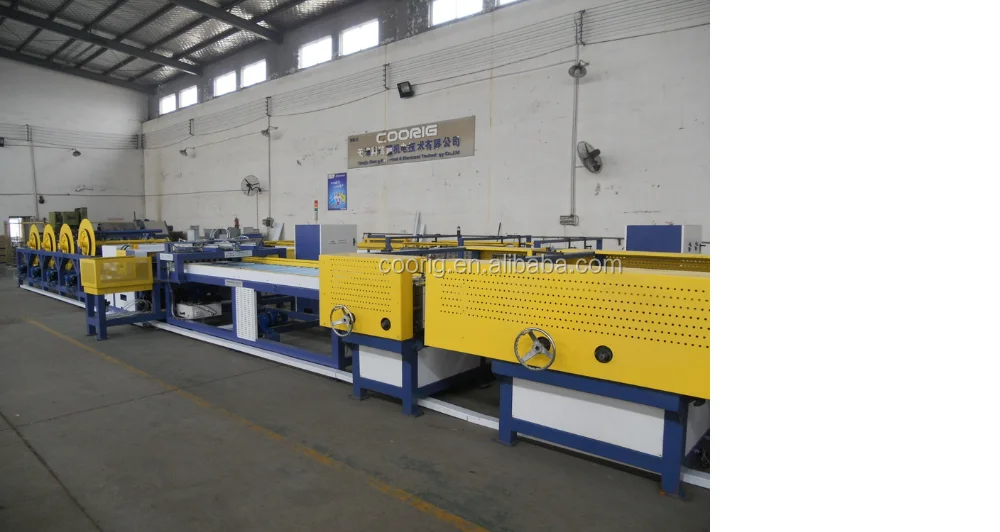

Appearance of the machine:
