Brand Name: Kimay
Model Number: 13YB
Place of Origin: Anhui, China (Mainland)
13SB air cooling cold storage Room for deli cooked foods, fresh meat, cold fried & hot dish; fresh keeping preserving commercial multideck display showcase cabinet freezer chiller for steamed bun bread, ice porridge and hot pot; refrigerating fridge showcase refrigerator cooler with transparent glass door.

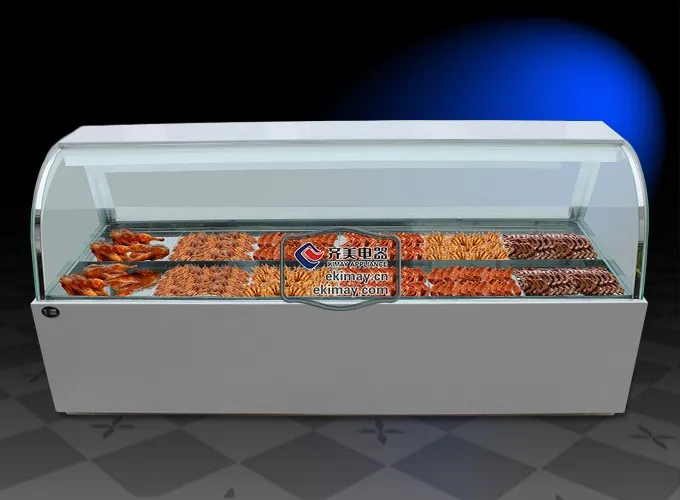

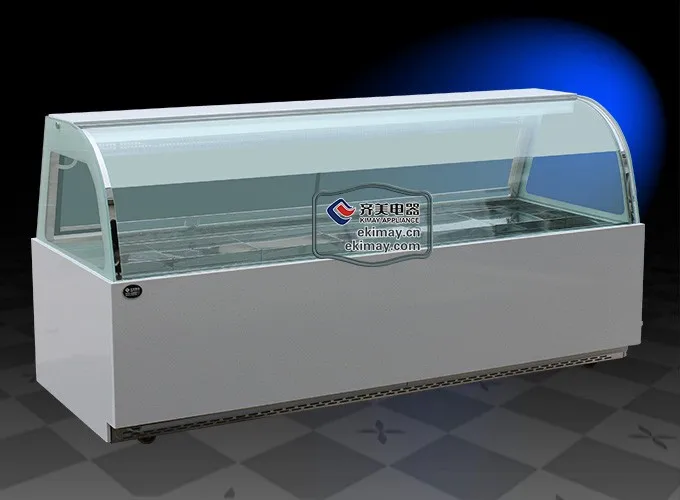

1. Pictures
2. Detail information
1) The compressor brand we use is Damfoss; Other refrigeration and electrical components are all
famous brands which have long service life and good performance. The circuit is designed to have
the function of power delay on the compressor, thus ensuring the normal operation and the service
life of the showcase;
2) Air duct design are of up and down circulation and internal circulation,
guaranteeing the uniform distribution of air conditioning; 2 layers’ panels are set at the air outlet
position, to ensure rapid cooling and cold air would not blow outside, therefore, the temperature
inside the showcase is stabilized. Besides, the showcase is equipped with microcomputer
thermostat, making cabinet’s temperature control more accurate
3) The showcase with compressor built in is mobile and convenient, and could be used immediately when powered with electricity; The showcase with compressor installed outside has smaller interior noise and good heat dissipation, therefore, it’s more suitable for the operating environment of large spaces;
4) The deli cabinet’s interior lighting adopts warm light LED which covers all the exhibition spaces;
Internal layer board uses the food grade stainless steel which is hygiene, non-toxic, harmless, and could contact with food directly; Layer board’s surface treatment is of high
precision mirror which is bright and tidy. The internal layer board ( of food grade stainless steel
material) and the warm LED light contribute to excellent showing effects
5) We have 3 designs on the open doors: former flip door, front door and back door. All the above
3 designs make taking and putting of all kinds of cold and hot cooked food very convenient.
Front cover of the arc glass are two layers’ toughened hollow glass, and is equipped with
heating wire for demisting; The back of the cabinet is equipped with a pull-out night curtain, making run time at night more energy saving.
3. Product Datasheet
MODULE | DIMENSION(L×W×H)mm | POWER | N.T Weight | TEMP |
15HT-1.5M | 1500×800×1650 | 600 | 150kg | 2~10℃ |
15HT-1.8M | 1800×800×1650 | 800 | 200kg | 2~10℃ |
15HT-2.0M | 2000×800×1650 | 960 | 230kg | 2~10℃ |
4.Our factory
