Brand Name: Kimay
Model Number: Display cooler series
Place of Origin: Anhui, China (Mainland)
09FE cold storage Room for hanging fresh and precious meat ;
fresh keeping commercialfreezer chiller; refrigerating fridge display showcase refrigerator cooler

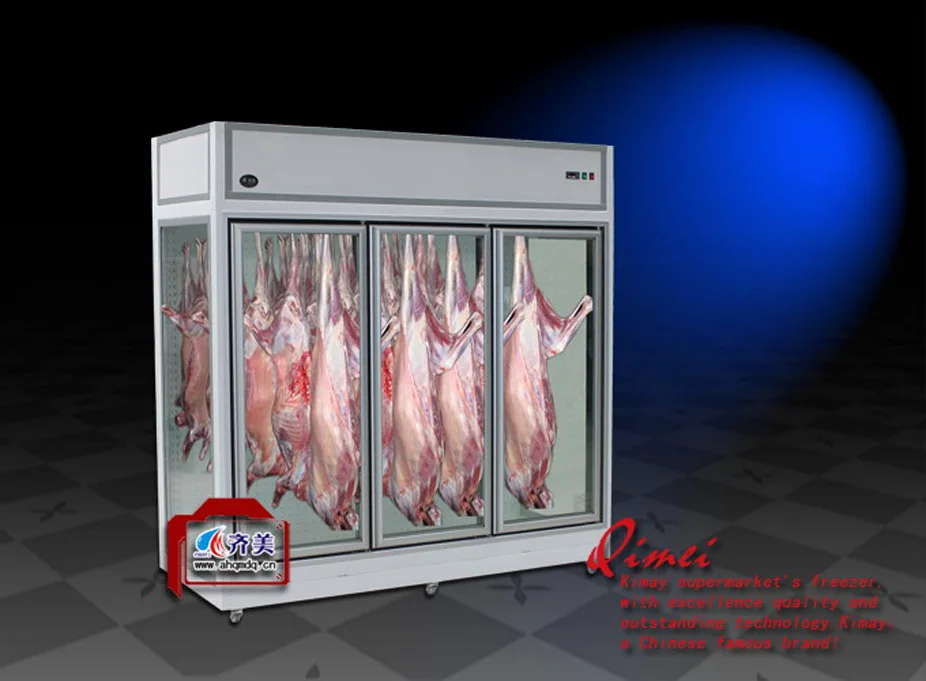

1. Product Pictures
2. Detailed Description
1) The compressor brand we use is Embraco; Other refrigeration and electrical components are all
famous brands which have long service life and good performance. The circuit is designed to have
the function of power delay on the compressor, thus ensuring the normal operation and the service
life of the showcase;
2) Air duct design are of up and down circulation and internal circulation, guaranteeing the uniform
distribution of air conditioning; 2 layers’ panels are set at the air outlet position, to ensure rapid
cooling and cold air would not blow outside, therefore, the temperature inside the showcase
is stabilized. Besides, the showcase is equipped with microcomputer thermostat, making cabinet’s
temperature control more accurate;
3) The showcase with compressor built-in is mobile and convenient, and could be used immediately when powered with electricity; The showcase with compressor installed outside has smaller interior noise and good heat dissipation,
therefore, it’s more suitable for the operating environment of large spaces;
4) The fresh meat cabinet’s interior lighting adopts warm light LED which covers all the exhibition
spaces and has excellent showing effects. Moreover, it’s equipped with night curtain, making run timeat night more energy saving
5) Internal layer board uses the food grade stainless steel which is hygiene, non-toxic, harmless, and could contact with food directly; Layer board’s surface treatment is of high
precision mirror which is bright and tidy, and showing effect is excellent
3. Product Datasheet
Item | Type | External Dimension(L×W×H)mm | Volume(L) | Cooling mode/Refrigrent | Power | Power Supply | Temperature(℃) | Compressor |
1315×820×2090 | 1000 | Ventilated/R22 | 500W | 220V/50HZ | 2~+10 | Danfoss sc15 | ||
1921×820×2090 | 1500 | Ventilated/R22 | 735W | 220V/50HZ | 2~+10 | DanfossSC18 | ||
2527×820×2090 | 2000 | Ventilated/R22 | 1470W | 220V/50HZ | 2~+10 | Bluesea 30 | ||
3133×820×2090 | 2500 | Ventilated/R22 | 1837W | 220V/50HZ | 2~+10 | B |
4. Our Workshop
