Brand Name: XINYE
Model Number: SSD-150
Place of Origin: Zhejiang, China (Mainland)

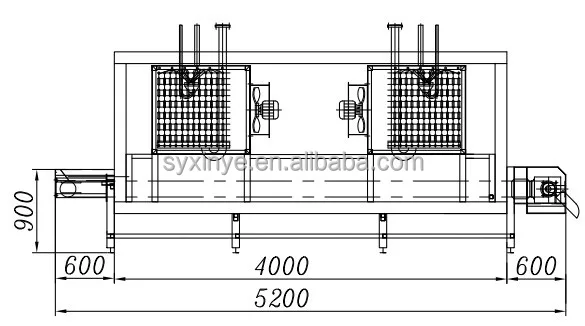

♦ Frozen Strawberry Quick Freezing Line/Fruit Tunnel Freezing Process line
Fludization freezer freezes products by vibration and air pressure which make producrs float on the stainless steel belt and avoid sticking.
| (item(model) | SlD-500 | SlD -1000 | SlD -1500 | SlD -2000 | SlD -3000 | SlD -4000 |
| lima-bean,haricot | 500 | 1000 | 1500 | 2000 | 3000 | 4000 |
| refrigeration capacity(KW/H) | 103 | 165 | 252 | 323 | 465 | 603 |
| freezer room size(M) | 5.0×4.1×3.7 | 6.0×4.1×3.7 | 8.0×4.1× 3.7 | 9.0×4.1×3.7 | 12.5×4.1×3.7 | 15.0×4.1×3.7 |
| exterior size(M) | 7.3×4.1×3.8 | 8.3×4.1×3.8 | 10.3×4.1×3.8 | 11.3×4.1×3.8 | 14.8×4.1×3.8 | 17.3×4.1×3.8 |
| power(KW) | 37 | 50 | 62 | 74 | 98 | 122 |
in feed temperature(°C) |
+15
-18
-352
5-20 |
|||||
| out feed temperature(°C) | ||||||
inner circulation temperature(°C) |
||||||
| frozen time(MIN) | ||||||
| refrigerant | r717ORr212 | |||||
♦Main features:
♥SS centrifugal fans ensure the air volum and air pressure.
♥Large area alumium alloy evaporator, adjustable fin pictch, prolong defrosting time.
♥The inlet frame is equipped with washing and drying device.
♥Automatical control system. Stepless speed adjustment by inventer.
♥All inside spare parts are stainless steel material ad good for cleaning and maintaining
♦certificate
♦Advantages:
♥Comparing with conventional freezing way, it shortents the freezing time
♥It freezes unfiformly and reduces loss of moisture
♥Stable quality, lower energy consuption and improve produce yied.
♥Simple structure, easy for cleaning which meet sanitary requirements. Less installation space is needed.
Located in Shangyu city, China, founded in 1995, Shangyu Xinye Foodstuff Machinery Co., Ltd. is a professional food machinery manufacturer with a registered capital of RMB10 million. We passed the evaluation of ISO9001:2000 certification in 2002. Our company has more than 200 employees. Our main products are quick-freezing equipment, pretreatment processing lines , drying machines, air coolers, evaporation condensers, ect. We design, produce and install all kinds of refrigerators. Our equipment is widely used for quick-freezing, deep processing of aquatic products, fruits & vegetables, poultry products, prepared food ect. Owing to all Xinye people's efforts, our fine quality and perfect after-sales service have gained customers' approvals. To keep high quality of all equipment, we have set up extensive relationships with many famous researching institutes in China. We have a strong service team at high technological level. Our products have already formed a mature market in China and are also exported to Vietnam, South Korea, Japan, Russia and Pakistan ect. We are willing to set up good business relationships with customers from all around the world. You are warmly welcomed to contact us.
1,Client effect balance payment before shipment
2.Supplier send original documents or telex release the goods
3,Quality warranty for 1 year after install the machines
1.Capacity: our machines are custome-made, the capacity depend on customer's request. different capacity different machine size.
2.Material: Make of Stainless steel 304,except motor ,bearing,and some metal parts.
3.Prepare parts:We'll supply some easy broken parts for all machines.
4.Voltage: As custoemers local voltage, customer should tell us before processing machines.
5.After sale: we'll help install and testing the machines,then we'll teach customer to operate the machines and repair them.
if have big problem ,we'll send engineer to customer side.
6.Service:All machines take lifetime service.
