Xinye New Design High-efficiency Evaproative Condenser

FOB Price:

US 20,000-30,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5 Set/Sets per Month

Port:

Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Wuye

Products Model:

Custome Made

Products Details
Company Profile

Quick Details

Brand Name: Wuye

Model Number: Custome Made

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Box or Bare Machine
Delivery Detail: Shipped in 120 days after payment

Specifications

Product Description

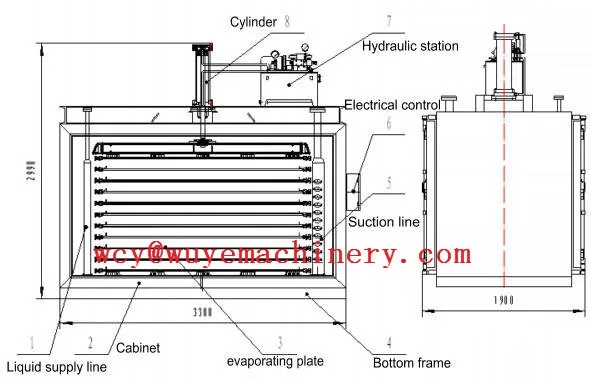

Shelf Smei-contact Plate Freezer In China/IQF Plate Freezer

♣Plate Freezer Main parameters
1, Digital temperature display(PLC/touch screen control panel)
2, Hydraulic system to lift and press the freezing plates
3, plates are corrosion resistant, polyurethane foam insulation
4, stainless steel insulated boards and doors.
5, cabinet is made up of heavy-duty structural frame, polyurathane insulation and stainless steel sheet cladding. Leak proof and folding doors at the back.
6, Frozen time:3-5hr/load
7, Freezing temp.:-28C(+/-2)
8, Refrigerant:R22(Freon), water deforsting
9, Compressor: Bitzer

Capacity	Kg/shift	500	800	1000	1500
Outer Diameter(cylinder not included)	Length(m)	3.71	4.15	4.52	4.85
	Width(m)	1.7m
	Height(m)	1.8	2.06	2.06	2.32
_Plate	Length(m)	1.36	1.8	2.17	2.5
	Width (m)	1.26m
	Size of the tray (mm)	600(length)*400(width)
	Volum of the tray	10kg/plate
Space between two plates	Fold space	58mm
Space between two plates	Unfold space	108mm
Usable layers		8	10	10	12
Cold consumption(kw/h)		20	23	25	24
Power(kw)		19	22	23.5	31
Frozen time		3-5hrs/load

♣ Plate Freezer Main feature:

1, Refrigeration system is built to a compartment beneath the freezing cabinet. It's ideal for small
capacity freezing.
2, Air cooling or water cooling compressors are optional.
3, Doors opened on the front and rear enalbe access. Easy installed and moved
4, Unitform blocks and even pressure between aluminum plates.
5, Adopt high efficient compressor,well-insulated panels and hygeian extrusion plates.

Packing & Delivery

Our Service

Pre-Sales Service

* introduction for our product.

* Support the picture and Good quote.

* View our Factory.

After-Sales Service

* Arrange how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Company Introduction

Shangyu Xinye Foodstuff Machinery CO., Ltd. is a professional food machinery manufacturer, which located in Shangyu State, Shaoxing City, Zhejiang Province, China. It had founded in 1995 with a registered capital of 10Million RMB.We passed the evaluation of ISO9001:2001 certification in 2002.Our main Products are quick-freezing equipment, pretreatment processing lines, drying machines, air coolers, evaporation condensers,ect.We design, produce and install all kinds of all kinds of refrogerators.

Woking Condition

Certifications

FAQ

1.Capacity: our machines are custome-made, the capacity depend on customer's request. different capacity different machine size.
2.Material: Make of Stainless steel 304,except motor ,bearing,and some metal parts.
3.Prepare parts:We'll supply some easy broken parts for all machines.
4.Voltage: As custoemers local voltage, customer should tell us before processing machines.
5.After sale: we'll help install and testing the machines,then we'll teach customer to operate the machines and repair them.if have big problem ,we'll send engineer to customer side.
6.Service:All machines take lifetime service.
