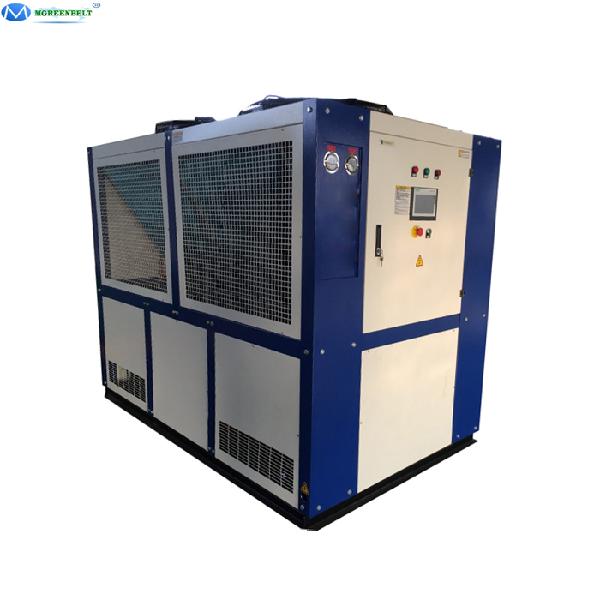

Industrial Air Cooled Screw Hanbell Water Chiller Electroplating Industry Chiller

Industrial Air Cooled Screw Hanbell Water Chiller Electroplating Industry Chiller

FOB Price:

USD 8000-15000 / Set

Min.Order Quantity:

1 Unit

Supply Ability:

300 Twenty-Foot Container per Month

Port:

Qingdao,Ningbo,Shanghai,Guangzhou

Place of Origin:

China (Mainland)

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Brand:

MGREENBELT Screw hanbell chiller

Products Model:

MG-40CS Screw hanbell chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT Screw hanbell chiller

Model Number: MG-40CS Screw hanbell chiller

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: Plywooden case
Delivery Detail: Within 20 days

Specifications

Industrial Air Cooled Screw Hanbell Water Chiller Electroplating Industry Chiller

Professional water chiller solution provider since 2003!

Product Description

---Feature Of Screw hanbell chiller---

1. Screw hanbell chiller Details

Cooling capacity:205kw( 50ton)
R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know
Our air cooled chillers can be made for single system, or twin system 1tr to 145tr cooling capacity for different customers' requirements, the air cooled chiller with the air fans for cooling, they are easy to install and operate, there is no need for a cooling tower.
We are industrial chillers manufacturer, but we also welcome OEM.

---Technical Details Of Screw hanbell chiller---

Model		MG-40CS	MG-80C
Cooling capacity	USRT	31	58.3
	Kcal/h	93740	176300
	KW	109	205
Power supply		3Ph-380V-50HZ
Refrigerant	Type	R134a/r407c/R410a/R22
	Controler	Thermostatic expansion valve
Compressor	Type	Semi-hermetic screw
	Power(kw)	38	68
	Start	Y
	Capacity control	25%-50%-75%-100%
Evaporator	Type	Shell and tube
	Water flow(m³/h)	26	35
	Dia.of inlet/outlet(inch)	DN65	DN80
Condenser	Type	Inner screw copper tube aluminum plate fins
	Air cooling flow(m³/h)	40000	80000
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	3200	3300
	W	1450	2300
	H	2150	2400
Weight(kg)		1900	3200

---Technical Specification Of Screw hanbell chiller---

2.Technical Details

This series machines are widely used in electroplating, plastic, metal, chemical, electronics, food preservation, laser engraving, vacuum coating, ultrasonic cleaning, high frequency and other industries.
Adopt high-quality, new design scroll compressor, high performance, mute, power and durability.
Equipped with sophisticated electronic circuitry, its temperature precision controlled within ±1℃, just start inching power switch to the desired temperature can operate automatically when the system into acid, cooling water drying up, blower protection, pump protection, phase sequence protection, compressor protection, when protection, frost.
All of the air cooled chiller price components adopt the imported brand, all of the pasrt from original supplier directly, such as BITZER, COPELAND, DANFOSS, SCHNEIDER and etc.

---Screw hanbell chillerDetailed Picture---

Screw hanbell chiller Compressor

Screw hanbell chiller fan

More details of Screw hanbell chiller

Blower Chiller

Packaging & Shipping

---Industrial Screw hanbell chiller---

Blower Chiller

1. Plywooden case package

2. Shipping terms

We can arrange the shipping by sea, by air, by trauck and train based on each clients requirements, bu kindly remind the refrigerant gas is can't be allowed by air, so you much filling them when machine arrive if you choose the air ship.
FOB, CNF, CIF, DDU can be accept.
Any port of China we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.

Our Services

---China Top 1 after sales service of Screw hanbell chiller Service Industry Cooling---

1.Free repair and free parts supply within 14 months of guarantee on the condition of operate the machine in the right way.
2.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
3.We can provide engineers to customer's factory to help installation and training workers if customer required.
4.We offer OEM and Customersize based on clients market need.

Company Information

---Workshop of Screw hanbell chiller---

Shandong Mgreenbelt Machinery Co.,Ltd was established in 2003.The Production factory located in economic and technological development zone of Pingyuan, Dezhou, Shandong, China. Which covers an area of 34000 square meter, mainly devoted to the development research and production of refrigeration industrial chiller, ice water chiller, etc.

---About us---

Customer site

Our customer

FAQ

Blower Chiller

1. Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or other terms
2. Delivery Detail:
About 15 workdays after payments.
3.Pacage Terms:
International Standard Wooden Case for Export

Pls kindly offer the following information:

1.Cooling capacity
2.Inlet /outlet water temperature
3.Chiller water flow rate
4.Retrigreant
5.Voltage/Frquency
---Contact us---

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
