30TR To 200TR 0C 5C High Efficiency Water Chiller For Food Service Industry Cooling

30TR To 200TR 0C 5C High Efficiency Water Chiller For Food Service Industry Cooling

FOB Price:
Min.Order Quantity:
10 Pieces
Port:
--
Place of Origin:
China (Mainland)
Payment Terms:
--
Brand:
MGREENBELT chiller
Products Model:
MG-40CS chiller
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: MGREENBELT chiller

    Model Number: MG-40CS chiller

    Place of Origin: China (Mainland)

Specifications

30TR To 200TR 0C 5C High Efficiency Water Chiller For Food Service Industry Cooling

Professional water chiller solution provider since 2003!

Product Description

---Feature Of Water Chiller For Food Service Industry Cooling---

1. Water Chiller For Food Service Industry Cooling Details
  • Cooling capacity:205kw( 50ton)
  • R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know
  • Our air cooled chillers can be made for single system, or twin system 1tr to 145tr cooling capacity for different customers' requirements, the air cooled chiller with the air fans for cooling, they are easy to install and operate, there is no need for a cooling tower.
  • We are industrial chillers manufacturer, but we also welcome OEM.

---Technical Details Of Water Chiller For Food Service Industry Cooling---

Model MG-40CS MG-80C
Cooling capacity USRT 31 58.3
Kcal/h 93740 176300
KW 109 205
Power supply  3Ph-380V-50HZ
Refrigerant Type R134a/r407c/R410a/R22
Controler Thermostatic expansion valve
Compressor Type Semi-hermetic screw
Power(kw) 38 68
Start Y
Capacity control 25%-50%-75%-100%
Evaporator Type Shell and tube
Water flow(m³/h) 26 35
Dia.of inlet/outlet(inch) DN65 DN80
Condenser  Type  Inner screw copper tube aluminum plate fins
Air cooling flow(m³/h) 40000 80000
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension L 3200 3300
W 1450 2300
H 2150 2400
Weight(kg) 1900 3200



---Technical Specification Of Water Chiller For Food Service Industry Cooling---

2.Technical Details
  • This series machines are widely used in electroplating, plastic, metal, chemical, electronics, food preservation, laser engraving, vacuum coating, ultrasonic cleaning, high frequency and other industries.
  • Adopt high-quality, new design scroll compressor, high performance, mute, power and durability.
  • Equipped with sophisticated electronic circuitry, its temperature precision controlled within ±1℃, just start inching power switch to the desired temperature can operate automatically when the system into acid, cooling water drying up, blower protection, pump protection, phase sequence protection, compressor protection, when protection, frost.
  • All of the air cooled chiller price components adopt the imported brand, all of the pasrt from original supplier directly, such as BITZER, COPELAND, DANFOSS, SCHNEIDER and etc.

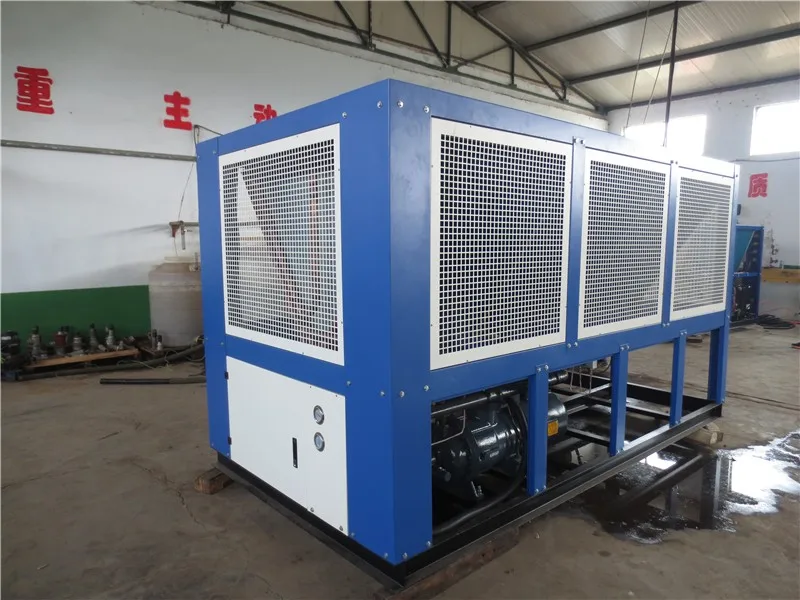

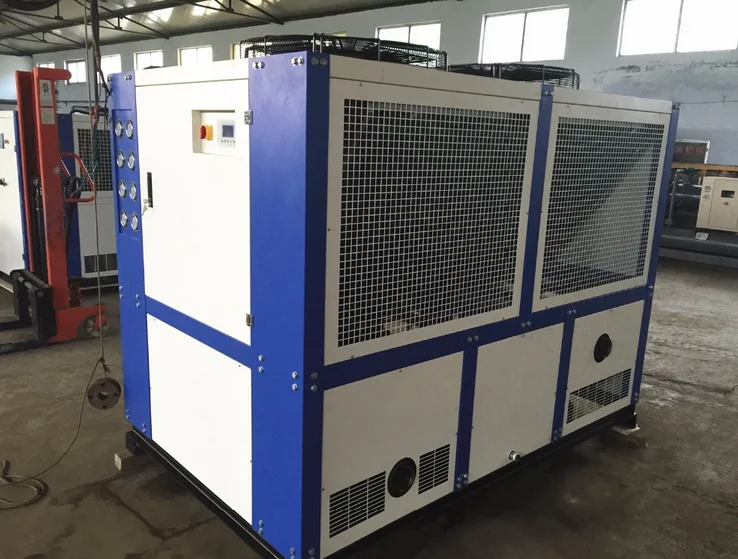

---Water Chiller For Food Service Industry Cooling Detailed Picture---

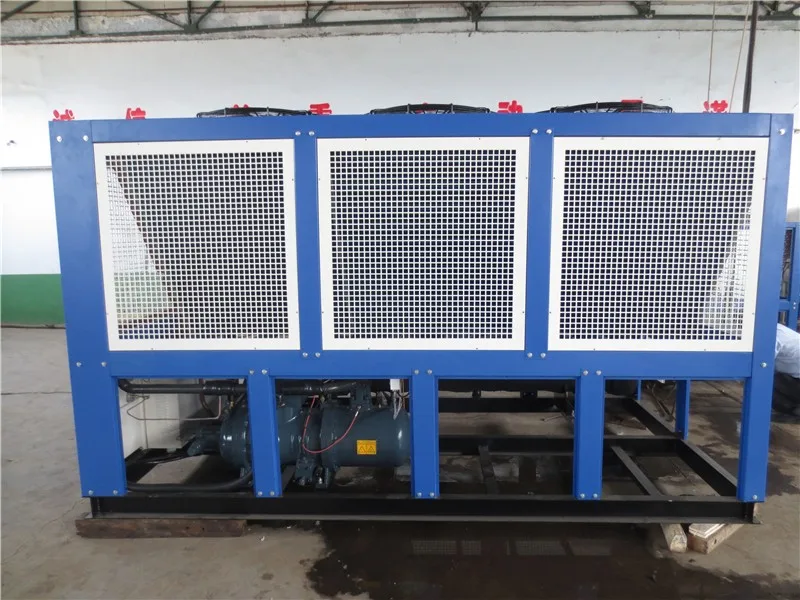

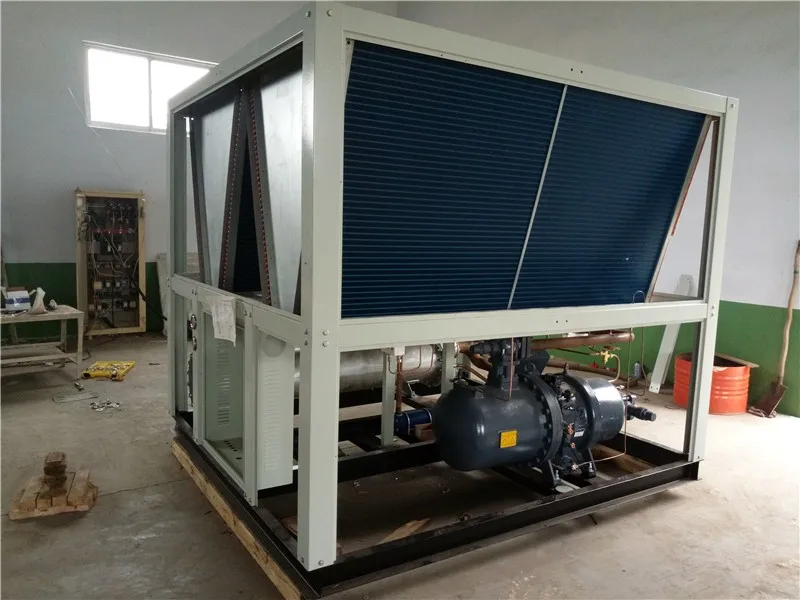

  • Water Chiller For Food Service Industry Cooling Compressor
  • Water Chiller For Food Service Industry Cooling fan

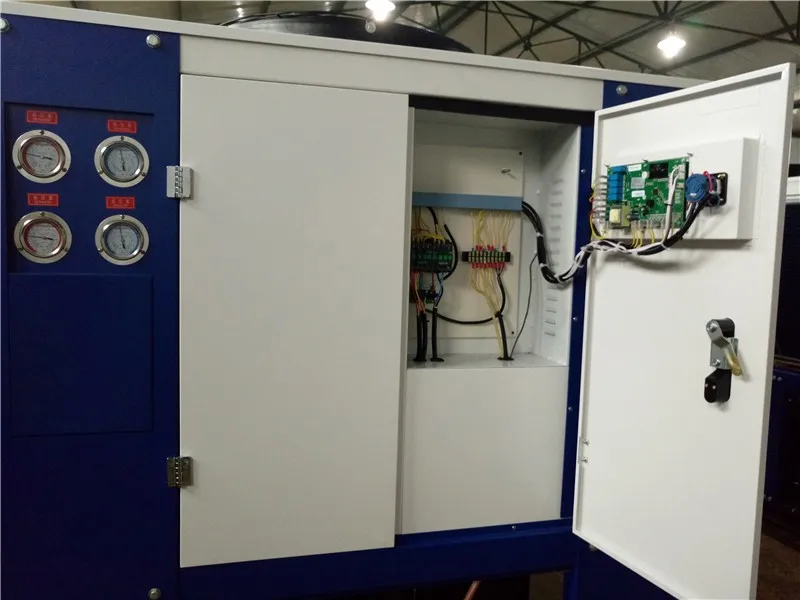

  • More details of Industrial Air Cooled Water Chiller For Food Service Industry Cooling



Packaging & Shipping

---Industrial Water Chiller For Food Service Industry Cooling Shipping---



1. Plywooden case package
2. Shipping terms
  • We can arrange the shipping by sea, by air, by trauck and train based on each clients requirements, bu kindly remind the refrigerant gas is can't be allowed by air, so you much filling them when machine arrive if you choose the air ship.
  • FOB, CNF, CIF, DDU can be accept.
  • Any port of China we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
Our Services

 ---China Top 1 after sales service of Industrial Water Chiller For Food Service Industry Cooling---

1.Free repair and free parts supply within 14 months of guarantee on the condition of operate the machine in the right way.
2.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
3.We can provide engineers to customer's factory to help installation and training workers if customer required.
4.We offer OEM and Customersize based on clients market need.
Company Information

 ---Workshop of Industrial Air Cooled Water Chiller For Food Service Industry Cooling---

Shandong Mgreenbelt Machinery Co.,Ltd was established in 2003.The Production factory located in economic and technological development zone of Pingyuan, Dezhou, Shandong, China. Which covers an area of 34000 square meter, mainly devoted to the development research and production of refrigeration industrial chiller, ice water chiller, etc.
