Brand Name: MGREENBELT chiller kcal
Model Number: MG-40CS chiller kcal
Place of Origin: China (Mainland)
Professional China Chiller Manufacturer Air Cooled Screw Chiller 10,000 kcal
Professional water chiller solution provider since 2003!
---Feature Of Chiller kcal---
1. Chiller kcal Details |
|
![]() |
---Technical Details Of Industrial Chiller kcal---
Model | MG-40CS | MG-80C | |
Cooling capacity | USRT | 31 | 58.3 |
Kcal/h | 93740 | 176300 | |
KW | 109 | 205 | |
Power supply | 3Ph-380V-50HZ | ||
Refrigerant | Type | R134a/r407c/R410a/R22 | |
Controler | Thermostatic expansion valve | ||

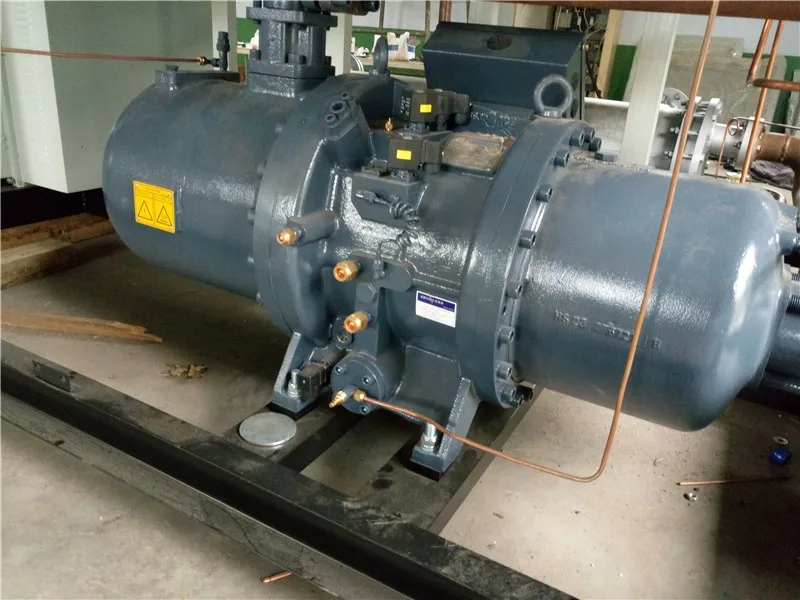

Compressor | Type | Semi-hermetic screw | |
Power(kw) | 38 | 68 | |
Start | Y | ||
Capacity control | 25%-50%-75%-100% | ||
Evaporator | Type | Shell and tube | |
Water flow(m³/h) | 26 | 35 | |
Dia.of inlet/outlet(inch) | DN65 | DN80 | |
Condenser | Type | Inner screw copper tube aluminum plate fins | |
Air cooling flow(m³/h) | 40000 | 80000 | |
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||
Dimension | L | 3200 | 3300 |
W | 1450 | 2300 | |
H | 2150 | 2400 | |
Weight(kg) | 1900 | 3200 |
---Technical Specification Of Chiller kcal---
2.Technical Details |
|
![]() |

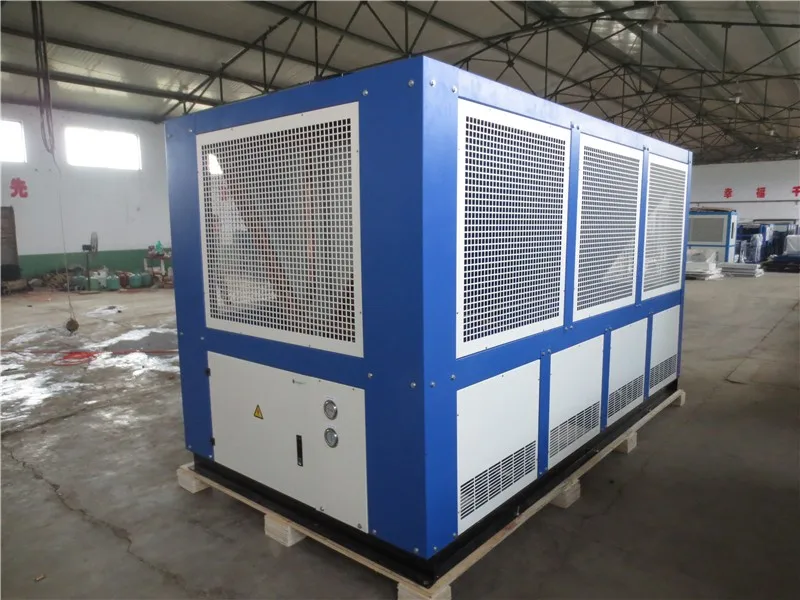

---Industrial Chiller kcal Detailed Picture---
|
![]() |
|
![]() |
|
|
---Industrial Air Cooled Chiller kcal Shipping---
1. Plywooden case package |
![]() |
2. Shipping terms |
|
---China Top 1 after sales service of Industrial Air Cooled Chiller kcal---
1.Free repair and free parts supply within 14 months of guarantee on the condition of operate the machine in the right way. 2.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings 3.We can provide engineers to customer's factory to help installation and training workers if customer required. 4.We offer OEM and Customersize based on clients market need. |
![]() |
---Workshop of Industrial Air Cooled Chiller kcal---
Shandong Mgreenbelt Machinery Co.,Ltd was established in 2003.The Production factory located in economic and technological development zone of Pingyuan, Dezhou, Shandong, China. Which covers an area of 34000 square meter, mainly devoted to the development research and production of refrigeration industrial chiller, ice water chiller, etc. |
![]() ![]() |
