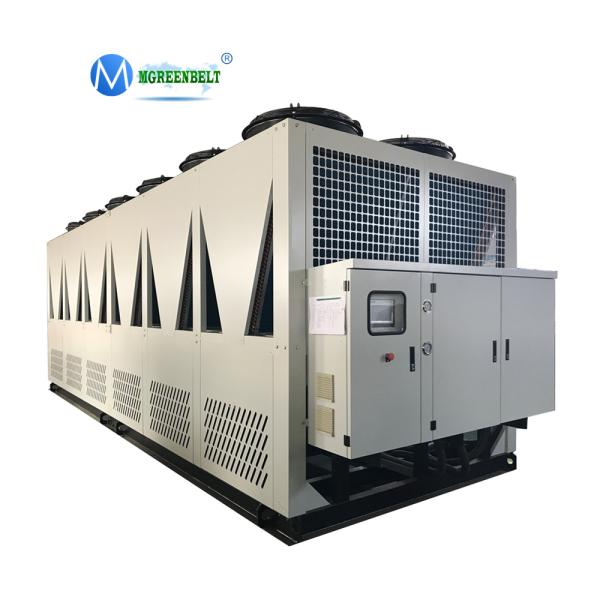

100 tons Argentina Screw Water Chiller Chilled water cooling system industrial chiller

100 tons Argentina Screw Water Chiller Chilled water cooling system industrial chiller

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Twenty-Foot Container

Supply Ability:

100 Twenty-Foot Container per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Brand:

MGREENBELT

Products Model:

MG-150CS, 100 RT Air Cooled water Chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-150CS, 100 RT Air Cooled water Chiller

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Hot sell water chiller with schneider brands in plywood case.
Delivery Detail: 20 Days

Specifications

100 tons Argentina Screw Water Chiller Chilled water cooling system industrial chiller

Production introduction

Mgreenbelt as the Air Cooled Water Chiller manufacturer, have gradually produced Industrial Chiller, Water Chiller, Screw Chiller, Air Cooler, Oil Chiller, Low-Temperature Chillers, Heat Pumps, and Central Air Conditioner which are widely applied to plastic & rubber machinery, daily-use chemical, textile, general machinery, laser machinery, LCD and PCB industry, electroplating, equipment of laboratory, food, pharmacy, etc.

Specification

Air Cooled Screw Chiller Normally Temperature Series( Single System)
Model		MG-80C	MG-110C	MG-140C	MG-155C	MG-200C	MG-260C	MG-300C	MG-400C	MG-470C
Cooling Capacity	USRT	22.2	31.0	40.4	43.5	57.7	72.2	86.7	114.6	132.5
	Kcal/h	67080	93740	122120	131580	174580	218440	262300	346580	400760
	KW	78	109	142	153	203	254	305	403	466
Power		3PH-380V-50Hz
Refrigerant	Type	R22/R407C
Refrigerant	Control	Thermostatic expansion valve
Comperssor	Type	semi-closed screw type
	kw Power	28	37	46	51	66	79	94	124	143
	Start
	Capacity	33%-66%-100%			25%-50%-75%-100%
Evaporator	Type	High-efficiency copper tube shell and tube type
	m³/h Flow	13	19	24	26	35	44	52	69	80
	Inlet/outlet	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN100
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	m³/h Flow	30000	40000	50000	60000	80000	100000	120000	160000	180000
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L(mm)	2700	2300	2300	3300	3900	3900	3850	4750	5850
	W(mm)	1120	1860	1860	2300	2010	2010	2200	2200	2200
	H(mm)	1800	1800	1800	2400	2000	2000	2350	2450	2450
wight	kg	1800	1900	2300	2480	3200	3800	3300	4000	5000

Product features

1.Water Chiller Industrial adopt the semi-hermetic screw compressor(like Habell, Bitzer), and operate credibility, high efficiency, easy to maintain, exact volume control, a wide range of application. The system adopts the latest asymmetric rotor profile. Build-in pressure drop lubricant to system with low vibrations, sound emissionshigh sealing performance.

2.Water Chiller Industrial human machine interface configures a full touch screen, which enables automatic control and accurate monitoring. The advantages of unit: water-proof,dust-proof, corrosion resistant, long life. Step or stepless capacity control, the unit ensure that it bring into the most energy-saving effective in any load conditions.

3.Water Chiller Industrial due to use heat copper tube and high efficiency compressor with high effective thermal expansion current-saving device, the unit will operate in stability, longer and effectively.

4.Water Chiller Industrial adopts a reliable safety protection device: to prevent compressor starting frequently, over-current protection, overheat of motor protection, prevent freezing, sight glass in liquid, oil heating protection, phase protection, HV/LV protection, discharge high-temperature protection, safety value, soluble clock, water shut-off protection, and so on.

Working Principle

250kw R134A/R407c Air Cooled Screw Type Chiller for Chemical / Steel Processing

Product show

User's site

Company introduction

Contact: Libra Zhang

Skype: libra5813

Wechat: +86 18769762328

WhatsApp: +86 18769762328

Email: chillercompressor@gmail.com

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
